Weight Limit: Bed: 450 Lb / 204 Kg
Drawer: 40 Lb / 18 Kg
KT. - 2019/11/4
4327429CLUK (Grey) 4457029CLUK (Black)

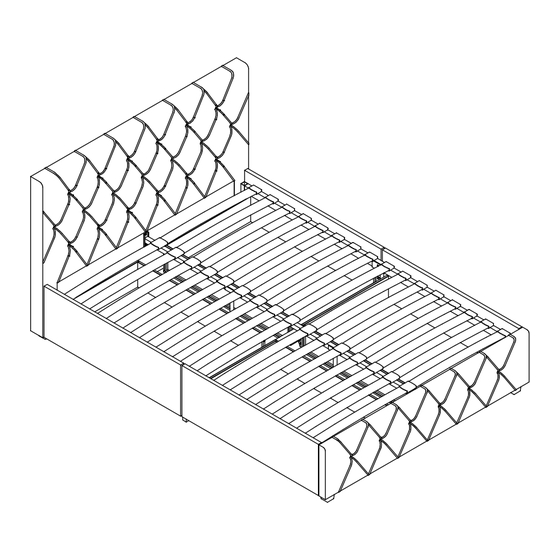

Upholstered Bed with Storage
Thank you for purchasing from Dorel UK!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Call 01942 524100
Date of Purchase
IMPORTANT - READ CAREFULLY - RETAIN FOR FUTURE REFERENCE
4458329CLUK (Ivory)
Double UK
Lot Number
B344327429CLUK00
1
Advertisement
Related Manuals for Cosmopolitan COSMOLiving 4327429CLUK
Summary of Contents for Cosmopolitan COSMOLiving 4327429CLUK

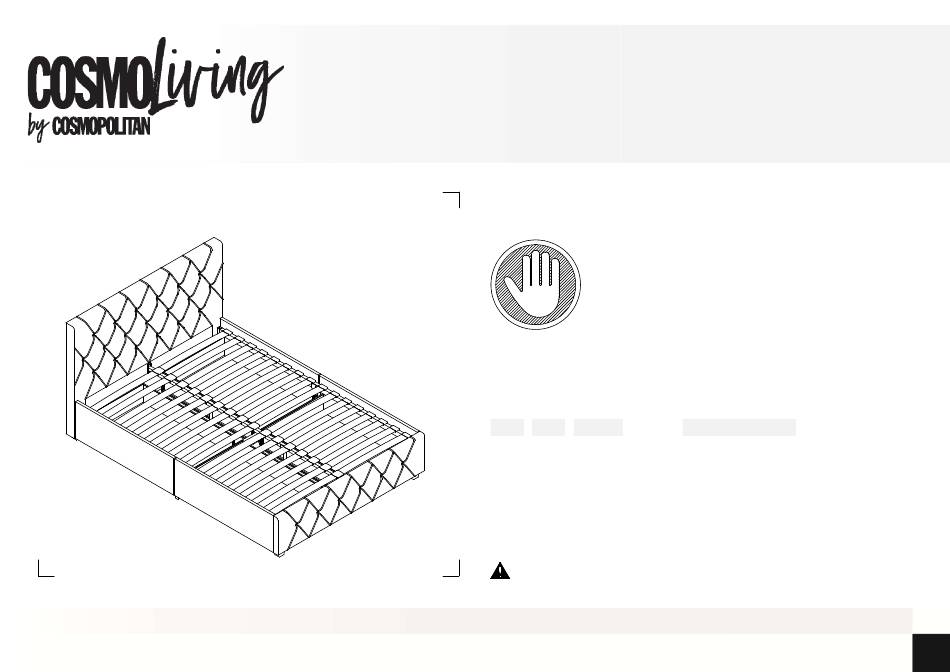

- Page 1 4327429CLUK (Grey) 4457029CLUK (Black) 4458329CLUK (Ivory) Upholstered Bed with Storage Double UK Weight Limit: Bed: 450 Lb / 204 Kg Thank you for purchasing from Dorel UK! Drawer: 40 Lb / 18 Kg DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge.
-
Page 2: Warranty Information
Warranty Information Read Before Beginning Assembly ● Call our toll free number if you need assistance. Dorel UK warrants this product to be free from defects in material and workmanship ● Work in a spacious area and near where the unit will be used, preferably on a and agrees to remedy any such defect. - Page 3 Parts Replacement Parts, Call 01942 524100 This item is packed in 2 boxes! All parts listed on this page are in Box 1. If Box 2 is missing please contact your Retailer. There are inner box(es) that include components required to complete this assembly. Drawer Bottom Panel Back Panel Support Rail...
- Page 4 Parts Replacement Parts, Call 01942 524100 This item is packed in 2 boxes! All parts listed on this page are in Box 2. If Box 1 is missing please contact your Retailer. There are inner box(es) that include components required to complete this assembly. Front Panel Side Rail Footboard...
- Page 5 Parts Replacement Parts, Call IMPORTANT: Below part numbers list is unique to your product. 01942 524100 Please keep it on hand when calling for replacement parts. Part Number 4327429CLUK (Grey) 4457032CLUK (Black) 4458329CLUK (Ivory) Part Label UK00031X UK00036X UK00039X T966250 T966250 T966250 UK00032X...
-
Page 6: Hardware Pack
Hardware Pack Hardware Pack #: UK4327429CLUK-00 1/4'' 1/4" X 3/4" 1/4" X 3/4" X 26 1/4" X 1 9/16" 5/16" X 1 3/4" 3/16 X 3/8" 3/16 X 7/8" X 24 3/16 X 1" X 56 Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions. - Page 7 Step 1 Stick A1 to the back of A with Velcro as illustrated.
- Page 8 Step 2 ❶ Attach H X 4 to A and B with ❺ Attach Z X 4 to A and B with Align the edge of Z with A and B as indicated!
- Page 9 Step 3 ❶ Attach J to E with Repeat the same procedure for remaining part J and E.
- Page 10 Step 4 ❶ Attach K X 2 to F with...
- Page 11 Step 5 ❹ Attach E to A and B with The slot indicated on E must be oriented towards outside of the bed.
- Page 12 Step 6 ❶ 6.1 Attach G to J x 2 with ❶ , then 6.2 Attach F to A and B with properly tighten all the bolts.
- Page 13 Step 7 7.1 Insert P into X, 7.2 Press X into E, repeat the same procedure for the opposite side of the bed with a new P and X . 7.3 Insert ends of both slats P into Y, then press Y into F as illustrated. Repeat the same procedures going backwards for every row of slats.
- Page 14 Step 8 ❼ Attach M to S and N with don't completely tighten the bolts until STEP 11 is complete. For better performance, please orient the plastic sheet S/M/N towards inside of the drawer. Make sure that these holes are all located on the top side before assembling.
- Page 15 Step 9 ❻ Attach Q to L with...
- Page 16 Step 10 ❽ Attach Q X 4 and L to S and N with ❼ Attach L to M with X 32...
- Page 17 Step 11 Attach sub-assembly L/S/N/M from ❽ , then properly previous step to C with tighten all the bolts. X 24...
- Page 18 Step 12 ❷ ❸ Attach to C.
- Page 19 Step 13 Align Drawers with the bed frame and push them into the bed. Slot Lock drawers by slightly lifting drawer and inserting the Pin into the Slot. Slot...
-
Page 20: Helpful Hints
Helpful Hints Helpful Hints Weight Limit: Bed: 450 Lb / 204 Kg Drawer: 40 Lb / 18 Kg ● Move your new furniture carefully, with two people lifting and carrying the unit to its new location. ● Your furniture can be disassembled and reassembled to move.
