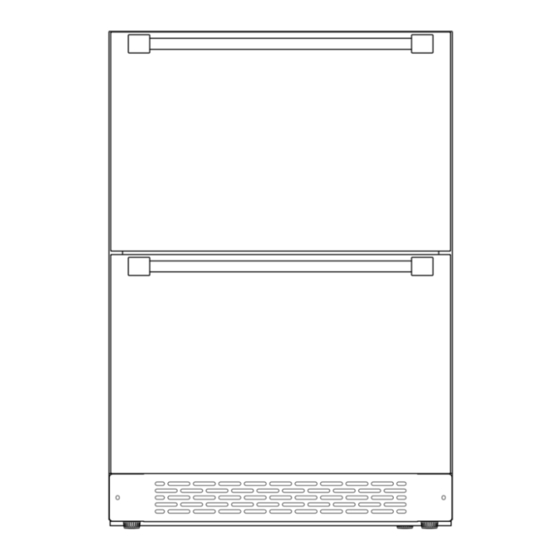

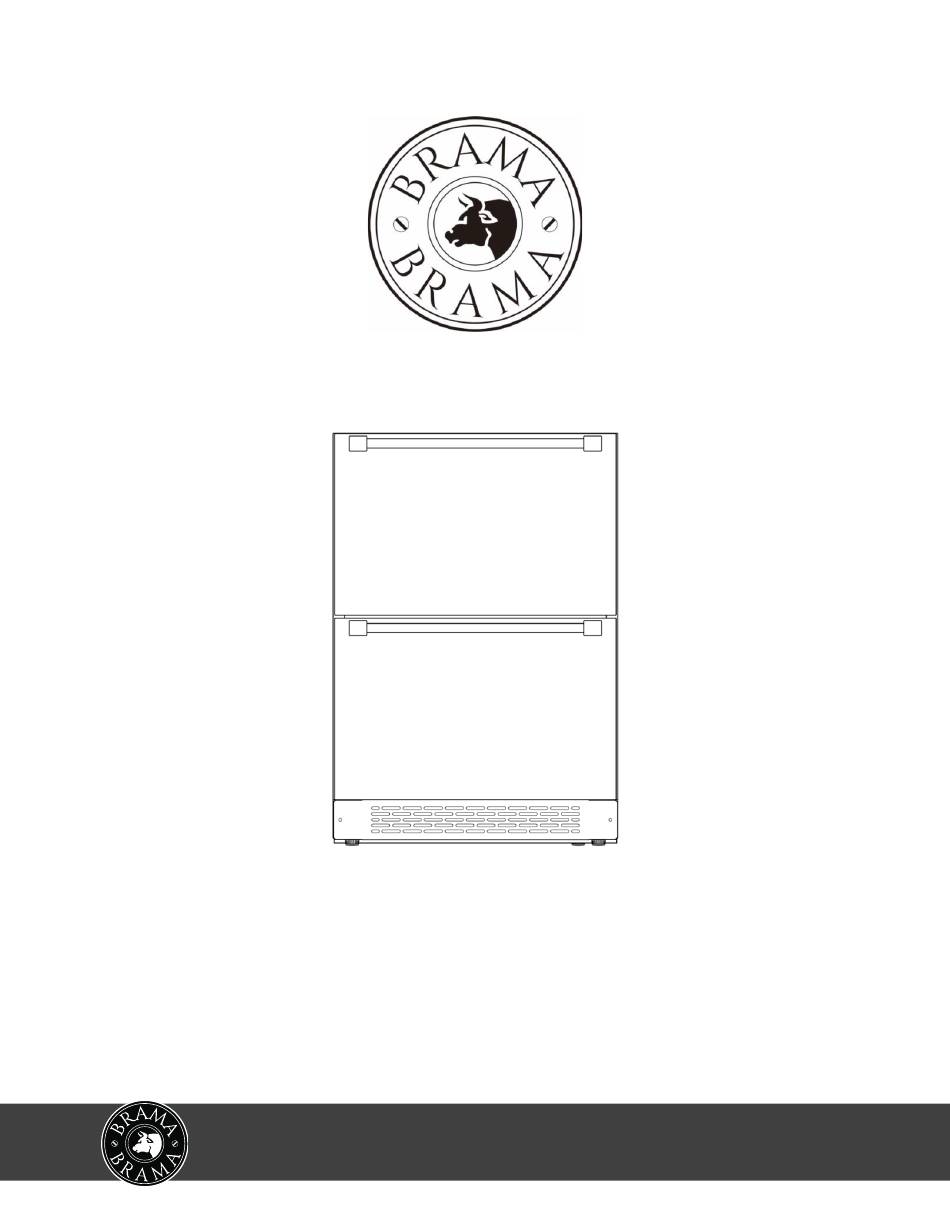

- Page 1 A P R O U D H E R I T A G E O F E X P E R I E N C E & Q U A L I T Y Outdoor/Indoor Drawer Refrigerator/Freezer BR-24FZREF OWNER’S MANUAL W W W . V I N O T E M P . C O M...
- Page 2 A PROUD HERITAGE OF EXPERIENCE & QUALITY PRODUCT REGISTRATION Purchase Confirmation With the information you provide, we can confirm the date of purchase for your product. The confirmation is of benefit to you, especially if your original proof of purchase is lost. Product Registration Completing this product registration is the only way to guarantee you will be notified of substantive issues that arise concerning your product.
- Page 3 GENERAL OPERATING INSTRUCTIONS Remove all external and internal packaging from your appliance. Be sure that all parts have been included before discarding any packaging materials. You may want to keep the box and packing materials for use at a later date. Upon receipt and inspection of unit, the supply cord must be replaced if it is damaged.
-
Page 4: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................5 ELECTRICAL CONNECTION ....................6 PARTS AND SPECIFICATIONS ..................... 7 INSTALLATION ........................8 OPERATING YOUR APPLIANCE ..................9 CARE AND MAINTENANCE....................11 TROUBLESHOOTING ......................13 TERMS OF SALE AND WARRANTY ................... 15 W W W . V I N O T E M P . C O M... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock or injury when using your appliance, follow these basic precautions: • Do not operate this or any other appliance with a damaged cord. • Do not operate if housing is removed or damaged. •... -
Page 6: Electrical Connection
is stated on the data plate inside the appliance. It is hazardous for anyone other than an Authorized Service Person to carry out servicing or repairs to this appliance. • Take serious care when handling, moving and using the appliance to avoid either damaging the refrigerant tubing or increasing the risk of a leak. -
Page 7: Parts And Specifications
PARTS AND SPECIFICATIONS Specifications Model No. BR-24FZREF Voltage AC 115V Frequency 60 Hz Ambient Temperature Range 44°- 106°F Control Temperature Range 36°- 43°F for refrigerator; -11°- 11°F for freezer. Refrigerant R600a/1.13oz Power Consumption 380 kWh/Year Input Power 100W Volume 3.9 Cu.Ft. -
Page 8: Installation
INSTALLATION • Remove all packing material before using your appliance. • IMPORTANT: Before connecting the unit to a power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. •... -
Page 9: Operating Your Appliance
OPERATING YOUR APPLIANCE CONTROLS ON/OFF Power To turn the appliance off, touch and hold the POWER key for 5 seconds until the temperature display goes off. To turn the appliance on, touch and hold the POWER key for 1 second until the temperature display lights up. - Page 10 INTERIOR LIGHT • The unit is fitted with an interior LED light system which will be turned ON when the door is open and it is designed for extremely long life. It is not user serviceable. To change the LED light fitting, please contact the service department.
-
Page 11: Care And Maintenance
USING THE FREEZER • The freezer is designed for the long-term storage of frozen food. Storage time is up to three months. • The storage life of frozen foods varies and the recommended storage time should not be exceeded. • Pre-packaged commercially frozen food should be stored in accordance with the frozen foods manufacturer’s instructions for a three star frozen food storage compartment or home freezer. - Page 12 ENERGY SAVING TIPS • The appliance should be located in the coolest area of the room or outdoor location, away from heat producing appliances and out of direct sunlight. • Ensure that the unit is adequately ventilated. Never cover air vents. •...
-
Page 13: Troubleshooting
PROBLEMS WITH YOUR APPLIANCE Most common problems can be solved easily, saving you the cost of a possible service call. Try the following suggestions to see if you can solve the problem before contacting Vinotemp at info@vinotemp.com. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE REMEDY •... - Page 14 PROBLEM POSSIBLE CAUSE REMEDY • There is a rattling noise. • This noise may be caused by The appliance seems to make internal flow too much noise. • There are gurgling sounds. refrigerant. This is normal. • There are popping and •...
-
Page 15: Terms Of Sale And Warranty
TERMS OF SALE AND WARRANTY Shipping/Delivery fees are the responsibility of the Purchaser. Seller is not responsible for the carrier’s missed/Non delivery for any reason. Delivery is curbside. Optional upgrades in delivery service is an additional fee. If upgraded delivery service cannot be performed properly, Purchaser agrees to accept delivery curbside and the difference in upgraded cost will not be refunded. - Page 16 California Proposition 65 Warning: The products sold on this ecommerce website and to the public may contain chemicals and other substances known to the State of California to cause cancer and birth defects and other reproductive harm. Totes made of vinyl, imitation leather, and/or leather material contain lead and/or other substances that are known to the State of California to cause cancer, birth defects and other reproductive harm.
- Page 17 Wine Accessories, Racking Systems, Parts and Other miscellaneous items is a 30 day warranty. Il Romanzo units: Warranty 90 (ninety) days. Replacement part 12 (twelve) months from the date of sale. Brama: 1 year warranty from date of purchase. Non-New Units (Scratch & Dent/Refurbished/Floor Models), warranty for compressor units is 90 days from your dated invoice and 30 days for thermoelectric units (parts for function only, not cosmetic defects).
- Page 18 Vinotemp (and its brands Element, Wine Mate, Cellar Tec, Apex Wine Racks, Epicureanist Il Romanzo, Brama(“Seller”) and the person of the entity that acquires these goods from Seller (“Purchaser”) hereby fully aggress to the following terms and conditions of the sale:...
- Page 19 1. Freight: Vinotemp is not a freight, moving or installation company, if Freight is arranged for the Buyer, the Seller assumes no responsibility for the goods sold to the Purchaser once the goods have left the Seller’s premises, including, but not limited to, late delivery by the moving carrier, or for events caused by any difficulty carrier incurs in attempting to fit the goods into the Purchaser’s place of business or residence due to the size of the goods or otherwise, such as the disassembly and reassembly of the goods.
- Page 20 8. UNLESS OTHERWISE PROVIDED BY APPLICABLE LAW, SELLER IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF; WARRANTY AND LIABILITY ARE NON-TRANSFERABLE. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXPRESSLY DISCLAIMED.
- Page 21 SERVICE & IMPORTANT NOTICE Upon receipt and inspection of unit, the supply cord must be replaced if it is damaged. Contact our customer service at 1-800-777-8466 or info@vinotemp.com. The manufacturer has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.
