FM/AM
Compact Disc
Player
Installation/Connections
Installation/Connexions
Instalación/Conexiones

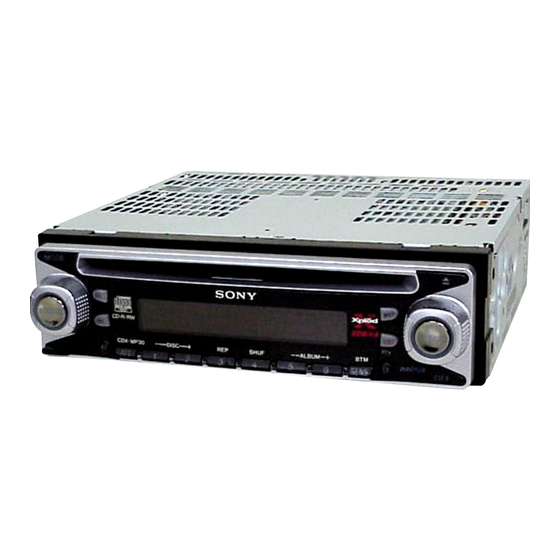

CDX-MP30
Sony Corporation © 2002
1
1
2
4
5
Equipment used in illustrations (not supplied)
Appareils utilisés dans les illustrations (non fournis)
Equipo utilizado en las ilustraciones (no suministrado)
Front speaker
Haut-parleur frontal
Altavoz delantero
Rear speaker
Haut-parleur arrière
Altavoz trasero
3-241-295-21 (1)
Printed in Korea
3
4
2
Power amplifier
Amplificateur de puissance
Amplificador de potencia
CD/MD changer
Changeur de CD/MD
Cambiador de CD/MD
Rotary commander RM-X4S
Satellite de commande
RM-X4S
Mando rotativo RM-X4S
2
A
AUDIO OUT FRONT
AUDIO OUT REAR
B
BUS AUDIO IN
BUS CONTROL IN
Source selector
Sélecteur de source
Selector de fuente
Cautions
• This unit is designed for negative ground 12 V
DC operation only.
• Do not get the wires under a screw, or caught
in moving parts (e.g. seat railing).
• Before making connections, turn the car
ignition off to avoid short circuits.
• Connect the yellow and red power input leads
only after all other leads have been connected.
• Run all ground wires to a common ground
point.
• Be sure to insulate any loose unconnected
wires with electrical tape for safety.
• The use of optical instruments with this
product will increase eye hazard.
Notes on the power supply cord (yellow)
• When connecting this unit in combination with
other stereo components, the connected car
circuit's rating must be higher than the sum of
each component's fuse.
• When no car circuits are rated high enough,
connect the unit directly to the battery.
Parts Iist (1)
The numbers in the list are keyed to those in the
instructions.
Caution
Handle the bracket 1 carefully to avoid injuring
your fingers.
Connection example (2)
Notes (2-B)
• Be sure to connect the ground cord before
connecting the amplifier.
• If you connect an optional power amplifier and do
not use the built-in amplifier, the beep sound will
be deactivated.
BUS AUDIO IN
*
BUS CONTROL IN
* not supplied
non fourni
no suministrado
Connection diagram (3)
1 To a metal surface of the car
First connect the black ground lead, then connect
the yellow and red power input leads.
2 To the power antenna control lead or power
supply lead of antenna booster amplifier
Notes
• It is not necessary to connect this lead if there is
no power antenna or antenna booster, or with a
manually-operated telescopic antenna.
• When your car has a built-in FM/AM antenna in
the rear/side glass, see "Notes on the control and
power supply leads."
3 To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting
any other system may damage the unit.
4 To the interface cable of a car telephone
5 To the +12 V power terminal which is energised
in the accessory position of the ignition key
switch
Notes
• If there is no accessory position, connect to the
+12 V power (battery) terminal which is
energised at all times.
Be sure to connect the black ground to it first.
• When your car has a built-in FM/AM antenna in
the rear/side glass, see "Notes on the control and
power supply leads."
6 To the +12 V power terminal which is energised
at all times
Be sure to connect the black ground lead to it
first.
Notes on the control and power supply leads
• The power antenna control lead (blue) supplies +12
V DC when you turn on the tuner.
• When your car has built-in FM/AM antenna in the
rear/side glass, connect the power antenna control
lead (blue) or the accessory power input lead (red)
to the power terminal of the existing antenna
booster. For details, consult your dealer.
• A power antenna without relay box cannot be used
with this unit.
Memory hold connection
When the yellow power input lead is connected,
power will always be supplied to the memory circuit
even when the ignition key is turned off.
Notes on speaker connection
• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms, and
with adequate power handling capacities to avoid
its damage.
• Do not connect the speaker terminals to the car
chassis, or connect the terminals of the right
speakers with those of the left speaker.
• Do not connect the ground lead of this unit to the
negative (–) terminal of the speaker.
• Do not attempt to connect the speakers in parallel.
• Connect only passive speakers. Connecting active
speakers (with built-in amplifiers) to the speaker
terminals may damage the unit.
• To avoid a malfunction, do not use the built-in
speaker wires installed in your car if the unit shares
a common negative (–) lead for the right and left
speakers.
• Do not connect the unit's speaker cords to each
other.
