Summary of Contents for SEI FA1126959

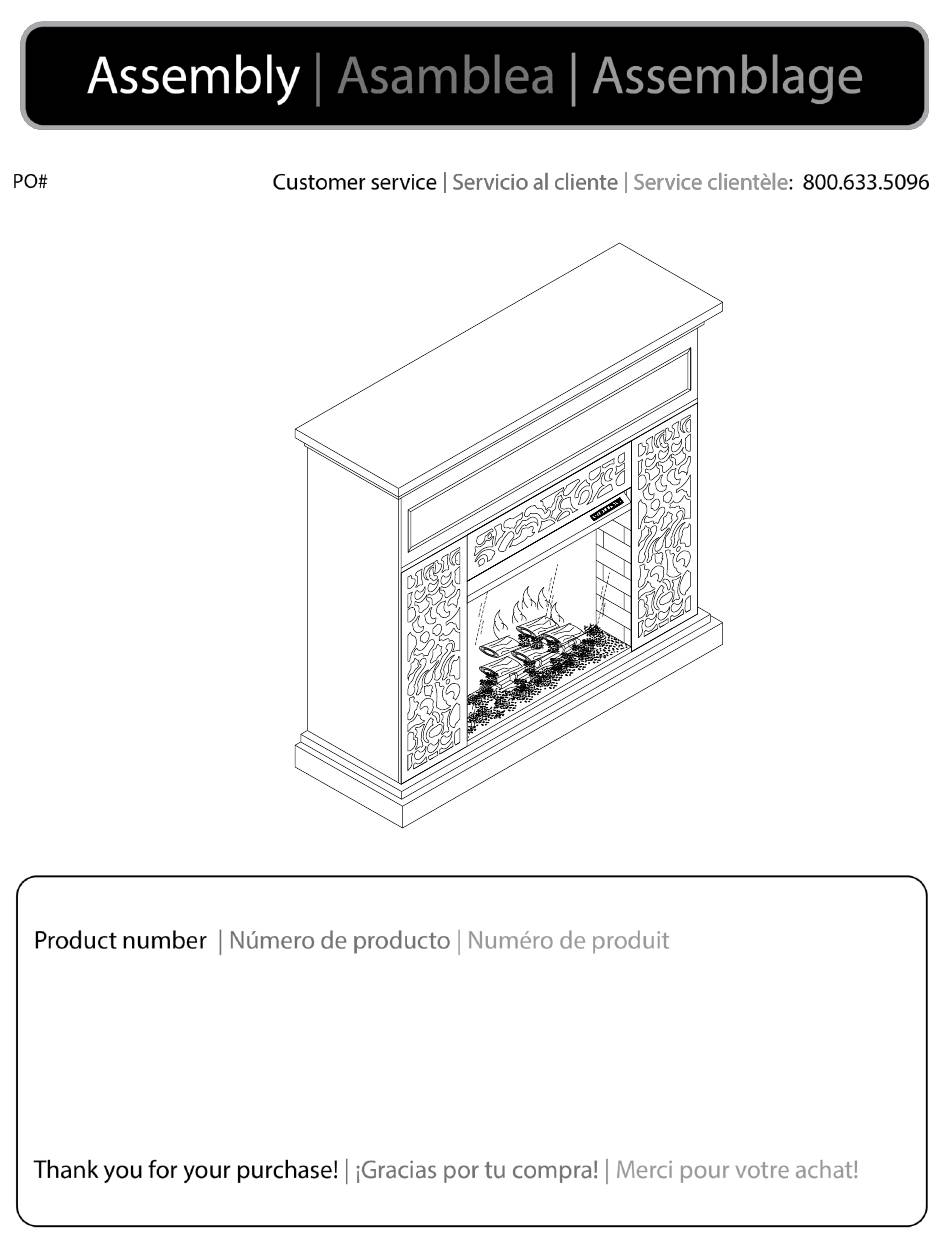

  • Page 1 FA1126959 FA1225759...
  • Page 4 Top panel Upper front cross panel Front right panel Panel superior Panel cruzado frontal superior Panel frontal derecho Panneau supérieur Panneau frontal supérieur Panneau avant droit Front cross panel Front left panel Right side panel Panel frontal cruzado Panel frontal izquierdo Panel lateral derecho Panneau transversal avant Panneau avant gauche...
  • Page 5 Cam bolt Cam lock Cover Perno de leva Bloqueo de la leva Tapa Boulon à came Serrure à came Couverture Wood dowel Screw Taco de madera Tornillo Bracket Cheville en bois Soporte ø5/16”x1-1/4 ”L ø3*1”L Support Screw Screw Tornillo Anchor Tornillo Ancla ø3*1/2”L...
  • Page 6 Step 1: Attach Front right panel (C), Front cross panel (D) and Front left panel (E) using Cam bolt (1), Cam lock (2) , cover (3) and Wood dowel (4) Paso 1: Fije el panel delantero derecho (C), el panel transversal delantero (D) y el panel delantero izquierdo (E) usando el perno de leva (1), la cerradura de leva (2), la cubierta (3) y la espiga de madera (4) Étape 2: Fixez le panneau avant droit (C), le panneau transversal avant (D) et le...
  • Page 7 Step 3: Attach Right side panel (F), Left side panel (G) using Cam lock (2), cover (3) and Wood dowel (4) Paso 3: Fije el panel lateral derecho (F), el panel lateral izquierdo (G) con el bloqueo de leva (2), la cubierta (3) y la espiga de madera (4) Étape 3: Fixez le panneau latéral droit (F), le panneau latéral gauche (G) à...
  • Page 8 Step 5: Attach Base (H) using Cam lock (2), cover (3) and Wood dowel (4) Paso 5: Fije la base (H) con el bloqueo de leva (2), la cubierta (3) y la espiga de madera (4) Étape 5: Fixez la base (H) à l'aide du verrou à came (2), du couvercle (3) et du goujon en bois (4) (×7) Step 6: Attach cam bolt (1) to Top panel (A)
  • Page 9 Step 7: Attach Top panel (A) using Cam lock (2), cover (3) and Wood dowel (4) Paso 7: Fije el panel superior (A) con el bloqueo de leva (2), la cubierta (3) y la espiga de madera (4) Étape 7: Fixez le panneau supérieur (A) à l'aide du verrou à came (2), du couvercle (3) et de la cheville en bois (4) (×7) (×7)
  • Page 10 Step 8: Attach Wood ledge (I) using Screw (5) Paso 8: Fije la repisa de madera (I) con el tornillo (5) Étape 8: Fixez le rebord en bois (I) à l'aide de la vis (5) (×2) (×4) (×2) Firebox shipped in Firebox ships in a separate carton.
  • Page 11 (×4) 11 |...
  • Page 12 Anti-tipping hardware must be used for this product to avoid tipping and injury. Se deben utilizar herrajes anti-vuelco para este producto para evitar vuelcos y lesiones. Le matériel anti- (×2) basculement doit être utilisé pour ce produit afin d'éviter le basculement et les blessures.

  • Page 13: One Year Limited Warranty

    Requests for missing or damaged parts must be requested within one year of purchase. Damages or missing parts reported outside of one year will not be honored. SEI Furniture is under no obligation to provide parts or replacement merchandise. Replacement part requests will not be honored for fully assembled or modified items.

  • Page 14: Garantía Limitada De Un Año

    Debe examinar su mercancía inmediatamente después de recibirla. Si tiene inquietudes sobre el producto, comuníquese con el servicio al cliente de SEI Furniture al 800-633-5096 de lunes a viernes de 8:30 am a 5 pm CST. Tenga a mano la información de su compra cuando llame.

  • Page 15: Garantie Limitée D'un An

    Vous devez examiner votre marchandise dès sa réception. Pour toute question concernant les produits, veuillez contacter le service client de SEI Furniture au 800-633-5096 du lundi au vendredi de 8h30 à 17h00 CST. Veuillez avoir vos informations d'achat prêtes lorsque vous appelez.
  • Page 16 FA4723 ELECTRICAL SPECIFICATIONS ESPECIFICACIONES ELÉCTRICAS CARACTÉRISTIQUES ÉLECTRIQUES Voltage: Tensión: Tension: 120V, 60 Hz Amps: Amperios: Intensité de courant: 12.5 Amps Watts: Watts: Puissance: 1500 Watts Lighting: Iluminación: Éclairage:...
  • Page 21 It's highly recommended to plug the unit to outlet with GFR/GFCI receptacle.
  • Page 22 Se recomienda encarecidamente enchufar la unidad a un tomacorriente con receptáculo GFR/GFCI.
  • Page 23 • Il est fortement recommandé de brancher l'appareil sur une prise avec une prise GFR/GFCI.

  • Page 26: Child Lock Function

    Operating Instructions: Control Panel on the Front of Unit: 1. Power 2. Heater 3. Flame 4. Log 5. Timer 1. On/Off Main Power Button a. Press to switch the unit ON/OFF. b. The unit will turn on to its default factory settings. 2.

  • Page 27: Conexión Eléctrica

    Instrucciones de operación: Panel de control en la parte delantera de la unidad: 1. Encendido/apagado 2. Calefactor 3. Llama 4. Leños 5. Temporizador 1. Botón de encendido/apagado principal a. Presiónelo para encender/apagar la unidad. b. La unidad se encenderá en su configuración predeterminada de fábrica. 2.

  • Page 28: Raccordement Électrique

    Directives d'utilisation: Panneau de commande à l'avant de l'unité: 5. Minuterie 1. Alimentation 2. Fournaise 3. Flamme 4. Bûche 1. Bouton marche/arrêt de l'alimentation principale a. Appuyez pour allumer ou éteindre l'unité. b. L'unité se mettra en marche avec les paramètres par défaut de l'usine. 2.
  • Page 41 • Amazon Alexa app, installed on your smartphone or tablet 1) Connect your phone to the fireplace WiFi Open your phone’s WiFi In a few seconds, your Select this SEI Network and phone should be connected enter the password: settings. You will see the to the fireplace WiFi.
  • Page 42 Smart Fireplace Setup Guide 2) Connect your fireplace to your WiFi network Open your phone’s After a few seconds, you Select your wireless should see the success web browser and enter network and enter your message showing that your the address: password for the network.
  • Page 43 Smart Fireplace Setup Guide 3) Link your fireplace to your Amazon account Tap the Login with Enter your Amazon account Tap Allow to link your Amazon button to begin details when prompted and fireplace to your Amazon linking your account. account.
  • Page 44 Smart Fireplace Setup Guide 4) Name your fireplace and enable the Alexa skill You will be prompted to Configure the Alexa skill by Choose a name for your enable the Alexa skill. Tap tapping the link to launch fireplace. This is how you Enable to Use.
  • Page 45 Amazon account that you different functions of your close the window to begin used to set up the fireplace. the device discovery fireplace. process. *Note: To remove a fireplace from your Amazon account, visit http://sei- smartfireplace.com and login with your account details.
  • Page 46 Smart Fireplace Setup Guide List of Alexa Commands Use the following phrases to control your fireplace via Alexa. Simply replace “Fireplace” with the name you chose for your fireplace during setup. Power "Alexa, turn Fireplace on" "Alexa, turn Fireplace off" Downlight "Alexa, turn Fireplace downlight on"...

  • Page 47: Troubleshooting

    Disable the commands, then enable them again. If the commands still do Alexa commands are enabled not work, you may need to reset the fireplace WiFi. but not working. *Note: To remove a fireplace from your Amazon account, visit http://sei- smartfireplace.com and login with your account details.
  • Page 48 • Google Assistant for Android or IOS 1.) Connecting your phone to the fireplace WiFi In a few seconds, your phone Open your phone’s WiFi Select this SEI should be connected to the settings. You will see Network and enter fireplace WiFi.
  • Page 49 Tap the Login button to link your Google account. *Note: To remove a fireplace from your Amazon account, visit http://sei- *Note: The success screen may refer to your Amazon account but you will still be able to smartfireplace.com and login with your account details.
  • Page 50 Enter your Google account details if Sign in button to wish to link your fireplace to. prompted. begin linking your Note that you must use the same account when using the SEI account. Firebox smart home action for Google Assistant.
  • Page 51 Next, set up using Google voice the Google Action. commands. We strongly recommend naming it Fireplace. *Note: To remove a fireplace from your Amazon account, visit http://sei- smartfireplace.com and login with your account details.
  • Page 52 Smart Fireplace Setup Guide 5.) Sign in to Google Assistant Open Google Assistant on Choose which Google Once you have selected Android or IOS. Tap the icon account you wish to use the desired account, in the top right to enter the for your Google scroll down and select “Home Control.”...
  • Page 53 Click the Google Locate and select the Google account you used Login Button. S.E.I. Firebox action. to setup your device in step 3. *Note: To remove a fireplace from your Amazon account, visit http://sei- smartfireplace.com and login with your account details.

  • Page 54: Finish Setup

    Firebox is capable of. Please refer to the next page of this guide for a list of supported commands. *Note: To remove a fireplace from your Google account, visit www.sei-smartfireplace.com and login with your account details...
  • Page 55 "Ok Google, set Fireplace heater to 70" *Note: When turning on the Fireplace heater, it will default to the maximum temperature setting. *Note: To remove a fireplace from your Amazon account, visit http://sei- smartfireplace.com and login with your account details.
