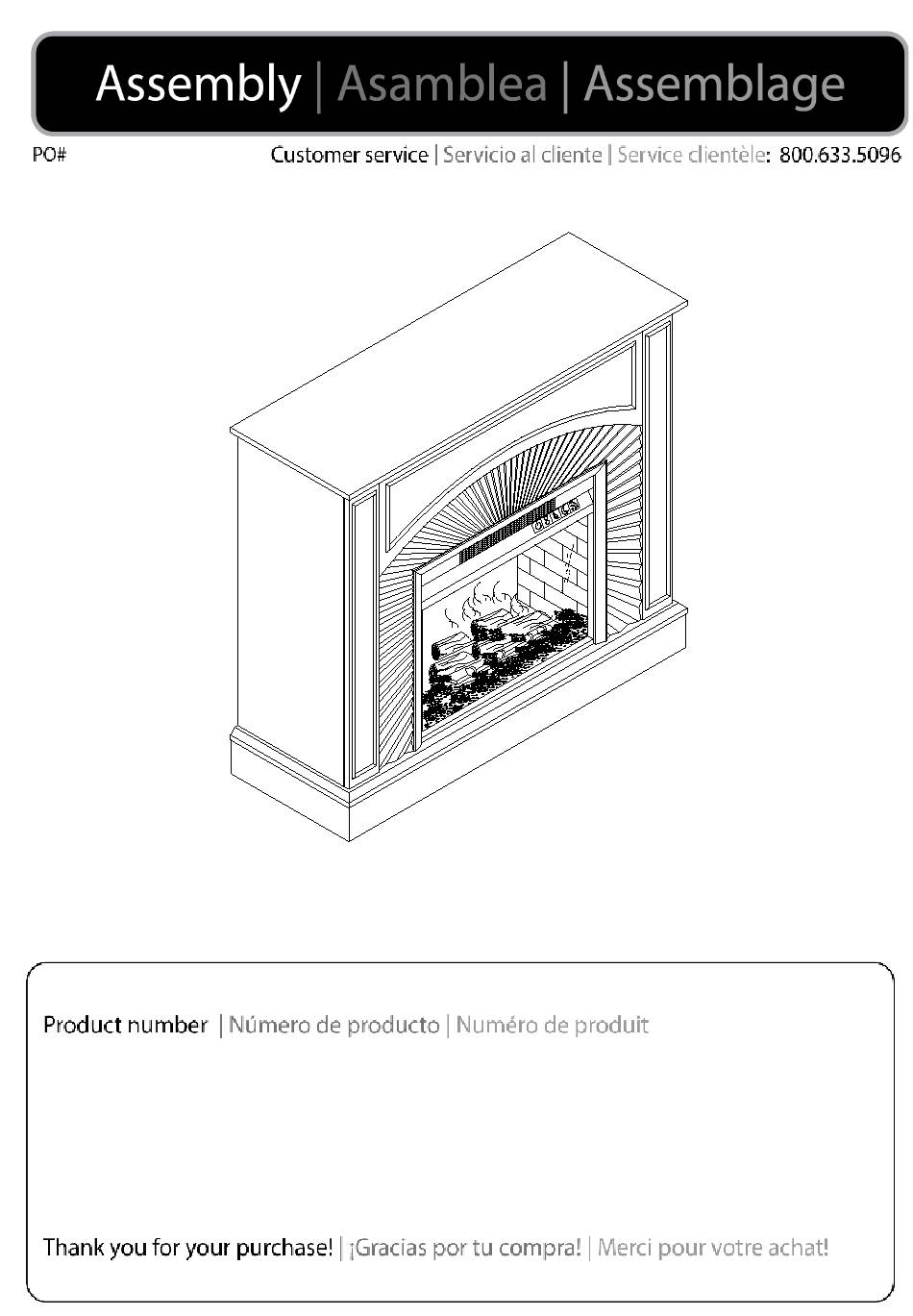

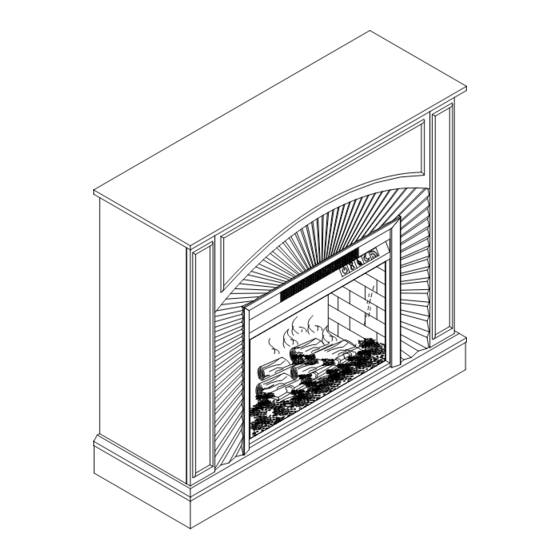

  • Page 1 FA1174059...
  • Page 2 3/16" Φ...
  • Page 4 ×1 ×1 ×2 Top panel Bottom panel Side panel Panel superior Panel inferior Panel lateral Panneau supérieur Panneau du bas Panneau latéral ×1 ×1 ×1 Upper cross panel Left front panel Right front panel Panel transversal superior Panel frontal izquierdo Panel frontal derecho Panneau transversal Panneau avant gauche...
  • Page 5 ×33 ×33 ×33 Cam bolt Cover Cam lock Perno de leva Cubrir Bloqueo de leva Boulon à came Couverture Serrure à came ×14 ×16 ×4 Wood dowel Ø8×30mm Screw 8#×1” L Bracket Pasador de madera Tornillo Soporte Cheville en bois Visser Support ×4...
  • Page 6 Step 1: Attach cam bolt (1) to top panel (A) Paso 1: Fije el perno de leva (1) al panel superior (A) Étape 2: Fixez le boulon à came (1) au panneau supérieur (A) (×19) Step 2: Attach cam bolt (1) and wood dowel (4) to bottom panel (B) Paso 2: Fije el perno de leva (1) y la espiga de madera (4) al panel inferior (B) Étape 2: Fixez le boulon à...
  • Page 7 Step 3: Attach cam bolt (1) and wood dowel (4) to Left front panel (D) and right front panel (E) Paso 3: Fije el perno de leva (1) y la espiga de madera (4) al panel frontal (×2) izquierdo (D) y al panel frontal derecho (E) Étape 3: Fixez le boulon à...
  • Page 8 Step 5: Attach Upper cross panel (F) using cam lock (2) and cover (3) Paso 5: Fije el panel transversal superior (F) usando la cerradura de leva (2) y la cubierta (3) Étape 5: Fixez le panneau transversal supérieur (F) à l'aide du verrou à came (2) et du couvercle (3) (×4) (×4)
  • Page 9 Step 6: Attach Bottom panel (B) using cam lock (2) and cover (3) Paso 6: Fije el panel inferior (B) usando la cerradura de leva (2) y la cubierta (3) Étape 6: Fixez le panneau inférieur (B) à l'aide du verrou à came (2) et du couvercle (3) (×6) (×6)
  • Page 10 Step 7: Attach Top panel (B) using cam lock (2), cover (3) and wood dowel (4) Paso 7: Fije el panel superior (B) con el bloqueo de leva (2), la cubierta (3) y la espiga de madera (4) Étape 7: Fixez le panneau supérieur (B) à l'aide du verrou à came (2), du couvercle (3) et du goujon en bois (4) (×6) (×9)
  • Page 11 Step 8: Attach cam bolt (1) to Upper inner cross panel (I) Paso 8: Fije el perno de leva (1) al panel transversal interior superior (I) Étape 8: Fixez le boulon à came (1) au panneau transversal intérieur supérieur (I) Step 9: Attach Left inner panel (G) and right inner panel (H) using cam lock (2) and cover (3) Paso 9: Fije el panel interior izquierdo (G) y el panel interior derecho (H)
  • Page 12 Step 10: Attach Left inner panel (G), Right inner panel (H) Upper inner cross panel (I) using cam lock (2) and cover (3) Paso 10: Fije el panel interior izquierdo (G), el panel interior derecho (H) y el panel transversal interior superior (I) usando el bloqueo de leva (2) y la cubierta (3) Étape 10: Fixez le panneau intérieur gauche (G), le panneau intérieur droit (H) le panneau transversal intérieur supérieur (I) à...
  • Page 13 Step 11: Attach screw (5), bracket (6) and screw (7) Paso 11: Fije el tornillo (5), el soporte (6) y el tornillo (7) Étape 11: Fixez la vis (5), le support (6) et la vis (7) (×12) （×2） （×4）...
  • Page 14 Step 12: Attach Wood holder (J) using screw (5) Paso 12: Fije el soporte de madera (J) con el tornillo (5) Étape 12: Fixez le support à bois (J) à l'aide de la vis (5) (×2) (×4) Firebox shipped in a separate carton Firebox enviado en una caja de cartón separada Firebox expédié...
  • Page 15 (×4)
  • Page 16 Anti-tipping hardware must be used for this product to avoid tipping and injury. Se deben utilizar herrajes anti-vuelco para este producto para evitar vuelcos y lesiones. Le matériel anti- basculement doit être (×2) utilisé pour ce produit afin d'éviter le basculement et les blessures.

  • Page 17: One Year Limited Warranty

    Requests for missing or damaged parts must be requested within one year of purchase. Damages or missing parts reported outside of one year will not be honored. SEI Furniture is under no obligation to provide parts or replacement merchandise. Replacement part requests will not be honored for fully assembled or modified items.

  • Page 18: Garantía Limitada De Un Año

    Debe examinar su mercancía inmediatamente después de recibirla. Si tiene inquietudes sobre el producto, comuníquese con el servicio al cliente de SEI Furniture al 800-633-5096 de lunes a viernes de 8:30 am a 5 pm CST. Tenga a mano la información de su compra cuando llame.

  • Page 19: Garantie Limitée D'un An

    Vous devez examiner votre marchandise dès sa réception. Pour toute question concernant les produits, veuillez contacter le service client de SEI Furniture au 800-633-5096 du lundi au vendredi de 8h30 à 17h00 CST. Veuillez avoir vos informations d'achat prêtes lorsque vous appelez.
  • Page 20 FA4723 ELECTRICAL SPECIFICATIONS ESPECIFICACIONES ELÉCTRICAS CARACTÉRISTIQUES ÉLECTRIQUES Voltage: Tensión: Tension: 120V, 60 Hz Amps: Amperios: Intensité de courant: 12.5 Amps Watts: Watts: Puissance: 1500 Watts Lighting: Iluminación: Éclairage:...
  • Page 25 It's highly recommended to plug the unit to outlet with GFR/GFCI receptacle.
  • Page 26 Se recomienda encarecidamente enchufar la unidad a un tomacorriente con receptáculo GFR/GFCI.
  • Page 27 • Il est fortement recommandé de brancher l'appareil sur une prise avec une prise GFR/GFCI.

  • Page 30: Child Lock Function

    Operating Instructions: Control Panel on the Front of Unit: 1. Power 2. Heater 3. Flame 4. Log 5. Timer 1. On/Off Main Power Button a. Press to switch the unit ON/OFF. b. The unit will turn on to its default factory settings. 2.

  • Page 31: Conexión Eléctrica

    Instrucciones de operación: Panel de control en la parte delantera de la unidad: 1. Encendido/apagado 2. Calefactor 3. Llama 4. Leños 5. Temporizador 1. Botón de encendido/apagado principal a. Presiónelo para encender/apagar la unidad. b. La unidad se encenderá en su configuración predeterminada de fábrica. 2.

  • Page 32: Raccordement Électrique

    Directives d'utilisation: Panneau de commande à l'avant de l'unité: 5. Minuterie 1. Alimentation 2. Fournaise 3. Flamme 4. Bûche 1. Bouton marche/arrêt de l'alimentation principale a. Appuyez pour allumer ou éteindre l'unité. b. L'unité se mettra en marche avec les paramètres par défaut de l'usine. 2.
  • Page 45 • Amazon Alexa app, installed on your smartphone or tablet 1) Connect your phone to the fireplace WiFi Open your phone’s WiFi In a few seconds, your Select this SEI Network and phone should be connected enter the password: settings. You will see the to the fireplace WiFi.
  • Page 46 Smart Fireplace Setup Guide 2) Connect your fireplace to your WiFi network Open your phone’s After a few seconds, you Select your wireless should see the success web browser and enter network and enter your message showing that your the address: password for the network.
  • Page 47 Smart Fireplace Setup Guide 3) Link your fireplace to your Amazon account Tap the Login with Enter your Amazon account Tap Allow to link your Amazon button to begin details when prompted and fireplace to your Amazon linking your account. account.
  • Page 48 Smart Fireplace Setup Guide 4) Name your fireplace and enable the Alexa skill You will be prompted to Configure the Alexa skill by Choose a name for your enable the Alexa skill. Tap tapping the link to launch fireplace. This is how you Enable to Use.
  • Page 49 Amazon account that you different functions of your close the window to begin used to set up the fireplace. the device discovery fireplace. process. *Note: To remove a fireplace from your Amazon account, visit http://sei- smartfireplace.com and login with your account details.
  • Page 50 Smart Fireplace Setup Guide List of Alexa Commands Use the following phrases to control your fireplace via Alexa. Simply replace “Fireplace” with the name you chose for your fireplace during setup. Power "Alexa, turn Fireplace on" "Alexa, turn Fireplace off" Downlight "Alexa, turn Fireplace downlight on"...

  • Page 51: Troubleshooting

    Disable the commands, then enable them again. If the commands still do Alexa commands are enabled not work, you may need to reset the fireplace WiFi. but not working. *Note: To remove a fireplace from your Amazon account, visit http://sei- smartfireplace.com and login with your account details.
  • Page 52 • Google Assistant for Android or IOS 1.) Connecting your phone to the fireplace WiFi In a few seconds, your phone Open your phone’s WiFi Select this SEI should be connected to the settings. You will see Network and enter fireplace WiFi.
  • Page 53 Tap the Login button to link your Google account. *Note: To remove a fireplace from your Amazon account, visit http://sei- *Note: The success screen may refer to your Amazon account but you will still be able to smartfireplace.com and login with your account details.
  • Page 54 Enter your Google account details if Sign in button to wish to link your fireplace to. prompted. begin linking your Note that you must use the same account when using the SEI account. Firebox smart home action for Google Assistant.
  • Page 55 Next, set up using Google voice the Google Action. commands. We strongly recommend naming it Fireplace. *Note: To remove a fireplace from your Amazon account, visit http://sei- smartfireplace.com and login with your account details.
  • Page 56 Smart Fireplace Setup Guide 5.) Sign in to Google Assistant Open Google Assistant on Choose which Google Once you have selected Android or IOS. Tap the icon account you wish to use the desired account, in the top right to enter the for your Google scroll down and select “Home Control.”...
  • Page 57 Click the Google Locate and select the Google account you used Login Button. S.E.I. Firebox action. to setup your device in step 3. *Note: To remove a fireplace from your Amazon account, visit http://sei- smartfireplace.com and login with your account details.

  • Page 58: Finish Setup

    Firebox is capable of. Please refer to the next page of this guide for a list of supported commands. *Note: To remove a fireplace from your Google account, visit www.sei-smartfireplace.com and login with your account details...
  • Page 59 "Ok Google, set Fireplace heater to 70" *Note: When turning on the Fireplace heater, it will default to the maximum temperature setting. *Note: To remove a fireplace from your Amazon account, visit http://sei- smartfireplace.com and login with your account details.
