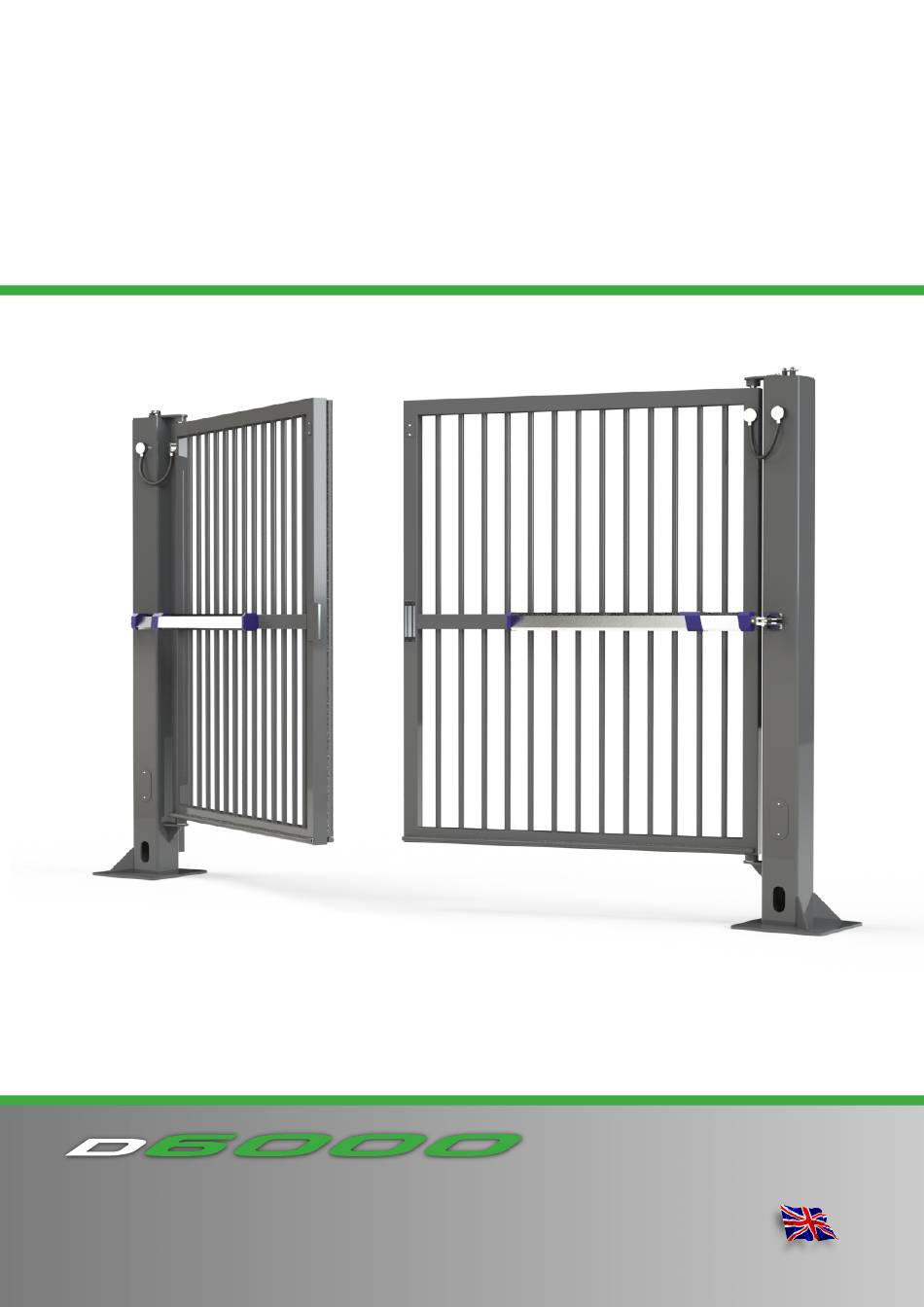

- Page 1 O&M Manual Revision 1.0 Automatic Swing gates C/w BFT Giuno A50 Rams Made in Maximum span - 5.0m gate leaf and 300kg weight. Maximum span - 2.0m gate leaf and 800kg weight...
- Page 2 4. Layout Drawings Page 06 5. Installation Page 07 - 08 6. Commissioning Certificate Page 09 7. BFT Giuno Rams Manual release Page 10 - 15 8. BFT Thalia P Control panel Page 16 - 24 9. Maintenance Page 25 10.
-
Page 3: Introduction And W Arnings
Introduction and W arnings This equipment is part of a large range of traffic flow products. They are designed to be easy to install, as all settings and internal wiring have been completed in our factory. Any of the instructions in this manual should only be carried out by a qualified service engineer or a competent person. - Page 4 Delivery,Movement& Transportation This article describes how your equipment will be delivered to you, specifications on the transportation used and advice including health & safety on movement of the equipment. The manufacturer will use a qualified transport company to deliver the product conforming to the necessary regulations as detailed below: ? All drivers are qualified ? All drivers are tested once yearly ( If applicable )
-
Page 5: Lifting And Handling
SWL of 2 tonne for each sling. HANDLING Due to the size and weight of most D6000 swing gates, the services of a mobile crane/ hiab are essential for safe off-loading and positioning. The Posts are to be lifted off first and bolted down ready for the leafs to be hung. -
Page 6: General Layout
General Layout... -
Page 7: Installation
Installation Foundations All foundations should be installed as per drawing supplied as base size’s will vary depending on the size of the gates. (Contact your supplier if you have not been issued one.) All foundations should be installed 10 x days prior to the gates being installed. If details of the base have not been specified, we recommend a concrete mix to BS EN 206-1:2000 “Concrete specification, Performance, Production and Conformity”... -
Page 8: Cable Requirements
Installation Cont. CABLE REQUIREMENTS As each installation is likely to have different forms of control, each contract will be allocated its own circuit diagram but the following notes should always apply. Cables when laid into the ducting should be left with 3m long tails. Any internal cable must be completely installed to the final location of the equipment to be used and be left with a suitable length of tail. -
Page 9: Commissioning Certificate
Commissioning Certificate We certify that the system covered by this certificate has been commissioned satisfactorily. Site Name Completion Site Reference Engineers Installing Installation Commenced Commissioning Equipment Fitted Handover Date Part 2. Existing Installation Items not covered under warranty/ This certificate: Part 3. - Page 10 Max power output -90w Gate leaf length - 2m/5m The ULTRA BFT A50 hydraulic gate opener is extremely versatile and is Max leaf - 800kg/300kg suited to all kinds iof settings. Each operator is cable of swing a gate leaf Control Panel - Thalia P 800kg 2 metres in length, 400kg for 5m lengths.
- Page 11 BFT Giuno A50 Rams...
- Page 12 BFT GIUNO A50 RAMS Page 12...
- Page 13 BFT GIUNO A50 RAMS...
- Page 14 BFT GIUNO A50 RAMS...
- Page 15 BFT GIUNO A50 RAMS...
- Page 16 BFT GIUNO A50 RAMS BFT GIUNO A50 RAMS BFT GIUNO A50 RAMS...
- Page 17 BFT GIUNO A50 RAMS BFT GIUNO A50 RAMS BFT GIUNO A50 RAMS...
- Page 18 BFT GIUNO A50 RAMS BFT GIUNO A50 RAMS BFT GIUNO A50 RAMS...
- Page 19 BFT GIUNO A50 RAMS BFT GIUNO A50 RAMS BFT GIUNO A50 RAMS...
- Page 20 BFT GIUNO A50 RAMS BFT GIUNO A50 RAMS BFT GIUNO A50 RAMS...
- Page 21 Thalia P Instruction Manual SHIELD Antenna Antenne JP21 Antena 8888 Antenne Connettore programmatore palmare, Palmtop programmer connector, Connecteur programmateur de poche, S teckverbinder Palmtop-Programmierer, Conector del programador de bolsillo, Connector programmeerbare palmtop. 230V Display + tasti programmazione Display + programming keys 220-230V~ Display + Programmierungstasten 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84...
-
Page 22: General Information
Thalia P Instruction Manual 2) GENERALINFORMATION Maximum motor power 180W + 180W (24V The THALIA P control panel comes with standard factory settings. Any change must be made using the programmer with built-in display or universal handheld 24V~ (demand max. 1A) Accessories power supply programmer. - Page 23 Thalia P Instruction Manual + REFSWE Limit switch common SW 1 Limit switch control motor 1. SW 2 Limit switch control motor 2. 24V- Accessoriespower supply output. 24V+ Tested safety device power supply output (photocell transmitter and safety edge transmitter). 24 Vsafe+ Output active only during operating cycle.
- Page 24 Thalia P Instruction Manual IClogic= 1 - Input configured asStart I. Operation according to STEP- BY- STEP M O V. logic. Internal start for traffic light control. IClogic= 2 - Input configured as Open. The command causes the leaves to open. If the input stays closed, the leaves stay open until the contact is opened. When the contact is open, the automated device closes following the TCA time, where activated.
- Page 25 Thalia P Instruction Manual TABLE “A” - PARAMETERS MENU - (PARA ) Parameter min. max. Default Personal Definition Description O PEN DELAY Motor 2 opening delay Motor 2 opening delay time with respect to motor 1. time [s] TI E CLS DELAY Motor 1 closing delay Motor 1 closing delay time with respect to motor 2.
- Page 26 Thalia P Instruction Manual TABLE“B” - LOGIC MENU - (l ogi c) Cross out Logic Definition Default setting Optional extras used Motors not active ELI 250 BT Motor type PHOBOSBT M O TO R TYPE (Set the type of motor IgEA BT connected to the LUX BT...
- Page 27 Thalia P Instruction Manual Cross out Logic Definition Default setting Optional extras used Movement is stopped only when the closing limit switch trips: in this case, the tripping of the closing limit switch must be adjusted accurately (Fig.g Ref.B). Use when there is a mechanical stop in closed position. Closing limit switch PRESS SW C Thisfunction allowsleaves to press against the mechanical stop without the Amperostop sensor...
- Page 28 Thalia P Instruction Manual Cross out Logic Definition Default setting Optional extras used Output configured as 2nd Radio Channel. Configuration of AUX 1 AUX 1 output. Output configured as SCA (gate open light). 22-23 Output configured as Courtesy Light command. Output configured as Zone Light command.
- Page 29 Thalia P Instruction Manual Cross out Logic Definition Default setting Optional extras used Input configured as Start Ecommand. Input configured as Start I command. Input configured as Open command. Input configured as Close command. Input configured as Ped command. Configuration of EXPI2 input Input configured as Timer command.
- Page 30 Gate Maintenance As stated at the beginning of this manual we recommend a bi-annual service, but at a bare minimum, it is imperative that you get a service done once every 12 months. This is not a sales tactic in disguise, there is a very serious health and safety issue/risk associated with not complying to this.
-
Page 31: Service Log
Service log This Manual must be completed in accordance with the guidelines below, at any point service/repair work is carried out on the product. This is to achieve two things; 1. To keep a history of the product for yourself and your supplier/manufacturer. 2. -
Page 32: Technical Data
Technical data Specification Maximum Gate Length: 2m (800kg) 5m (300kg) Power Requirement: 24v, Single Phase, 50Hz, 5 Amps Drive Motor: BFT Giuno A50 Ram Opening/Closing time: seconds (variable) Duty Cycle: High intense use Control: Push-button Open and close - Photocell/safety edges for safety.
