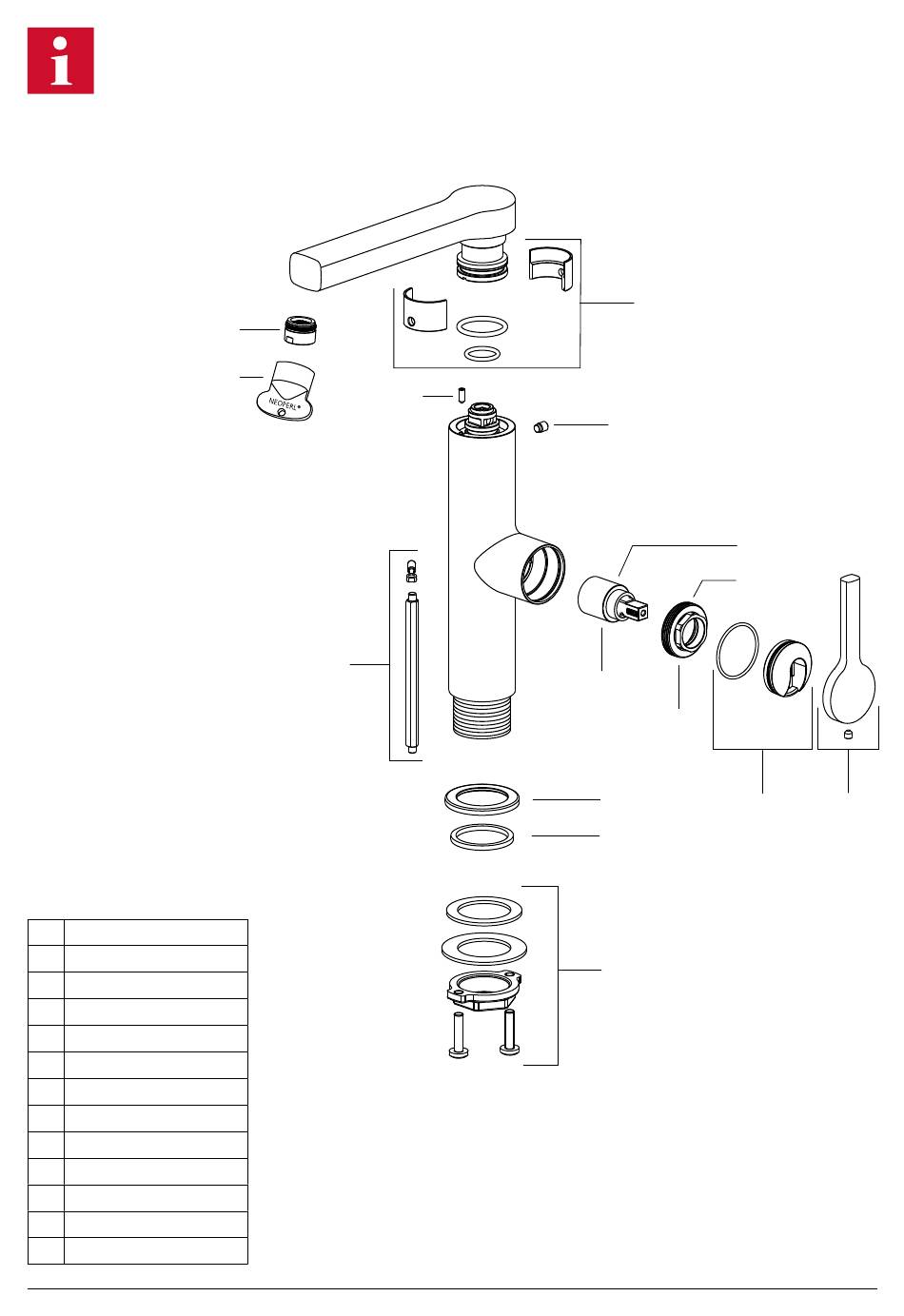

KWC AVA 2.0 A105 Installation And Service Manual page 26

A150
12.468.131.000FL
12.468.141.000FL
12.468.651.000FL
Z.538.628.000
1
Z.536.568.000
2
Z.636.218
3
Z.536.032
4
Z.635.322.700
5
Z.538.690
6
Z.537.134.000
7
Z.605.103.700
8
Z.538.691.000
9
Z.635.815.000
10
Z.638.911
11
Z.538.315
12
Z.638.338
13
26
7
M20x1
13
9
8
6
5
8 Nm + 1 Nm
S 24
4
3
10
2
11
12
KWC802658-01 11/20
1
