Summary of Contents for HH Electronics Tensor-SOLO

  • Page 1 USER MANUAL...

  • Page 2: Table Of Contents

    CONTENTS TENSOR-SOLO OVERVIEW ..........................2 FEATURES ..............................2 WHAT’S INCLUDED ............................2 SETUP .................................. 3 CONTROLS ................................. 3 CHANNELS 1/2 .............................. 4 CHANNELS 3/4 .............................. 4 MASTER CONTROLS ............................ 5 MAINS INLET ..............................6 SPECIFICATIONS ............................... 7 BLACK ................................7 WHITE ................................

  • Page 3: Tensor-Solo Overview

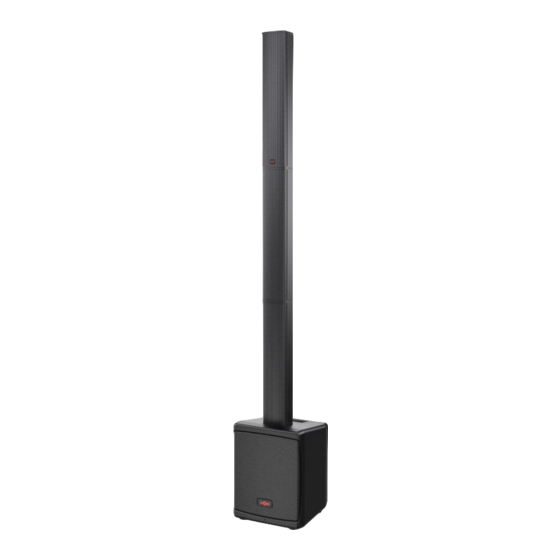

    The 8" subwoofer and six 2.75” drivers allow for crystal clear audio coverage for 100+ people. With its simple 4-piece ‘slot together’ design, the Tensor-SOLO can be set up swiftly and effortlessly. Microphones or line level devices such as keyboards can connect to the Tensor-SOLO simultaneously via the 4-channel mixer.

  • Page 4: Setup

    SETUP The Tensor-SOLO may be used with either one or two spacer units depending on the unit’s position and your chosen usage. For floor mounted operation, two spacers are recommended. Position the subwoofer on a stable surface in the desired location, then proceed to fit the spacer columns by firmly pressing them into position.

  • Page 5: Controls

    CONTROLS CHANNELS 1/2 1. LEVEL CONTROL Controls the input level individually for channels 1 and 2. Set to minimum when first setting up your inputs and gradually increase to a suitable volume. 2. LINE/MIC SWITCH Switch to adjust gain for each channel. 40dB added in the MIC setting for lower level inputs.

  • Page 6: Master Controls

    10. DSP PRESET SELECT 4 EQ presets are loaded onto the Tensor-SOLO to enhance your sound depending on the use case. Use the button to cycle through each preset. The 4 green LEDs will light one at a time to signal the corresponding preset that is currently selected.

  • Page 7: Mains Inlet

    MAINS INLET 12. VOLTAGE SELECT SWITCH The Tensor-SOLO is a dual voltage device, capable of being used around the world. This switch should be correctly set for your country already. Although every effort has been made to select the correct voltage for the region of use, it is advised that this is checked before first powering on.

  • Page 8: Specifications

    SPECIFICATIONS BLACK Model Tensor-SOLO:BK Colour Black System Type Ultra Portable Column PA System Frequency response 50-20kHz Max SPL (1M) 123 dB SPL (Peak) Power Rating 300W RMS, 1200W Peak Amplifier Type Class D Power Supply Universal SMPS 100-240V~ Protection Short circuit, Thermal overload, multi band limiter Inputs 2x Combo (XLR/Jack) balanced/unbalanced input with Mic/Line preset switch.

  • Page 9: White

    WHITE Model Tensor-SOLO:WH Colour White System Type Ultra Portable Column PA System Frequency response 50-20kHz Max SPL (1M) (Peak) 123 dB SPL Power Rating 300W RMS, 1200W Peak Amplifier Type Class D Power Supply Universal SMPS 100-240V~ Protection Short circuit, Thermal overload, multi band limiter Inputs 2x Combo (XLR/Jack) balanced/unbalanced input with Mic/Line preset switch.

  • Page 10: Dimensions

    DIMENSIONS Page 9...

  • Page 11: Safety And Warnings

    23) The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Headstock Distribution Ltd is under license. Other trademarks and trade names are those of their respective owners. HH Electronics Ltd.
  • Page 12 CE Mark (93/68/EEC), Low Voltage 2014/35/EU, EMC (2014/30/EU), RoHS (2011/65/EU), RED (2014/30/EU), ErP 2009/125/EU SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, HH Electronics declares that the radio equipment is in compliance with Directives 2014/53/EU, 2011/65/EU, 2009/125/EU Full text of the EU declaration of conformity is available at the following internet address: http://support.hhelectronics.com/approvals...
  • Page 13 HH ELECTRONICS LTD. STEELPARK ROAD, COOMBSWOOD BUSINESS PARK WEST, HALESOWEN, B62 8HD HH ELECTRONICS PART OF HEADSTOCK GROUP FOR THE LATEST INFORMATION PLEASE VISIT IN THE INTEREST OF CONTINUED DEVELOPMENT, HH RESERVES THE RIGHT TO AMEND PRODUCT SPECIFICATION WITHOUT PRIOR NOTIFICATION.
