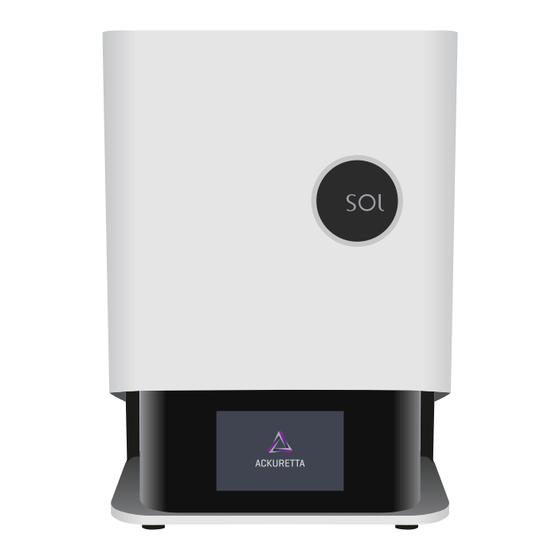

Ackuretta SOL Quick Start Manual
Hide thumbs
Also See for SOL:
- User manual (56 pages) ,
- Quick start manual (2 pages) ,
- Hardware installation manual (2 pages)
Advertisement
Quick Links
Start Printing
1
1
3
2
3
Select correct file and press 'Print'
Technical Specifications
29.2 (L) x 27.1 (W) x 41.6 (H) cm
Dimensions
11.5 (L) x 10.7 (W) x 16.4 (H) in
Approx. 18 kg
Weight
Approx. 40 lbs
Power Input
100-240VAC, 50-60Hz
Resin Wavelength
385-405 nm
2
4
*
2
1
3
*Minimum 100ml resin required;
shake well before pouring
4
4
Insert USB with IBF file
14 (L) x 8 (W) x 12.8 (H) cm
Print Area
5.5 (L) x 3.1 (W) x 5.04 (H) in
XY Resolution
49 μm
Layer Thickness
30-150 μm
3D Print Technology
Monochrome LCD Panel
User Dashboard
Facebook User Group
Quick Start Guide
2023/05
