M-system R8-FS16N Instruction Manual page 2

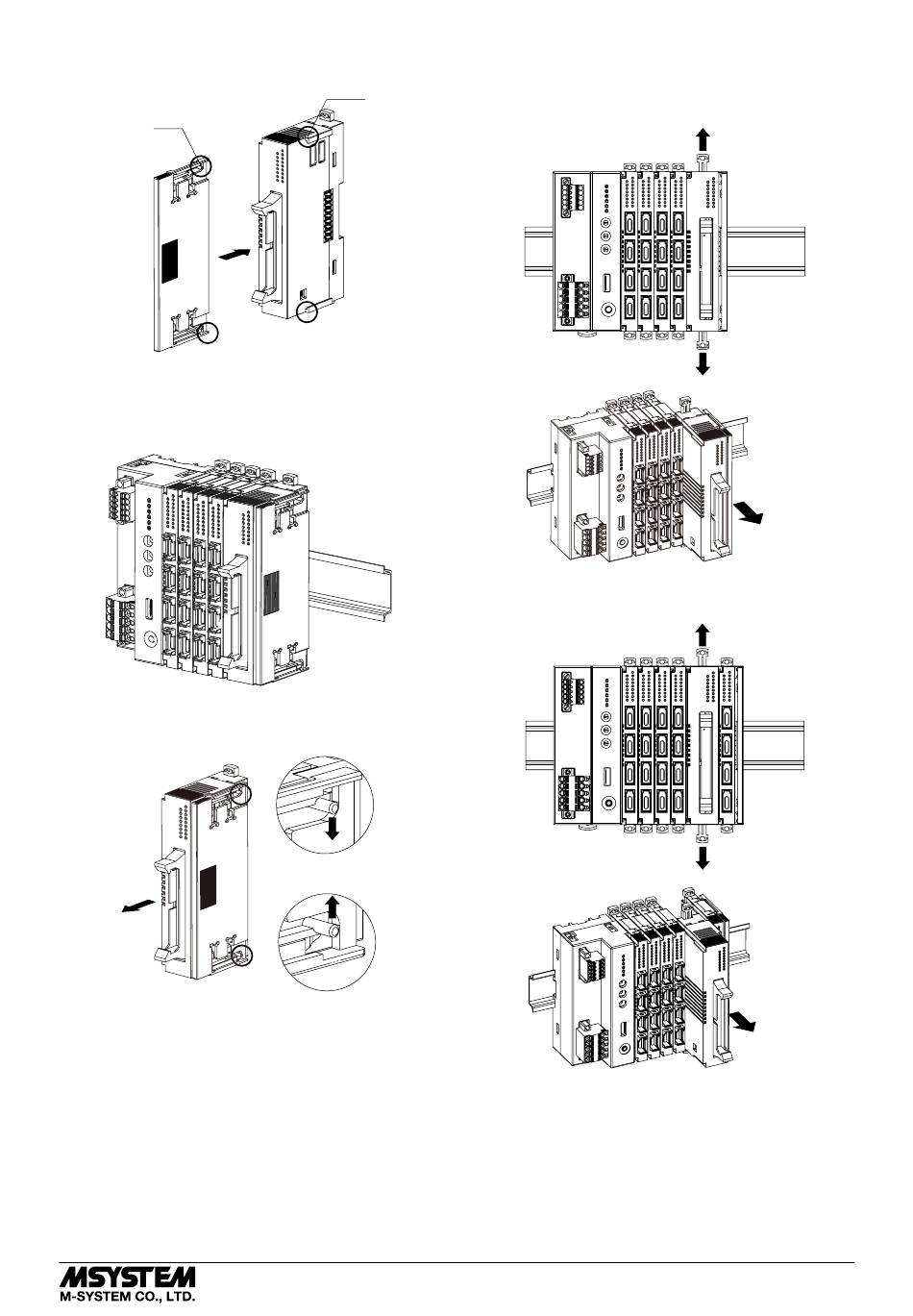

• Protective Cover
Hook
The protective cover is to be attached over the connected I/O
module at the right end.
Align the hooks on the cover with the grooves of the module
and slide it straight until the hooks are latched.
When removing the cover, pull it out while squeezing the
hooks inward.
Groove
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
■ HOW TO UNMOUNT THE MODULE ON DIN RAIL
Release the locking clamps and pull out straight the mod-
ule.
• Removing an intermediate module
Caution !
1) Be careful not to hurt your hand by pointed edges of the
internal bus connector.
2) I/O modules cannot hold tightly on the DIN rail by them-
selves without power/network module.
Secure them to the position if necessary by using DIN
rail end plates.
R8-FS16N
