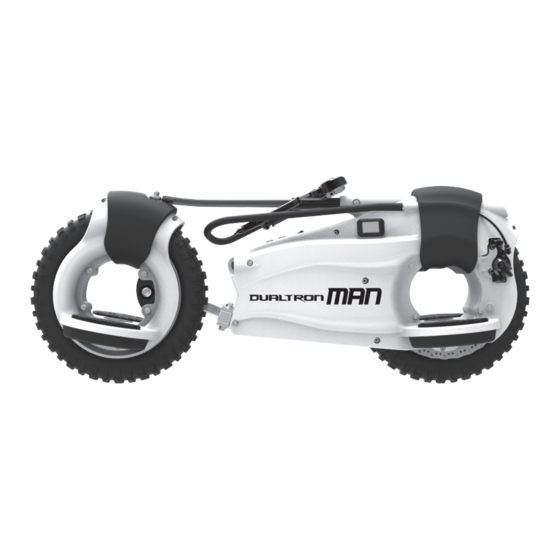

- Page 1 60V Max 2700W BLDC HUBLESS Foot Scooter DualtronMan user manual...
-
Page 2: Table Of Contents
Contents Introduction Cautions Preparations before use Product description Driving parts of the system Checklist before use Control parts description How to use remote control assembly Dashboard setting This manual includes everything the users need to care. Battery charging Please read the manual carefully before use. Please contact the seller for technical support.(www.dual-tron.com) Product specifications - Contents of the box : DUALTRONMAN, Charger, Manual and warranty card... -
Page 3: Introduction
Product introduction Thank you for your purchasing our product. DUALTRONMAN(Electric WHEELMAN)is for leisure activity and it is an extreme electric foot scooter which provide environmentally friendly product as it uses lithium battery. DUALTRONMAN(Electric WHEELMAN) has maximum 2700W of motor output power and it provides powerful torque with a silent and stable power which the users who enjoy trick also can be satisfied. - Page 4 Warning Danger of death or serious injury When you ride the product, there is danger of death or serious injury from losing control, collision, falling down. For a safety riding, the user should read manual carefully and follow. While riding, rider should always wear protective equipments such as a safety helmet, kneepads, elbow pads, and gloves before riding.
-
Page 5: Preparations Before Use
Preparations before use Prepare safety gear - Always wear a full face helmet, gloves and knee, elbow, back born, shoulder pad when riding. - For the first riding, learn the function at the open, flat and clean space. - Before riding, read carefully about warning and maintenance in this manual. - Don’t wear shoes as a slipper, a high hill, sports shoes that have long string during riding for safety riding. - Page 6 Preparations before use Safety gear It can be different for the riding condition and rider’s preference, however, it is recommended to wear the all of the safety gear as full face helmet, elbow pad, knee pad, riding glove, back born pad and shoulder pad.
-
Page 7: Product Description
Product description Acceleration Remote throttle lever control grip Brake lever Rear pad Main power Connecting hose LED taillight Electric brake sensitivity adjusting sensor Charging port(3P) LCD dashboard Auxiliary battery connecting Brake cable port(4P) Brake caliper LED light button Brake mount Align bar Driving motor part Rod end bearing... -
Page 8: Driving Parts Of The System
Driving parts of the system Selectable additional option Installing external auxiliary battery Internal main battery Bearing External auxiliary battery Auxiliary battery carrier Motor * The specification of the external battery and design of the carrier can be changed without notice to improve product quality. | DUALTRONMAN(Electric WHEELMAN) user manual... -
Page 9: Control Parts Description
Control parts description A Power, Charging, LED control panel (1) Main power The ‘I’ means main battery power ON status. The ‘O’ means main battery power OFF, however the ‘O’ is auxiliary battery ON status then it is connected. The auxiliary battery should be removed when you don’t use (1) Main power the product. -
Page 10: How To Use Remote Control Assembly
How to use remote control assembly Throttle lever for acceleration Remote control grip Brake lever for deceleration and stop Hose Electric brake sensitivity adjusting sensor Brake cable One hand remote control grip Hold the grip on the handle bar to control; accelerate and brake. Use throttle Rotation times of the motor can be increased and decreased with the throttle lever squeezing. -
Page 11: Dashboard Setting
Dashboard setting - Press the (2)On/Off while the main power switch ON(I) and can (1) Up button check default screen with time, ODO, RPM and ETC. - Speed can be adjusted with (1),(3) button when it is default screen. (2 Dashboard - User set ting can be set with pressing (1), (3) but ton power simultaneously. -
Page 12: Battery Charging
Battery charging How to charge Cautions when storage the product after riding - Connect charger to the charging port correctly.(If the direction is wrong or use too much power, port can be damaged and the battery and charger can be broken due to short. Is the power off? - Connect the power plug of the charger to the consent. -
Page 13: Product Specifications
Product specifications Product Name DUALTRONMAN Electric WHEELMAN Motor MAX 2700W BLDC HUBLESS MOTOR (Silent wheel drive with big bearing drive system) Model Li-ion battery(EX-Li-Polymer) Capacity 60V 1,065Wh 60V 1,540Wh 60V 1,864Wh 18A / 26A / 31.5A Weight 33kg 32.5kg 33kg Flame: 25.5kg / Battery: 7.5kg(EX+) Standard 2A charger base Charging... -
Page 14: Safety Tips For Riding
Safety tips for riding DUALTRONMAN(Electric WHEELMAN) is a device for leisure sports. As every device for leisure sports needs to be mastered with practicing and balancing, there are some special safety cautions to do. Precautions while riding - Follow the law and One person riding and place for riding regulations of the country in which you intend to use it. -
Page 15: Start Riding
Start riding Step1 Step4 Ready Balancing Step6 Deceleration and stop Put the device down on the flat Hold rail, wall or hand of the helper and put your surface. foot to center of each front and rear tire. From the To decelerate and stop, pull the brake front foot, make shin tight to the device and push the lever. -
Page 16: General Safety Guidelines And Restrictions
General safety guidelines and restrictions - Never carry passengers or allow more than one person at a time to ride the scooter. - Novice riders need to practice how to operate the scooter in the safe place. - Stop the scooter with the brakes when unexpected obstacles suddenly show up. Never use your foot to stop the scooter. - Store the battery fully charged. -
Page 17: Use And Care Tips: Lithium-Ion Battery
Use and care tips : Lithium-ion batter 1. Only use the charger that was supplied with your product to charge lithium-ion battery. Use of an unauthorized charger could cause serious damage to the battery and can cause fire. 2. Charge lithium-ion battery within 0-45℃ and discharge within -20-60℃. Charging and discharging the battery not within the appropriate temperature may dam age the lithium-ion battery. -
Page 18: Important Information Before Riding
The important information before riding - Check features and structure of the product before purchasing. - Use the product after reading the user manual. - Keep the products’ box for the repairing service. - Most products of Minimotors Co. Ltd, are mini motor products and it is classified as an extreme leisure vehicle. - Extreme leisure vehicle needs to be maintained frequently. -
Page 19: Warranty
Warranty 1. The warranty covers only the defect occurred due to a manufacturing fault in the warranty period with normal use. The warranty covers 3months and you need to pay for the repairing after 3months. 2. In this case, you need to pay for the repairing even if it is in warranty period. - If the malfunction is occurred by user as carelessness, self repairing or tuning. - Page 20 MINIMOTORS Co., Ltd. www.dual-tron.com...
