Summary of Contents for Dualtron Mini

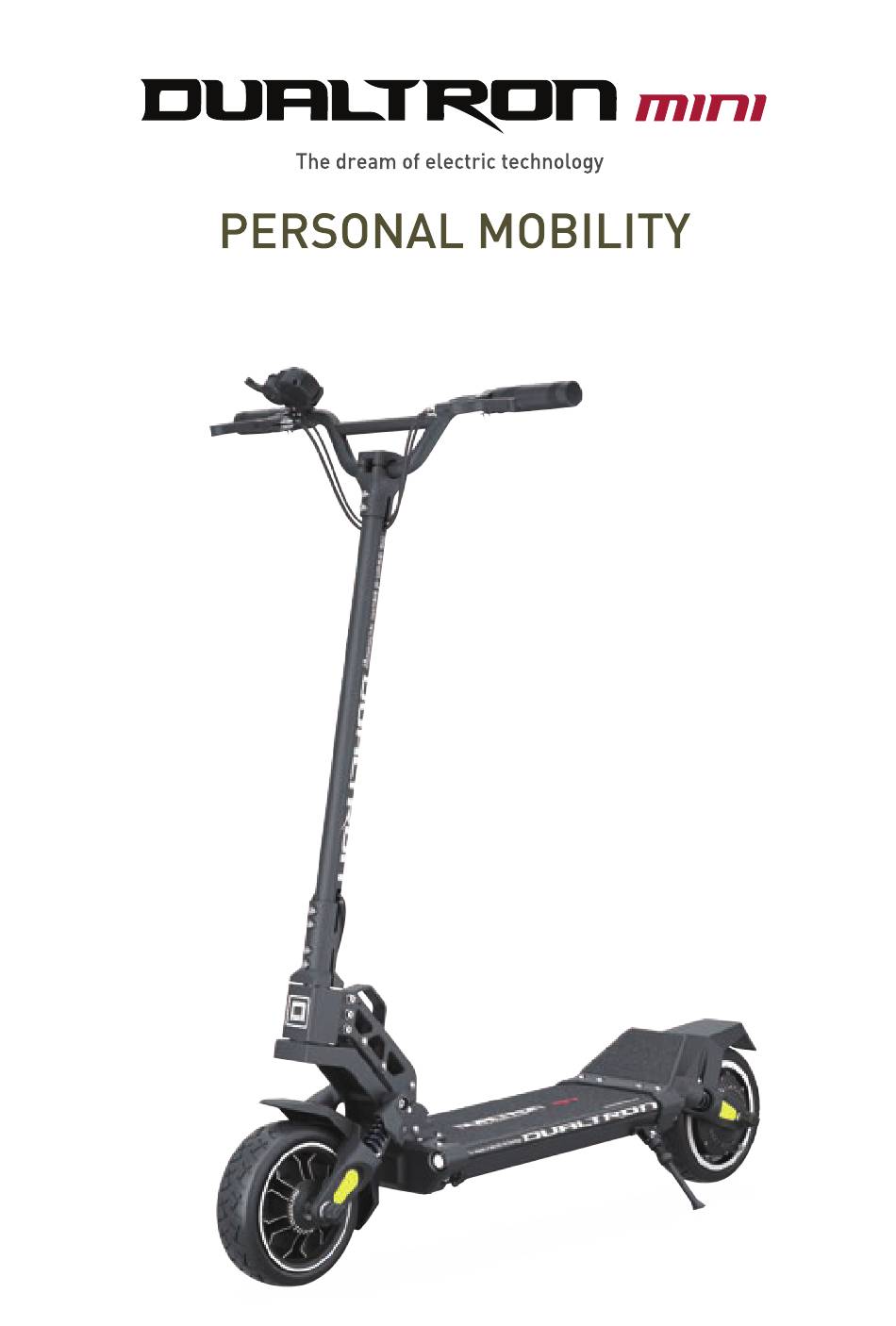

- Page 1 User Manual...
- Page 2 ‘DUALTRON’ brand is a worldwide electric scooter brand name that Electier Co. LTD., designed. 'DUALTRON' is a breakthrough product that combines the world's first dual drive system and the new rubber suspension technology (patent application). It is a proud Korean luxury brand that has won the world electric scooter market exported to more than 20 countries.
- Page 3 Dualtron Mini user manual contents 01. Safety guidelines and restrictions ······································································ 02. Product structure ································································································· 03. Name of each part ································································································· 04. Product components ···························································································· 05. How to use the product ························································································ 06. How to use the instrument panel ··········································································...
-
Page 4: Safety Guidelines And Restrictions
Before Reading Manual Comply with Caution the related laws Novice Elderly Slow mode is recommended Please read this manual carefully before using this product 1) Safety guidelines and restrictions * Even if the it is within the warranty period, you may be liable for any accident caused by any of the following causes. 1. - Page 5 Novice Elderly Novice Elderly Slow mode is recommended Slow mode is recommended 10. Do not drive on steep slopes Acceptable gradeabilityis different for each product. Excessive hill roads exceeding the specification may cause damage to the product(parts) due to temperature cut, overcurrent or low voltage cut, which may cause the product to malfunction.
-

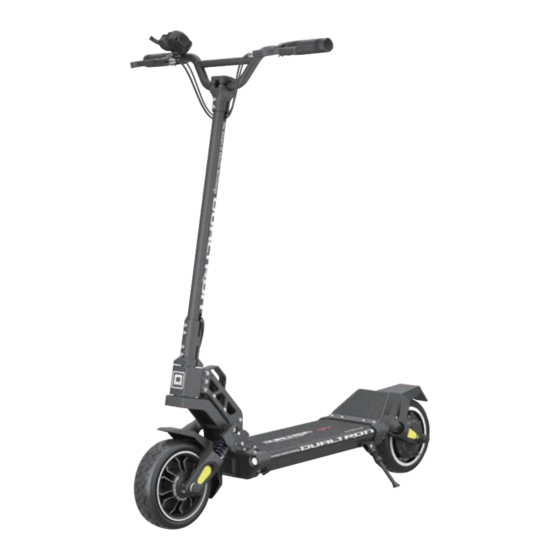

Page 6: Product Size
Product size Standard handle width 600mm 1170mm Footrest width 205mm Footrest width 205mm 410mm 1110mm 1115mm Handle EYE throttle LCD Index finder instrument panel Brake lever throttle(Accellerator) (+Electronic brake) Handle grip... - Page 7 Handle stem Handle post(Steering tube) LED bar Quick fold (pull handle) Rear fender Footboard Rear spring&rubber suspension Front fender Rear light(Brake light) Front spring&rubber suspension Body side LED light Rear motor Front wheel Head light Charging port Front & Rear 9” tube tire...
- Page 8 Nut caps Charger plug User manual LED Remote control Charger Basic tool Top : Default battery charger(2A), Default tool, User manual，Remote control Bottom : Body(Lithum battery included) Assembling of the instrument panel, brake Ejecting the productnumber. Caution Do not hold the handlebar only when lifting the product from the box.
- Page 9 1]Productun folding folding handle index pin 1.Pull the index pin outward Pull the index pin outward as the picture.Ihen Turn it a little, the index pin will get stuck and the folding handle will work.Index pin is used to fix the folding handle to prevent shaking and futher strenqthen the olding system.
- Page 10 Step1. Turning on the instrument panel Press the POWER button on the instrument panel for2 seconds to turn on the instrument panel. You can set the start mode, cruise mode, electronic brake,and ABS function. *The power of the instrument panel will turn off automatically after a few minutes of inactivity.
- Page 11 Step1 Use of rear drum brake + Electric ABS Electric ABS function is designed into all MINIMOTORS products. Before using the scooter, please check if the ABS function turns on or not. It’s available to select the function is on or off by yourself. Setting mode Setting value ABS: OFF...
- Page 12 Speed Speed step power button Speed unit Accelerator Battery balance index finger Km/h throttle 00 : 00 Km/h TIME mode button 00 : 00 Driving time TIME 1) Speed step setting Can adjust with button. Km/h While the instrument panel is on, press to set the speed step.
- Page 13 Speed unit 9(Fixed) 52(Fixed) 15(Fixed) 0(Fixed) 0(Km/h), 1(mp/h) Start method Cruise mode Slow start Max output Battery save 0(Acceleration start), 0(OFF) 0(Off:Power 5~100% 1(MAX SAVE) 1(Kick start) 1(ON) start~5(Slow start) (User adjust) 2(MID SAVE) 3(NO SAVE) MINIMOTORS Electronic brake power LCD brightness control Auto off time setting ABS setting...
- Page 14 Maximum intensity Electronic brake off Moderate intensity * Precautions when using electronic brake immediately after full battery charge The electronic brakes do not operate when the battery is fully charged, so be sure to Caution check and operate this device. When the battery runs out, the electronic brake will operate normally.
- Page 15 7) Self-diagnosis through dashboard ① ① ① ② ① Fault type Diagnosis Solution ① ② ② ③ ② ② ①②③④ ⑤ * If the error information System error ③ ③ ④ ③ [ M ] appears, immediately stop ⑥ ③ ④...
- Page 16 1) Basic charging method 1. Open the chargingport cap and connect it to the connector of the charger and connect it to the household outlet. 2. Charging status indicator 3. Be sure to close the chargingport cap when driving or storing except when charging. 4.
- Page 17 1. Care Lithium batteries should be protected from direct exposure to children and pets. 2. Performance ① Lithium battery is affected by external temperature. In winter, when the temperature is low, the performance of the battery is temporarily deteriorated and the mileage and power output is reduced.
- Page 18 1) Required checking before use 1.Check throttle and handle Operate the accelerator throttle lever about 2~3 times to check whether it returns to the home position. Be caretulthat excessive throttle leaning and manipulation of tne throttle can cause malfunction due to internal parts damage. Check the fastening condition and clearance of the QR lever on the handle.
- Page 19 ④ Fatigue breakdown and maintenance parts may differ from the example conditions depending on the driving environment and the operating conditions. Also check parts other than the replacement cycle (maintenance parts) at all times to check for any signs of abnormality. 20 Dualtron mini User Manual...
- Page 20 Important notice * Metal vibration may occur due to motor vibration, vibration of the brake disc and pad during the load section that accelerates during driving. (About 15 ~ 30Km, different for each product) This is a phenomenon in which all revolutions (fans, automobiles, ships, etc.) are vibrating at a specific rotational frequency (rpm) rather than the product.
- Page 21 Front and rear dual suspensions designed by Minimotors. The suspention has two important parts, the spring and the rubber ,which have a combined funtion to make the performance perfect. The suspension is easy to remove and assemble with a rubber hammer. Step1.
- Page 22 1450 Motor Battery capacity LG battery 52V21Ah 52V19.2Ah 52V17.5Ah 52V12.8Ah Product weight Around 22kg Battery included weight When using standard Charging time(1.7A) 12hr 11hr 10hr 7.5hr charger(1.7A) When using quick charger 1.9hr Charging time(6.5A) 2.9hr 2.5hr (6.5A) 75kg load,25km/h flat road Max mileage 60Km 55Km...
- Page 24 DUALTRON MINI Electric Scooter User Manual...
