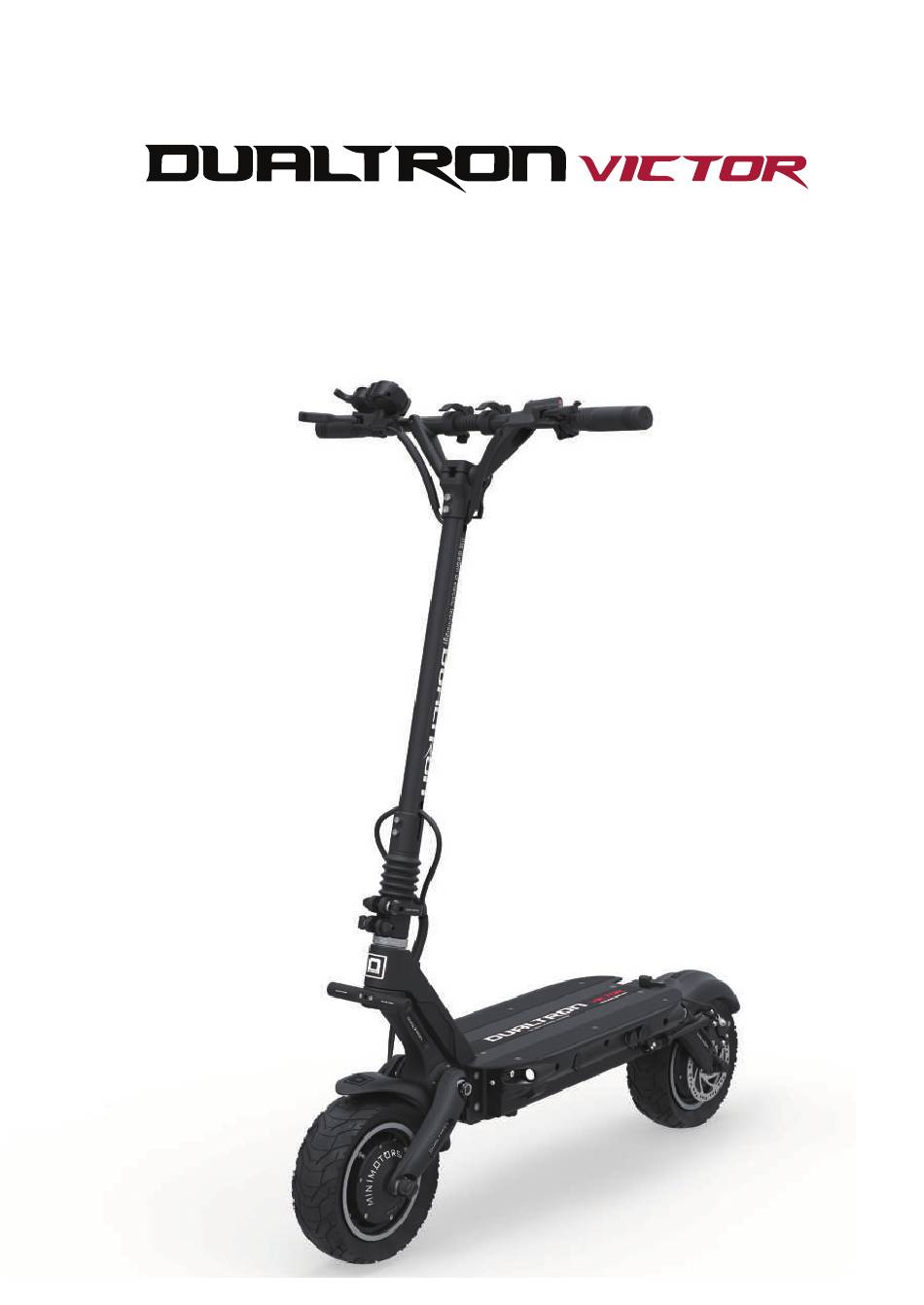

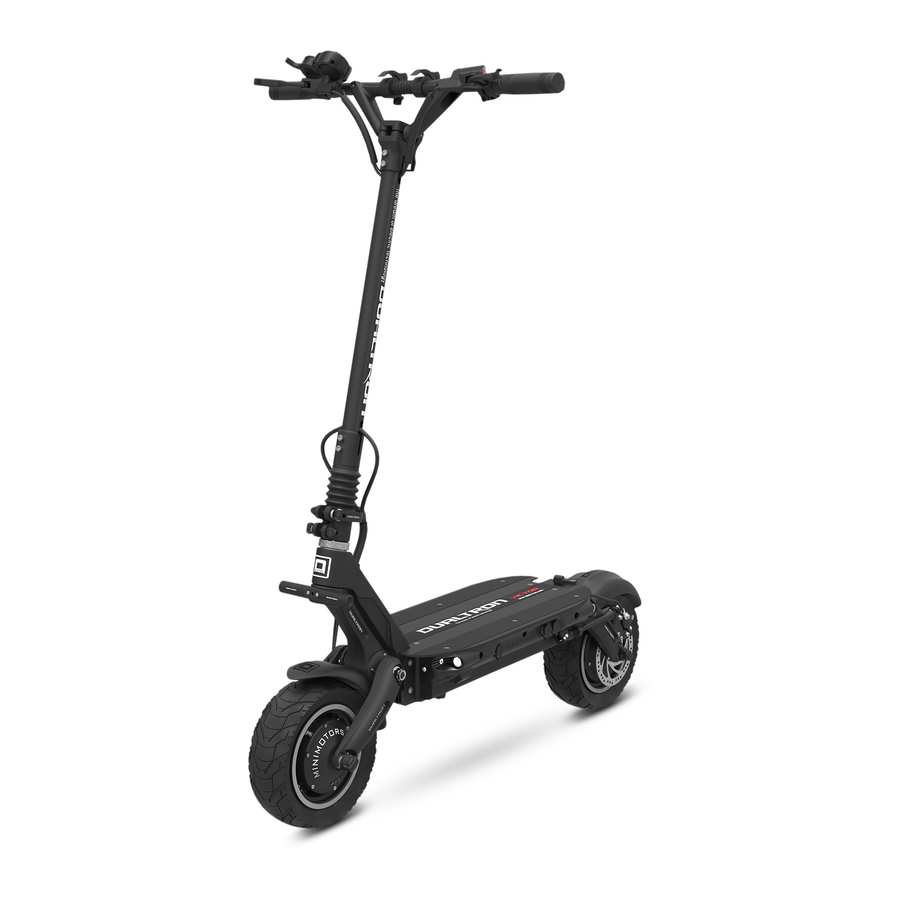

- Page 1 The dream of electric technology PERSONAL MOBILITY User Manual...
- Page 3 Dualtron Victor user manual contents 01. Safety guidelines and restrictions ······································································· 02. Product structure ·································································································· 03. Name of each part ································································································· 04. Product components ···························································································· 05. How to use the product························································································· 06. How to use the instrument panel ·········································································· 07. LED BAR funtions····································································································...
- Page 4 If there is a risk of overturning, sudden deceleration should be done safely. Do not apply any unusual behaviors or artificial forces, such as stopping with No emergency braking your feet. Emergency brake Dualtron Victor User Manual Dualtron Victor User Manual 초보자 초보자...
- Page 5 11. It is prohibited to drive with all the way by holding the handle with one hand. 12. Do not ride or drive when the kick stand is down. Dualtron Victor User Manual Dualtron Victor User Manual 급제동 금지...
- Page 6 Product structure Product size Unfolded Standard handle width 609mm 1247mm Footrest width 243mm 1110mm Folded Footrest width 243mm 560mm 1110mm *Errors may occur depending on the measurement method. Dualtron Victor User Manual...
- Page 7 Red tail light/brake light Rear motor Red tail light/brake light Singal/dual switch ECO switch Left brake switch Right brake switch Front motor Title DUALTRON VICTOR TWO-IN-ONE MOTOR CONTROLLER Size Number Revision andlebar EYE throttle LCD Index finder instrument panel Brake lever...
- Page 8 LED lamp button Front lamp QR lever Rear fender Auxiliary battery locking slide connecting port Rear suspension Rear light(Brake light) Front fender Rear motor Front suspension Main power Charging port switch Front motor Front&Rear 10” tube tire Dualtron Victor User Manual...
- Page 9 -Adjust the position of the brake and even if the product is lost or stolen. tighten the fixing bolts with a 5mm hexagon (May vary depending on branch wrench. office situation.) Dualtron Victor User Manual...
- Page 10 Press “IC Set” button again to end the setting. Multicolor light mode selection block: “C3”, 3 colors of light shine together;“C7”, 7 colors of light shine together;“C16”, 16 colors of light shine together “CS”, single color light shines. Dualtron Victor User Manual...
- Page 11 This phenomenon may be caused by corrosion of the throttling, immersion of the throttle, disconnection of the magnet, broken off levers, and breakage of the spring. Do not pull the throttle lever strongly. Dualtron Victor User Manual...
- Page 12 QR lever outward and lay the then it is easy to move by attaching the steering tube down while raising the handle with the folding lock device (not fixed slide. available when mounting the seat mount). Dualtron Victor User Manual Km/h...
- Page 13 SET RPM O FF correct information will not be displayed. Km/h Km/h Km/h ⑧ ⑨ 00 : 00 Km/h Km/h Dualtron Victor User Manual TRIP O D O D ST TIME C HA ①②③④ ⑤ [ M ] ⑥ Km/h Mp/h...
- Page 14 SET RPM O FF ⑧ ⑨ ⑧ ⑨ ⑧ ⑨ 5) Setting of Electronic brake Displayed when the brake lever is operated Km/h Km/h Km/h Km/h Km/h Km/h Km/h Km/h Km/h Maximum intensity Electronic brake off Moderate intensity Dualtron Victor User Manual...
- Page 15 ⑦ ⑨ ⑧ ② * The number is displayed when the brake lever is operated. (When ③ ③ the indicator lights, the accelerator does not operate.) ④ ④ ⑤ ⑤ Dualtron Victor User Manual ⑥ ⑥ ⑦ ⑨ ⑧...
- Page 16 12. Charging terminals should be firmly contacted during charging and should not be used if terminals are corroded or damaged. 13. When disconnecting the charger from the product, it is safe to hold the terminal without holding the wire. Dualtron Victor User Manual...
- Page 17 Dualtron Victor User Manual...
- Page 18 Error messages on the instrument cluster ● When rain or wet with water or in a similar situation ● When the throttle is returned to its original position ● When other driving is judged to be unreasonable ● Dualtron Victor User Manual...
- Page 19 ④ Fatigue breakdown and maintenance parts may differ from the example conditions depending on the driving environment and the operating conditions. Also check parts other than the replacement cycle (maintenance parts) at all times to check for any signs of abnormality. Dualtron Victor User Manual...
- Page 20 If the above measures are not taken, please visit the nearest branch and take a safety check. There may be another problem. Caution Dualtron Victor User Manual...
- Page 21 Replace the cartridge when it is missing. Garage height (It can be changed depending on weight and taste) Intermediate stage Garage lowered 3. Align both suspension arms to the desired angle and reassemble using Loctite (screw lock). Dualtron Victor User Manual...
- Page 22 1110 x 279 x560mm Front and Rear Hydraulic brake[ZOOM]+Electric ABS. Brake Front&Rear-5kinds of rubber cartridge Suspension The softest in Dualtron series replaceable design EYE throttle is applied as the default Cruise / Electric brake / Auto save Instrument panel option.(Bettery level, TRIP, ODO, Time, function(3minutes) Speed display and mode change.)
- Page 23 MEMO Dualtron Victor User Manual...
- Page 24 DUALTRON VICTOR Electric Scooter User Manual Zhejiang Minimotors Bike Co.,Ltd. No.1,Baolong road,Lanjiang Street, Lanxi Economic development zone, Jinhua city,Zhejiang province,China Tel:+86-173-6971-8326 Since 1999 www.dual-tron.com...
