Control panel Loading the racks, 6 Lower rack Cutlery basket Upper rack Start-up and use, 7 IDF 125 Starting the dishwasher Measuring out the detergent Wash options Wash cycles, 8 Table of wash cycles Rinse aid and refined salt, 9...
All manuals and user guides at all-guides.com Installation Positioning and levelling see Assistance see adjacent information see the Assembly instruction sheet New Acqua Stop Connecting the water and electricity supplies see figure...
All manuals and user guides at all-guides.com Advice regarding the first wash cycle chapter entitled Rinse aid and refined salt see chapter entitled Rinse aid and refined salt see figure Technical data width 60 cm Dimensions height 85 cm depth 60 cm Capacity 12 standard place-settings Water supply...
All manuals and user guides at all-guides.com Electrical Connection As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the If your appliance is supplied with a 13 amp. fused terminal in your plug, proceed as follows: plug it can be plugged into a 13 amp socket for connect Green &...

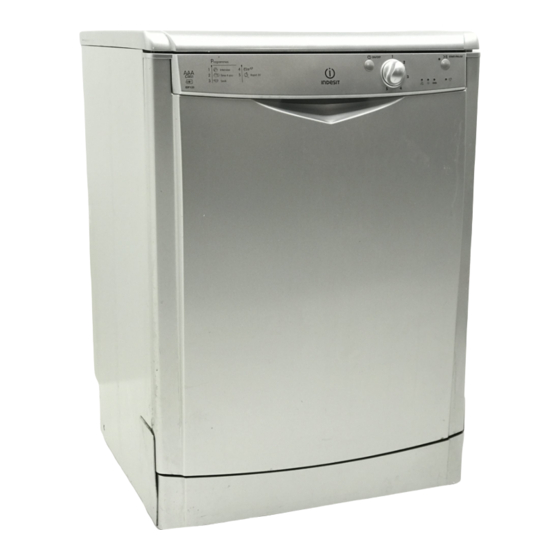

All manuals and user guides at all-guides.com Description of the appliance Overall view Upper rack Upper sprayer arm Tip-up compartments Rack height adjuster Lower rack Lower sprayer arm Cutlery basket Washing filter Salt dispenser Detergent and rinse aid dispensers Data plate Control Panel Control panel Start/Pause button...
All manuals and user guides at all-guides.com Loading the racks After loading the appliance, check that the sprayer arms can rotate freely. The height of the upper rack should ideally be adjusted Lower rack WHEN THE RACK IS EMPTY. Never lift or lower the rack on one side only. Loading examples.
All manuals and user guides at all-guides.com Start-up and use Starting the dishwasher Measuring out the detergent 1. Turn the water tap on. 2. Press the ON/OFF button: all the indicator lights on the control panel will light up for a few seconds. 3.
All manuals and user guides at all-guides.com Wash cycles Detergent Wash Wash cycle (A) = compartment A cycles duration Wash cycle selection Wash cycle (B) = compartment B which (tolerance instructions include ±10%) Powder Liquid Tablets drying Hrs. Min. Heavily soiled dishes and pans (not to be used for 1.Intensive 30 g (A)
All manuals and user guides at all-guides.com Rinse aid and refined salt Only use products which have been specifically designed for dishwashers. Do not use table salt or industrial salt, or washing up liquid. we recommend that you add salt, especially if you live in an area where the water is hard or very hard.
All manuals and user guides at all-guides.com Care and maintenance Clean the water inlet filter at the tap outlet regularly. - Turn off the water tap. - Unscrew the end of the water inlet hose, remove the filter and clean it carefully under running water. - Replace the filter and screw the water hose back into position.
All manuals and user guides at all-guides.com Precautions and advice Saving energy and respecting the environment General safety see Wash cycles Table of wash cycles see Start-up and use see Start-up and use Disposal...
All manuals and user guides at all-guides.com Troubleshooting 195071957.00 06/2008- Xerox Business Services Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance. Problem: Possible causes / Solutions: The dishwasher does not start. •...
