Installation Guide
MAGNUM

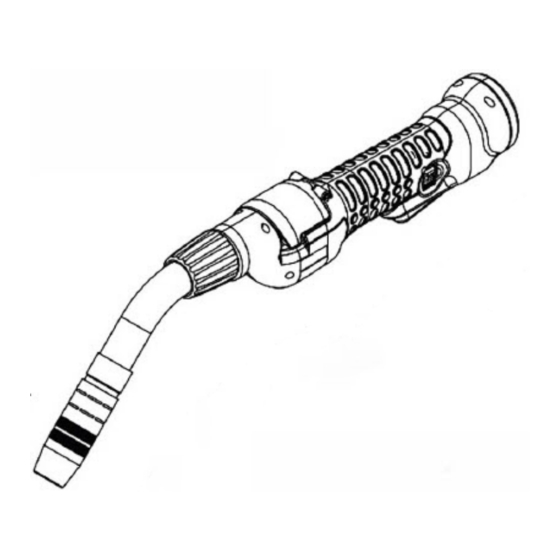

PRO AL G225A/G450W LINER INSTALLATION GUIDE
®
Register your machine:
www.lincolnelectric.com/register
Authorized Service and Distributer Locator:
www.lincolnelectric.com/locator
Save for future reference
Date Purchased
Code: (ex: 10859)
Serial: (ex: U1060512345)
IM10577
I lssue Date Jul - 20
© Lincoln Global, Inc. All Rights Reserved.
For use with machines having Code Numbers:
K4795-[]
K4796-[]
K4797-[]
K4798-[]
K3355-[]
K3356-[]
K3357-[]
K3358-[]
K3420-[]
K3421-[]
K3422-[]
K3423-[]
Advertisement
Related Manuals for Lincoln Electric MAGNUM PRO AL G450W
Summary of Contents for Lincoln Electric MAGNUM PRO AL G450W
- Page 1 Installation Guide MAGNUM PRO AL G225A/G450W LINER INSTALLATION GUIDE ® For use with machines having Code Numbers: K4795-[] K4796-[] K4797-[] K4798-[] K3355-[] K3356-[] K3357-[] K3358-[] K3420-[] K3421-[] K3422-[] K3423-[] Register your machine: www.lincolnelectric.com/register Authorized Service and Distributer Locator: www.lincolnelectric.com/locator Save for future reference Date Purchased Code: (ex: 10859) Serial: (ex: U1060512345)
-
Page 2: Safety Depends On You
THANK YOU FOR SELECTING A QUALITY PRODUCT BY KEEP YOUR HEAD OUT OF THE FUMES. DON’T get too close to the arc. LINCOLN ELEC TRIC. Use corrective lenses if necessary to stay a reasonable distance away from the arc. READ and obey the Safety Data PLEASE EXAMINE CARTON AND EQUIPMENT FOR Sheet (SDS) and the warning label DAMAGE IMMEDIATELY... -
Page 3: Section A: Warnings
W117.2. A Free copy of “Arc Welding Safety” booklet E205 is available from the Lincoln Electric Company, 22801 2.d. All welders should use the following procedures in order to St. Clair Avenue, Cleveland, Ohio 44117-1199. -
Page 4: Electric Shock Can Kill
SAFETY ELECTRIC SHOCK ARC RAYS CAN BURN. CAN KILL. 3.a. The electrode and work (or ground) circuits are 4.a. Use a shield with the proper filter and cover plates to protect your electrically “hot” when the welder is on. Do eyes from sparks and the rays of the arc when welding or not touch these “hot”... - Page 5 SAFETY WELDING AND CUTTING CYLINDER MAY EXPLODE IF SPARKS CAN CAUSE DAMAGED. FIRE OR EXPLOSION. 7.a. Use only compressed gas cylinders containing the correct shielding gas for the process used 6.a. Remove fire hazards from the welding area. If and properly operating regulators designed for this is not possible, cover them to prevent the welding sparks the gas and pressure used.
- Page 6 TABLE OF CONTENTS REMOVAL ................................7 REPLACEMENT ................................8 PARTS LIST .......................PARTS.LINCOLNELECTRIC.COM CONTENT/DETAILS MAY BE CHANGED OR UPDATED WITHOUT NOTICE. FOR MOST CURRENT INSTRUCTION MANUALS, GO TO PARTS.LINCOLNELECTRIC.COM.
- Page 7 ® MAGNUM PRO AL GUN LINER INSTALLATION GUIDE REMOVAL LINER REMOVAL 4. Using a 3/32” allen key remove the setscrew holding the liner This procedure will aid in the removal of the Magnum PRO AL conduit in place, and slide out through the cable strain relief. Gun liner.
- Page 8 ® MAGNUM PRO AL GUN LINER INSTALLATION GUIDE REPLACEMENT LINER REPLACEMENT 6. Close handle and tighten the six screws for the handle with 5/64” This procedure will aid in the replacement of the Magnum allen key. PRO AL Gun liner. Carefully review all steps and corresponding illustrations to ensure proper replacement.
- Page 10 We respond to our customers based on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with respect to such information or advice.
