Sealey AK9637D.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAFETY
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools and
‰
equipment.
DO NOT use caliper or micrometer if damaged.
8
Maintain caliper or micrometer in good and clean condition for best and safest performance.
9
Keep the work area clean, uncluttered and ensure there is adequate lighting.
9
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery. Contain or tie back long hair.
9
Keep children and unauthorised persons away from the work area.
9
DO NOT use the micrometer or caliper for any purpose other than for which it is designed.
8
DO NOT get micrometer or caliper wet or use in damp or wet locations, or areas where there is condensation. Keep micrometer clean
8
using a dry cotton cloth only.
DO NOT dip or submerge the micrometer or caliper in any type of liquid.
8
DO NOT expose micrometer or caliper to bright sunlight or dust.
8
DO NOT dis-assemble micrometer or caliper. The device must be checked by qualified service personnel only.
8
DO NOT apply any voltage to the micrometer or caliper i.e. with an electric marker pen.
8
The micrometer and caliper are precision instruments, treat with care, avoid using force and DO NOT subject to knocks or shocks.
9
Take particular care not to damage or scratch the scale surface.
9
Use micrometer or caliper in reasonably constant temperature conditions of approximately 20°C.
9
When not in use, store micrometer in a safe, dry, childproof location.
9
2. INTRODUCTION
Seven button digital micrometer with satin chrome thimble and sleeve with hardened and tempered, satin finish stainless steel digital
vernier caliper. Large, easy-to-read LCD read-outs. Displays switchable between Metric and Imperial units. Zero display at any point allows
comparative measurement. Supplied in storage case with micrometer adjustment wrench.
3. SPECIFICATION
Micrometer
Range: ................................................................0-25mm (0-1")
Graduation: ............................................... 0.001mm (0.00005")
Battery: ...................................................... 1 x LR44 (supplied)
Accuracy: .................................................. ±0.002mm (0.0001")
Vernier Caliper
Range: ..........................................................0-150mm(0-6")
Resolution: ................................................ 0.01mm(0.0005")
Accuracy <100mm: ................................... ±0.02mm(0.001")
Accuracy >100mm: ................................... ±0.03mm(0.001")
Battery: ................................................. 1 x LR44 (supplied)
© Jack Sealey Limited

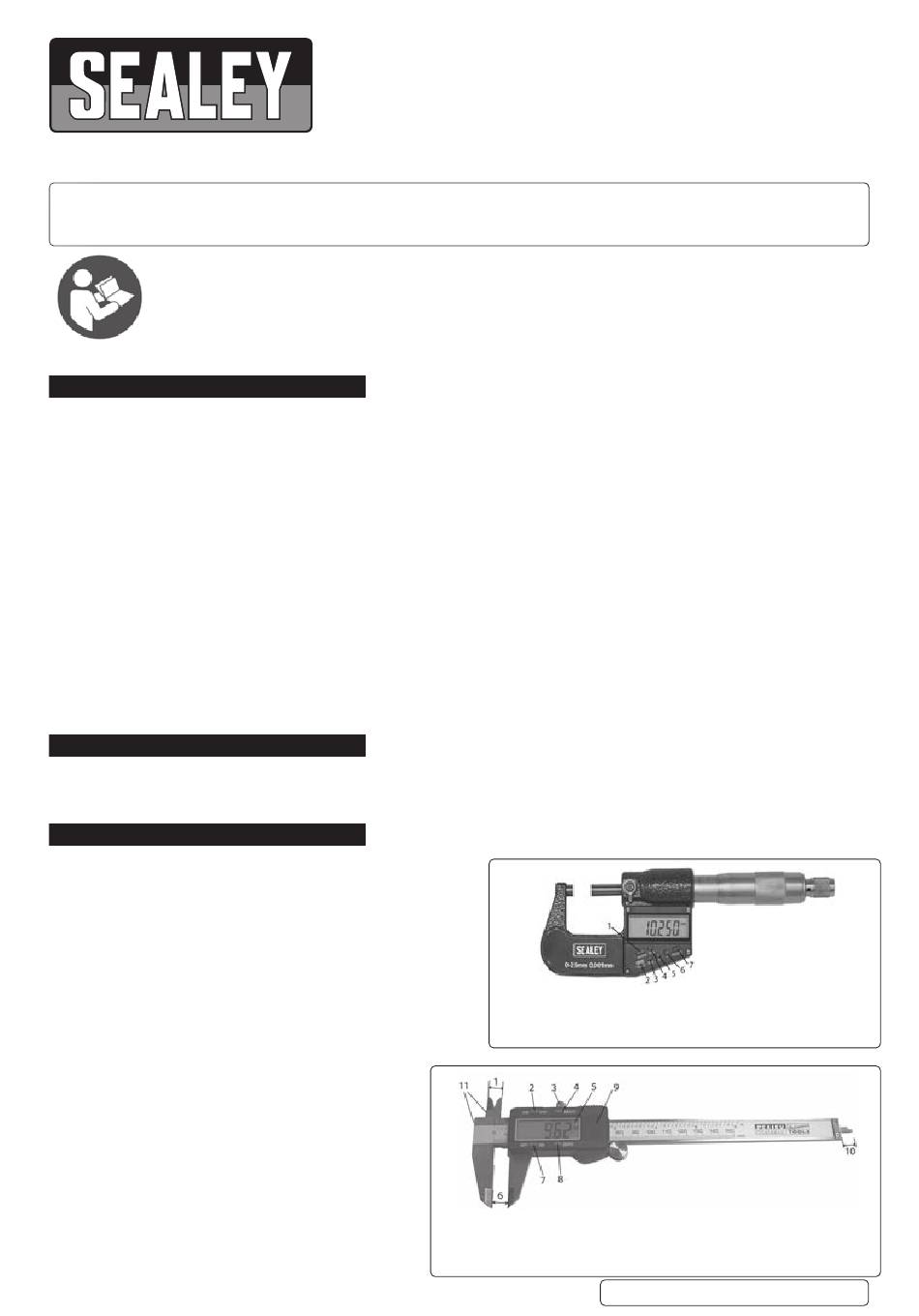

DIGITAL MEASURING SET
AK9637D.V2
MODEL NO:
1. Metric/Imperial conversion
2. Data hold
3. Relative/absolute measuring
4. Tolerance setting
1. Internal Measure
2. Metric/Imperial
Selector
3. Locking Screw
Original Language Version
5. Positive setting
6. Negative setting
7. Reset
4. ABS/0 Switch 8. Zero Control
5. LCD Display 9. Battery Cover
6. External Measure 10. Depth Measure
7.On/Off Control 11. Step Measure
AK9637D.V2 Issue 3 02/07/2020
