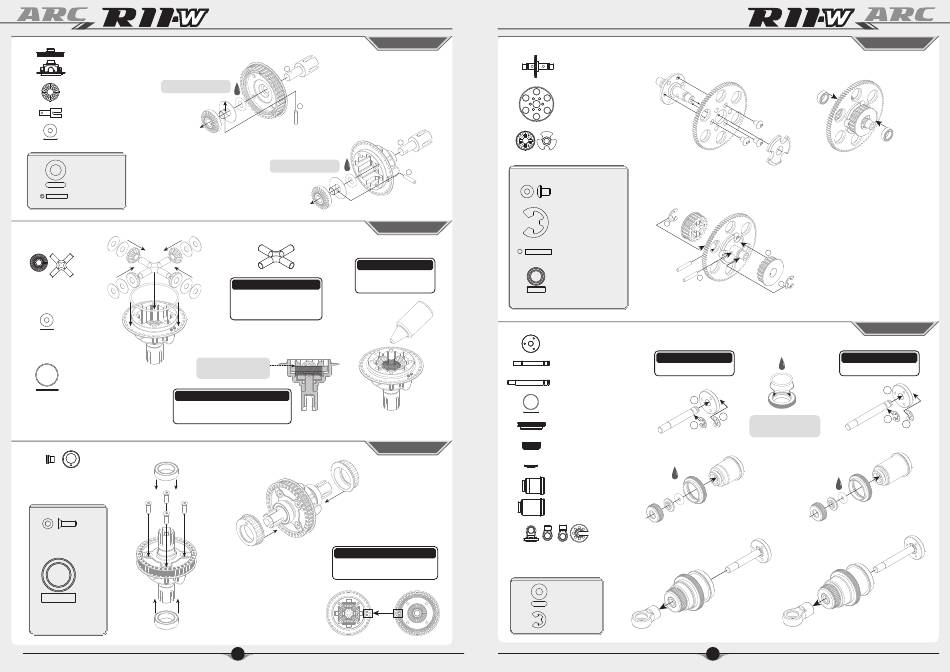

ARC R11-W Manual

R10102E
Rear Diff Case
Apply Silicone Oil
R101110
Diff Gears (with Axle)
R103110
Gear Diff Out Drive Spring Steel
R103024
Gear Diff Shim Big (4)
R104006
O'ring 5x2 (4)
R106101
Ø2x9.8 Pin (10)
(4pcs)
R101110
Diff Gears (with Axle)
R103023
Gear Diff Shim Small (8)
Fill oil to top of axle
as pictured here
NOTICE
R104005
O'ring 26x1 For Diff Case (2)
We recomment using 1.5 grams
of sillicone diff oil.
(1pcs) (4pcs)
R111160
R11 Eccentric Hub (4)
R105201
2.5x8mm Flat Screw (10)
R106021
10x15x4mm Ball Bearing (4)
BAG 01
1
2
1
Apply Silicone Oil
2
BAG 01
NOTICE
Front Diff Oil #60000
Rear Diff Oil #10000
NOTICE
Trim any excess flashing
from the diff gear axle at
the mold injection point.
BAG 01
NOTICE
Diff case direction needs to
match as below.
01
R102004
Spur Axle Alu
R104101
CNC Spur 84T(48dp)
R10102C
19T Belt Pulley Set (2)
R105103
3x4 Round Screw (10)
R105504
E-Clip 4mm (8)
3
R106104
Ø2x11.8mm Pin (10)
1
R106010
5x8x2.5mm Ball Bearing (4)
R104017
Shock Piston Big Bore 1.1mm x3 (4)
NOTICE
R103019
Shock Shaft Short (2) Front Shock-Short
R103013
Shock Shaft (2)
2
R104013
O'ring 13x1 (2)
R112032
1
R11 Shock Adj Nut-Black (2)
R112030
R11 Shock Low Cap-Black (2)
R104015
Shock Shaft Shim (4)
R102029
Shock Body Alu Short (2)
R102067
Shock Body Long Big Bore (2)
Front Shock (Short) x 2Set
(4pcs) (2pcs) (2pcs) (4pcs)
R101130
Shock Ball Joint Set Big Bore
R104002
O'ring 3x2 (4)
R105501
E-Clip 2mm (10)
BAG 01 BAG 01
2
3
BAG 02
NOTICE
Rear Shock-Long
2
3
1
Apply shock oil
before assembly
Rear Shock (Long) x 2Set
02
3
