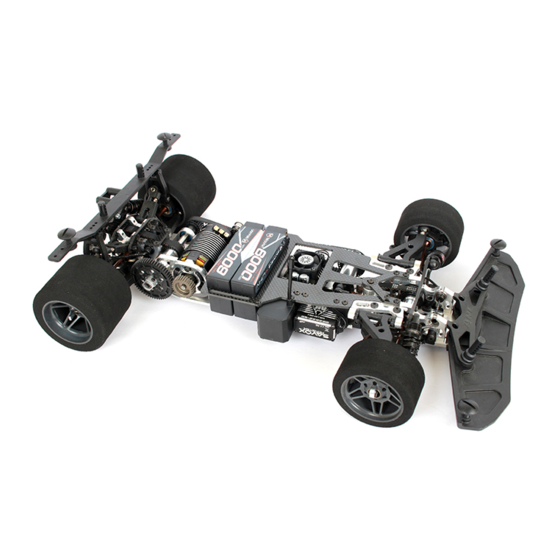

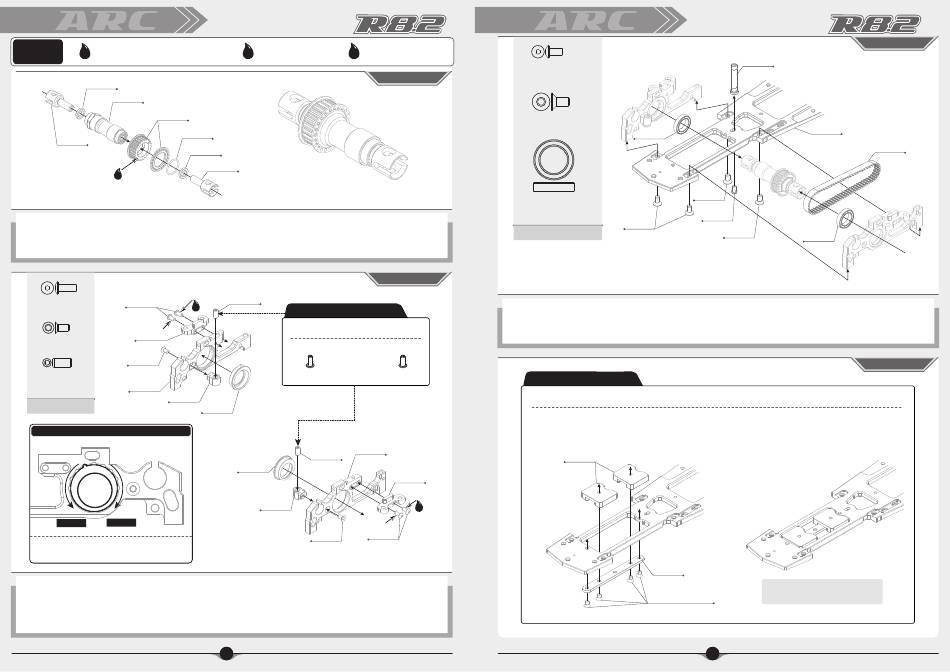

ARC R82 Manual

=Apply Thread Lock Adhesive
NOTICE
TH
R801104
R802019
R801111
R804020
R803059
R801104
CA
R801104 One Way Plastic Shims
R801111 Pulley Set -Front
R802019 Front One Way
R105105
R105105
3x8 Round Screw (10)
TH
R802020
R105203
3x6mm Flat Screw (10)
R105203
R805052
4x8mm Set Screw (10)
R812041
R801020
1:1 Scale
NOTICE
Tighten
Loosen
Initial setup of the front one way axle, please
adjust belt tension after first run.
R105105 3x8 Round Screw (10)
R105203 3x6mm Flat Screw (10)
R801020 Downstop Nut Holder (2)
R801040 Bearing Bushing -Solid Axle (2)
=Apply CA Glue =Apply Grease
CA GE
R803059
R803059 Front One Way Cup (2)
R804020 O'Ring 10x1.5 (6)
R805052
Option Parts (Not Included)
R813005
Dowstop Adjust Screw (4)
R801040
R812040
R805052
R801040
R801020
R105105
R105203
R802020 Front Upper Arm Bracket Base
R805052 4x8mm Set Screw (10)
R812040 R8.1 Front Bulkhead-L V2018
R812041 R8.1 Front Bulkhead-R V2018
01
R105104
3x6 Round Screw (10)
BAG 01
R805201
4x8mm Flat Screw (10)
R806020
12x18x4mm Ball Bearing (4)
1:1 Scale
BAG 01
R105104
R803040
R804030
Option Parts (Not Included)
R8.2 CHASSIS WEIGHT ADJUSTMENT
The R8.2 Chassis weight can be adjust by using R828004 R8.2 Chassis weight holder and R813001 R8.1 Slide
Weight -Brass 15g, More weight in front end will increase stability ,The weight adjustment system can add
R813001x1 of 15g or 2pcs of 30g.
R813001
R802020
TH
R803040
R806020
R805201
R105104
R805201
R805201
3x6 Round Screw (10)
Servo Saver Post
Front Belt 201
R828004
R805010
(Included in R828004)
02
BAG 01 BAG 01
R822003
R804030
R806020
R805201 4x8mm Flat Screw (10)
R806020 12x18x4 Ball Bearing (4)
R822003 R8.2 Main Chassis
BAG 01
R813001(15g) x2
30g weight increase in front end.
