This gas grill must be used only outdoors in a well-ventilated space and must not be used inside a
building, garage, screened-in porch, gazebo or any other enclosed area.
!
DANGER
IF YOU SMELL GAS:
• Shut off gas to the appliance.
• Extinguish any open flame.
• Open lid.
• If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
Adults and especially children should be alerted to the hazards of high surface temperatures.
Young children should be supervised near the gas grill.
Notice to Installer: Leave these instructions with the grill owner for future reference.
N415-0580-AU REV - MAy 11.22
!
Do not try to light this appliance without
reading the "lighting" instructions section of
this manual.
Do not use or store gasoline or other flammable
liquids or vapors near this appliance.
A ULPG cylinder not connected for use must
not be stored near this or any other appliance.
If the information in these instructions is not
followed exactly, a fire or explosion may result,
causing property damage, personal injury or
death.
Wolf Steel Ltd.
214 Bayview Drive,
Barrie, Ontario, CANADA L4N 4y8
grills@napoleon.com
APPLY SERIAL NUMBER LABEL FROM CARTON
Serial No.
XXXXXX000000
MODEL NO.
DO NOT DISCARD

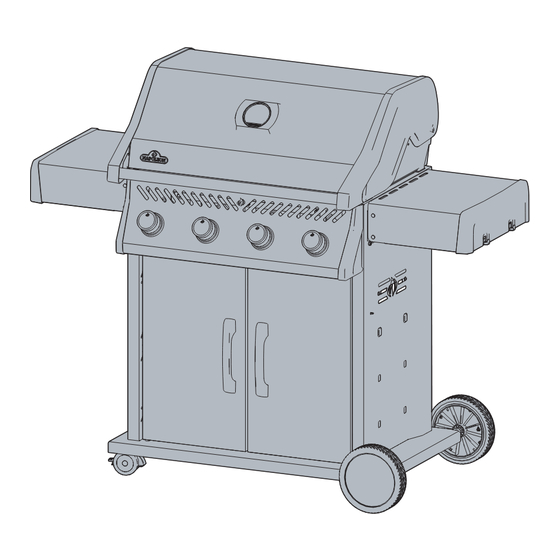

ROGUE 525-1
WARNING
IAPMO GMK10539
AS/NZS 5263.1.7
www.napoleon.com
EN
PG.17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Napoleon ROGUE 525-1
Summary of Contents for Napoleon ROGUE 525-1
- Page 1 APPLY SERIAL NUMBER LABEL FROM CARTON Serial No. XXXXXX000000 MODEL NO. PG.17 DO NOT DISCARD ROGUE 525-1 DANGER WARNING IF YOU SMELL GAS: Do not try to light this appliance without reading the “lighting” instructions section of • Shut off gas to the appliance.
- Page 2 NAPOLEON. NAPOLEON warrants that components in your new NAPOLEON product will be free from defects in material and workmanship from the date of purchase, for the following period: Aluminum castings / stainless steel base ...........
-
Page 3: Safe Operating Practices
• Never use lighter fluid in a gas grill. • Use charcoal briquettes only with a Napoleon charcoal tray designed for this unit. • Burner controls must be off when turning supply cylinder or natural gas supply valve on. •... - Page 4 25% of total wall area total wall area In the case of balconies, at least 20% of the total of the side, back and front wall areas shall be and remain open and unrestricted. www.napoleon.com N415-0580-AU REV - MAy 11.22...
- Page 5 DIMENSIONS ORIFICE SIZES ULPG MAIN BURNER 1.65 mm SIDE BURNER (INFRARED) 1.07 mm REAR BURNER 1.15 mm 1.15 mm 1.85 mm SIDE BURNER (FLAME) 1.45 mm N415-0580-AU REV - MAy 11.22 www.napoleon.com...
-
Page 6: General Information
The screw within the pressure tap must always be kept tight, except when performing a pressure test on the regulator (qualified service personnel only). www.napoleon.com N415-0580-AU REV - MAy 11.22... -
Page 7: Gas Hook-Up Instructions
Do not use tools. Leak test all joints prior to using the grill. A leak test must be performed annually and each time a cylinder is hooked up or if a part of the gas system is replaced. N415-0580-AU REV - MAy 11.22 www.napoleon.com... -
Page 8: Leak Testing Instructions
Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommended by the Napoleon Customer Solutions department and have the grill inspected by a certified gas installer. STOP If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the grill inspected by a certified gas installer or dealer. -
Page 9: Lighting Instructions
5. If lighting the unit with a match, clip the match into the supplied lighting rod. Hold the lit match down through the grill and sear plate while turning the corresponding burner valve to high. N415-0580-AU REV - MAy 11.22 www.napoleon.com... -
Page 10: Cooking Instructions
Should a flare-up occur, move food away from the flames and reduce the heat. Leave the lid open. See Your All Season Grill cookbook by Napoleon for more detailed instructions. Direct Cooking: Place food to be cooked on the grill directly over the heat. This method is generally used for searing or for foods that do not require prolonged cooking times such as hamburgers, steaks, chicken pieces, or vegetables. -
Page 11: Cleaning Instructions
Scrape the sear plates with a putty knife or scraper, and use a wire brush to remove the ash. Remove the sear plates and brush debris from the burners with the brass wire brush. Sweep all debris from inside the gas grill into the drip pan. N415-0580-AU REV - MAy 11.22 www.napoleon.com... -
Page 12: Maintenance Instructions
Cleaning The Outer Grill Surface: Do not use abrasive cleaners or steel wool on any painted, porcelain or stainless steel parts of your Napoleon Grill. Doing so will scratch the finish. Exterior grill surfaces should be cleaned with warm soapy water while the metal is still warm to the touch. To clean stainless surfaces, use a stainless steel or a non-abrasive cleaner. - Page 13 CAUTION! Check for abrasions, melting, cuts, and cracks in the hose. If any of these conditions exist, do not use the gas grill. Have the part replaced by your Napoleon Grill dealer or qualified gas installer. Aluminum Castings: Clean castings periodically with warm soapy water. Aluminum will not rust, but high temperatures and weathering can cause oxidation to occur on aluminum surfaces.
-
Page 14: Troubleshooting
Humming regulators will not be replaced. Burners will not cross light Dirty or corroded cross light brackets. Clean or replace as required. each other. www.napoleon.com N415-0580-AU REV - MAy 11.22... - Page 15 See lighting instructions. If the grill cannot be adjusted to perform correctly, have it inspected by a certified gas installer or the Napoleon dealer where the product was purchased N415-0580-AU REV - MAy 11.22 www.napoleon.com...
-
Page 16: Ordering Replacement Parts
3. A concise description of the problem (‘broken’ is not sufficient). 4. Proof of purchase (photocopy of the invoice). In some cases, Napoleon could request to have the parts returned to the factory for inspection before providing replacement parts. Before contacting Napoleon dealer, please note that the following items are not covered by the warranty: •... -
Page 17: Getting Started
WARNING! Clip hose to cart heat shield using bushing supplied. Failure to follow these instruc- tions could result in property damage, personal injury or death. N415-0580-AU REV - MAy 11.22 N415-0580-AU REV - MAy 11.22 www.napoleon.com www.napoleon.com... - Page 18 WARNING – FIRE HAZARD WARNING! Do not route hose underneath drip pan. WARNING! Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a fire. N415-0580-AU REV - MAy 11.22 www.napoleon.com...
- Page 19 Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommended by the Napoleon Customer Solutions department and have the grill inspected by a certified gas installer. STOP...
- Page 20 N325-0094-SER door handle N105-0011 door bushings N010-0985-BK assembly lid - black S91003 temperature gauge kit N385-0307-SER NAPOLEON logo N510-0013 black silicone lid bumper S87014 lid pivot hardware kit N010-1283-SER control panel assembly LPG N010-1601 control panel assembly NG N380-0043...
- Page 21 (5 pieces) S83024 cast cooking grid kit S83023 stainless cooking grid kit x - standard ac - accessory p - propane units only sp - special edition n - natural gas units only N415-0580-AU REV - MAy 11.22 www.napoleon.com...
- Page 22 N415-0580-AU REV - MAy 11.22 www.napoleon.com...
- Page 23 N415-0580-AU REV - MAy 11.22 www.napoleon.com...
- Page 24 Napoleon products are protected by one or more U.S. and Canadian and/or foreign patents or patents pending. N415-0580-AU...
