opticlimate.com
II
BY OPTICLIMATE
INSTALLATION
PLEASE READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THE UNIT:
High Temperature Safeguard on page 7
& USER GUIDE
Delete alarm history on page 12
Dehumidify without cooling pro4 on page 12
Engineered & Designed in Holland
THE FUTURE OF COOLING
JUST GOT COOLER.
www.opticlimate.com
Advertisement
Table of Contents
Related Manuals for OPTICLIMATE REVOMAX II
Summary of Contents for OPTICLIMATE REVOMAX II

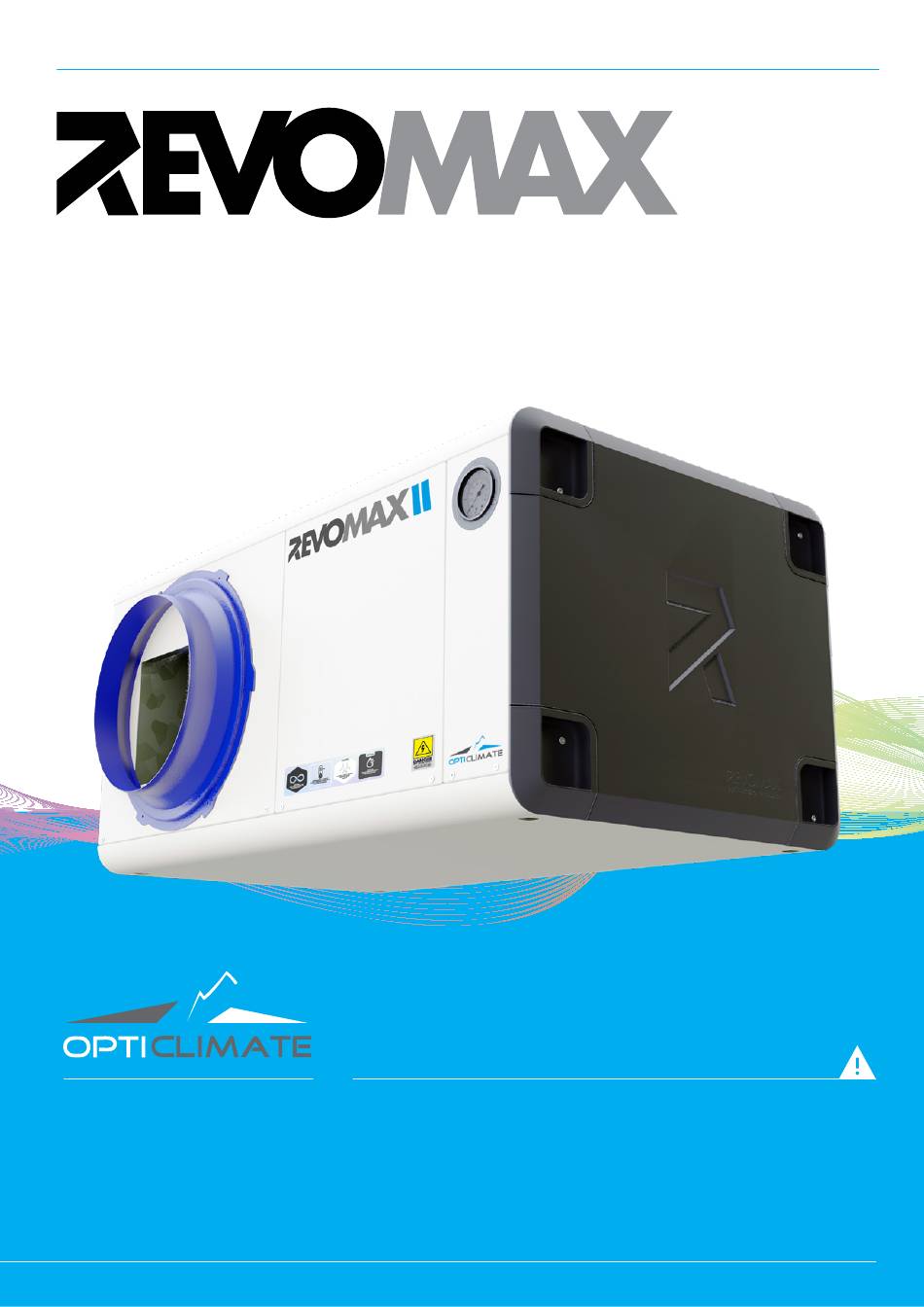

- Page 1 BY OPTICLIMATE INSTALLATION PLEASE READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THE UNIT: High Temperature Safeguard on page 7 & USER GUIDE Delete alarm history on page 12 Dehumidify without cooling pro4 on page 12 Engineered & Designed in Holland THE FUTURE OF COOLING JUST GOT COOLER.
-
Page 2: Installation Spacing
INSTALLATION Installation Installation spacing To guarantee proper air suction, leave at least 15cm of space between the wall and the backside of the unit, where the carbon & dust filters and air inlet are located. At least 15cm of space should also be left between the topside of the unit and the ceiling. Larger spaces are preferred. -
Page 3: Routing The Cables
INSTALLATION Stand or frame Make or buy a stand or frame to hold the weight of the Opticlimate. (see nameplate ) You can use the rubber damper or a vibration damper (not incuded) Pinch a hole through the insulation at the position of the 4 holes in the bottom of the unit. Use an M8 bolt and washer to mount the rubber or damper. -
Page 4: Electrical Connection
The USB side of the cable can be plugged in one of the USB ports on the smart remote controller. Power supply specifications 4 different OptiClimate models are available. For your safety and the safety of the OptiClimate, the following specifcations should be observed when connecting the power supply: use the circuit breakers (MCB) and cable thickness specifed. -
Page 5: Water Connections
The unit can be used by connecting the water in and out connections to a cold water supply and a drain or can be used using the Opticlimate water cooler to cool the water in a closed loop. (connections and discription of a water cooler setup need to be obtained in the water cooler manual. -
Page 6: Condensation Water
It's highly recommended to use a “P-trap” on the condensation outlet to prevent air entering the unit and to prevent condensate run-off problems. Not using a p trap also results in loss of capacity and bypassing non processed air. Cap for cleaning Opticlimate drain pan Drain Condensation drain connection Correct drain installation If the unit is installed at the same level or lower than the drain or sewer, a condensation lift pump can collect the water. - Page 7 SMART REMOTE CONTROLLER Connecting the Smart Remote Controller Power Connect the power supply and USB connector from the remote cable to the Smart Remote controller. USB to Power supply connect remote from adapter HDMI to connect Ethernet monitor (view only) Power Connect the power supply and USB connector from the remote cable to the Smart Remote controller.
-
Page 8: Powering Up The Unit
After powering up the Opticlimate, the unit will first initialize, this can take a few minutes. All valves and sensor are tested prior to startup. The remote controller cannot be operated during initializing of the Opticlimate. After powering up the Smart remote controller, the remote will first initialize, this can take a few minutes. You will see several screens pop-up and close again, this is normal. - Page 9 OPERATING BY USING THE SMART REMOTE CONTROLLER After both Smart controller and Opticlimate are initialised, the Smart Remote controller will display the Home screen *1 Alarm The ALARM icon will display an alarm (power failure) this is normal after startup and will show each time you power up the unit or in the case of a power failure.during...
- Page 10 OPERATING BY USING THE SMART REMOTE CONTROLLER Setting the basic parameters Go to home 1 or home 2 by pressing the home icon. Touch the Temperature area to enlarge the window for temperature day/night settings. Setting day temperature setpoint. Touch the sun icon to set daymode temperature and use + and –...
- Page 11 OPERATING BY USING THE SMART REMOTE CONTROLLER Setting day and night dehumidify setpoint Go to home 1 or home 2 by pressing the home icon. Setting day and night temperature setpoint. Touch the dehumidify area to enlarge the window for dehumidify day/night settings.
-
Page 12: On/Off Switch
OPERATING BY USING THE SMART REMOTE CONTROLLER On/off switch Setting day and night temperature setpoint. In the right upper corner you find the on/off button. Touching the button will switch the unit on and the icon turns green. Touching the button again will turn the unit off and the icon will turn red. Sequence of operation when the unit is turned on. - Page 13 OPERATING BY USING THE SMART REMOTE CONTROLLER / ANYDESK By touching the home button you can go to the advanced screen and you can see more parameters displayed and also a simple datalog window. The settings for temperature and humidity is the same as in the basic screen. Home - Advanced Screen By touching the home button you can go to the advanced screen and you can see more parameters displayed and...
- Page 14 REMOTE CONTROL VIA ANYDESK Tap "Set password" Click "Unlock Security Settings ..." Tap the password field to open the on-screen keyboard. Unfortunately this obscures the password field, but that does not matter. Enter the password, which is either Maxi Controller for the smart remote controller with the golden startup logo or Revomax for the smart remote controller with the silver startup logo (the first letter must be upper- case).
- Page 15 REMOTE CONTROL VIA ANYDESK Enter the password you want to use to remotely access this controller in both fields and close the keyboard. Then tap on the "Permission Profile" box and change it to "Unattended Access" (This is important!) Close both the settings panels by tapping the cross in the top right, then tap "Show ID"...
-
Page 16: Additional Accessories (Sold Separately)
REMOTE CONTROL VIA ANYDESK When connection succeeds, the controller shows the incoming connection. There's no need to press Accept on the controller; entering the password on the AnyDesk client will do the same. Your client will remember the 9-digit ID from now on. Additional accessories (sold separately) Electric solenoid valve The plug of the solenoid valve should be connected using the black cable supplied with the unit, as shown in the illustration below. -
Page 17: Additional Accessories
ADDITIONAL ACCESSORIES Water leakage sensor The connection set contains a loose, 5m long white wire: the water leakage sensor. This sensor is connected to the terminal on the printed circuit-board. The sensor cable should be led to the outside through the opening in the panel and should be placed on the ground at the lowest point. - Page 18 BY OPTICLIMATE ® Opticlimate is a registered trademark of airSupplies INSTALLATION & USER GUIDE Engineered & Designed in Holland Manual version 0222 2023 THE FUTURE OF COOLING JUST GOT COOLER. www.opticlimate.com...
