Ortech ODDMF-5-166 Instruction Manual

ODDMF Inline Fans
MODEL ODDMF-5-166
• For general ventilation use only
• Install guard screens if personnel have
access to inlet or exhaust of fan
• DO NOT use to exhaust hazardous
explosive materials and vapours
• Ensure that the fan is switched off
from the supply mains before
removing guard
• Precautions must be taken to avoid the
back-flow of gases, in this case, a check
valve is necessary
• To disconnect, first turn the unit off,
grip the plug and pull from the wall
outlet. NEVER pull the plug by the cord
CAUTICAUTION
CAUTION
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
Electrical products can cause death or injury, or damage to property.
If in any doubt about the installation or use of this product, consult a competent technician.
CLEANING & MAINTENANCE
• Wipe the unit and blades with a damp cloth
• DO NOT spray water or liquid on or into the fan
• DO NOT clean the units with cloths that have metal parts
• Clean the unit regularly to ensure the blades can move freely
FEATURES

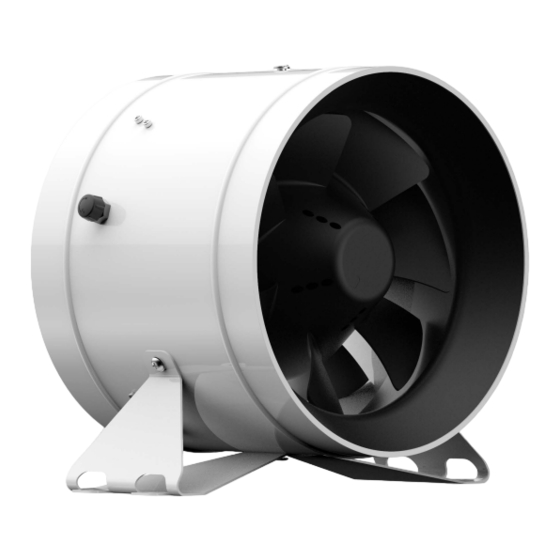

This EC Mix Flow Inline Fan is powered by cutting-edge EC motor featuring high static air pressure, aerodynamically-optimized airflow, quiet
operation, and extremely high efficiency. They are ideal for residential, commercial and industrial ventilation, and even hydroponic ventilation
(exhaust and intake). Multiple Speed Control Signals available (Potentionmeter ; PWM; 0-10V , Tachometer)*
info@ortechindustries.com
www.ortechindustries.com
WARNING
WARNING — THE INSTALLATION MUST BE CARRIED OUT BY A QUALIFIED TECHNICIAN.
1. DO NOT open. No user serviceable parts inside
2. ODDMF inline fans are intended for indoor use only
3. Install with duct on inlet and duct and/or fan silencer on exhaust of fan
4. Speed control MUST be connected for the ODDMF inline fans to function
5. Ensure the product is unplugged from the electrical outlet before relocating, servicing or cleaning
A P P L I C A T
• DO NOT pull the cord too hard as it
could damage and fray. If the supply
cord is damaged, it must be replaced
by the manufacturer, its service agent
or similarly qualified persons in order
to avoid an electrical hazard
• DO NOT allow the power cord or any
other parts of the fan to touch hot
surfaces, open flames, cooking or other
heating appliances and DO NOT place
near hot gas or electric burners
• Turn the unit off when moving to
another location and before cleaning
• DO NOT operate if housing is damaged
CAUTICAUTION
DO NOT use this fan in the following circumstances:
• Environment with significant dust
• Environmental humidity is above 90%
• Operating Temperature is less than -10ºC, or above +60ºC
• Places wherre children or pets have easy access to the fan blades
• Flammable or hazardous atmosphere, near explosive gases, or chemical dust
TICAUTION
• DO NOT use cleaning detergent or chemicals to clean the fan
• NEVER immerse in water or let water enter the fan controller outlet
• DO NOT clean while the unit switch is on. Turn off and unplug the unit
13376 Comber Way
Surrey BC V3W 5V9
I O N N O T I
375 Admiral Blvd
Mississauga ,
ON L5T 2N1
Instruction Manual
C E
• Ensure all the packaging has been
removed and that the voltage used
corresponds to the voltage indicated
on the rating plate
• DO NOT cover any openings on the
fan or insert objects or parts of the
body into any of its openings when
fan is on or off
• To protect against electric shock, do
not immerse unit, plug or rcord in
water or other liquids
• Keep cord away from areas where it
could be walked on or tripped over
CAUTICAUTION
1-888-543-6473
1-888-541-6474
