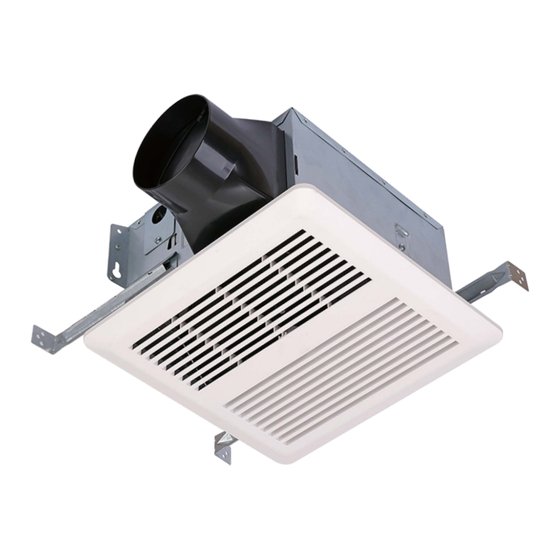

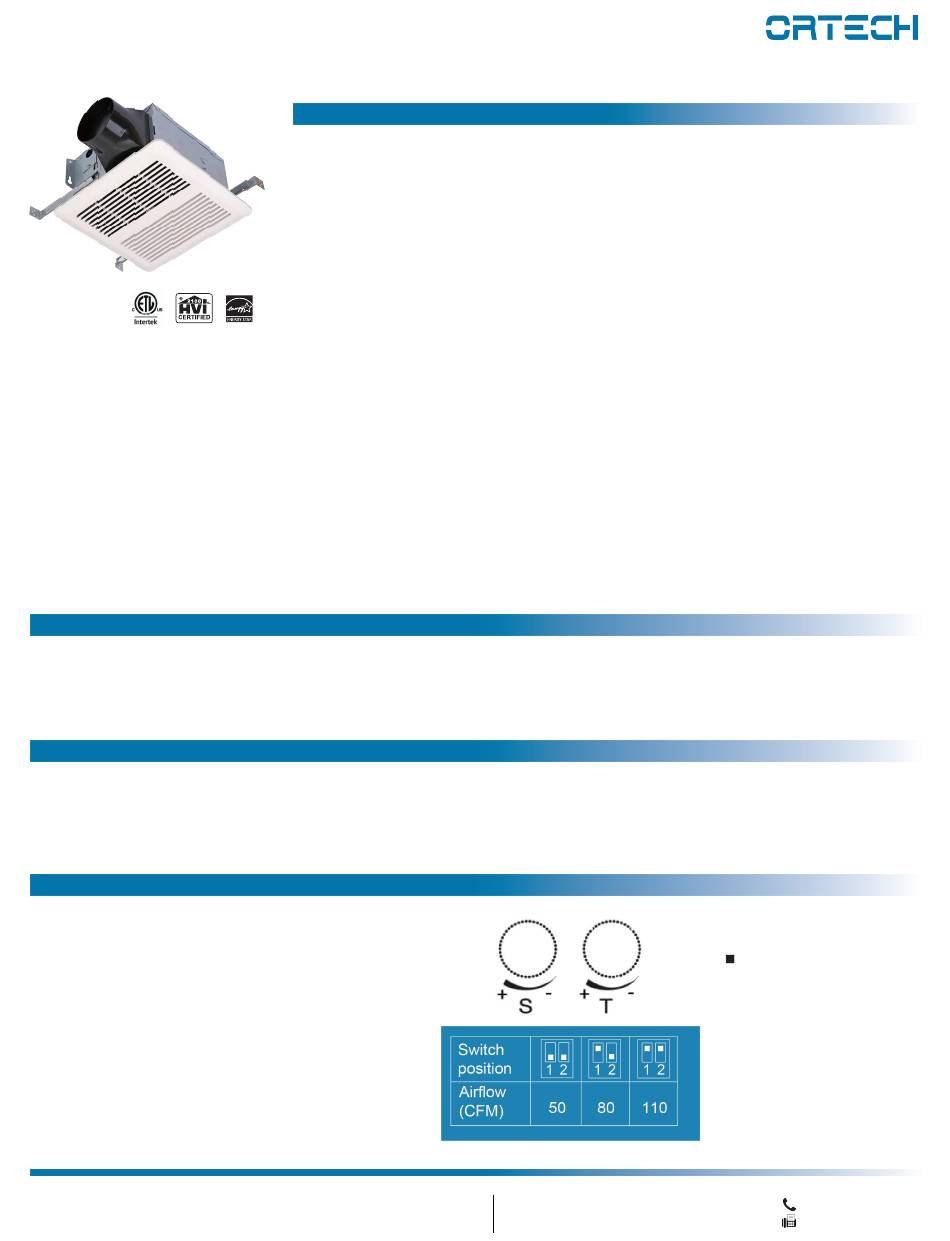

Ortech ODD-110S Instruction Manual

Universal Series
MODEL ODD-110S
1. Use this unit only in the manner intended by the manufacturer. Contact the manufacturer in case of questions
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switching on
accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities
5. When cutting or drilling into wall or ceiling, DO NOT damage electrical wiring and other hidden utilities
6. Ducted fans MUST always be vented to the outdoors
7. Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) —protected branch circuit (ceiling installation only)
8. To reduce risk of fire and to properly exhaust air, be sure to duct air outside — DO NOT vent exhaust air into spaces within walls or ceilings or
into attics, crawl spaces, or garages. This fan is NOT for use in kitchens
9. DO NOT use this fan with any solid-state speed control device
10. The fan MUST NOT be installed in a ceiling thermally insulated to a value greater than R40
11. This unit must be grounded
CAUTION
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
Electrical products can cause death or injury, or damage to property.
If in any doubt about the installation or use of this product, consult a competent electrician.
CLEANING & MAINTENANCE
For quiet and efficient operation, long life, and attractive appearance — lower or remove grille and vacuum interior of unit
with the dusting brush attachment. The motor is permanently lubricated and never needs oiling. If the motor bearings are
making excessive or unusual noises, replace the motor with the exact service motor. The impeller should also be replaced.
OPERATION
User Setting
The control box, located inside the fan housing, has three
separate adjustments:
1) The low airflow knob adjusts the lower airflow from 30 CFM
up to the airflow rate of the high fan speed determined by
the toggle switch setting
2) The time delay knob is adjustable from 3 to 30 minutes and
will switch the fan to the low speed setting after motion is
no longer detected in the room for the set period of time
3) The toggle switch will adjust the upper fan speed setting to
50/80/110 CFM
info@ortechindustries.com
www.ortechindustries.ca
WARNING
WARNING — THE INSTALLATION MUST BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.
1. For general ventilating use only. DO NOT use to exhaust hazardous or explosive materials and vapours
2. This product is designed for installation in ceilings up to a 12/12 pitch (45º).
Duct connector MUST point up. DO NOT mount this product in a wall
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit
4. Read specification label on product for further information and requirements
Application Notice
. Install the fan at least 2.5m (8.2ft) above the floor
13376 Comber Way
Surrey BC V3W 5V9
205 Summerlea Rd,
Brampton, ON L6T 4E5
Instruction Manual
To change the pre-selected airflow, adjust
the control switches as per the table on the
left. is the position of the switch
1-888-543-6473
1-888-541-6474
