- Page 1 Sets MirrorEye MP System manual No. SM0974203 A 02 Article Number Sets: 0415000 0415010 0415020 5/2019 English...
- Page 2 All data subject to change without notice. All dimensions are for commercial purpose only. The camera/Monitor systems from Stoneridge⎮Orlaco comply with the latest CE, ADR, EMC and mirror-directive regulations, where applicable. All products Also consult the following documents...
-
Page 3: Table Of Contents
System manual Contents Page 1. Introduction 2. System description 2.1. System view 2.2. Set MirrorEye Layout 2.3. Camera and monitor mounting positions 2.4. MirrorEye installation 3. Cables and electrical connections 3.1. Cabin Wire Harness 3.2. Cable 1m UNI Digicoax 4. Dimensions 5. -
Page 4: System Description

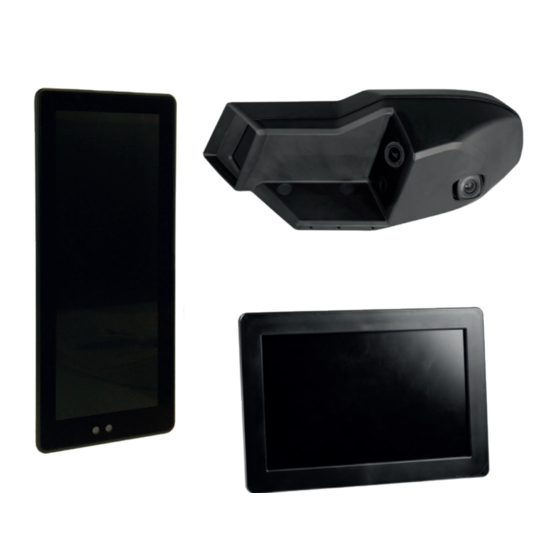

System manual 2. System description Set MirrorEye, Art. No. 0415000 System overview Camera MirrorEye Left side Art. No. 0106040 Camera MirrorEye Right side Art. No. 0106050 Monitor 12,3” Monitor 12,3” Passenger side Driver side Art. No. 0212000 Art. No. 0212500 Cabin Wire Harness Art. - Page 5 System manual Set MirrorEye MP RHD (Class V Left), Art. No. 0415010 System overview Camera MirrorEye Left + V Art. No. 0106060 Class V camera Camera MirrorEye Right Art. No. 0106050 Monitor 10” Dashboard Art. No. 0224000 Monitor 12,3” Monitor 12,3” Driver side Passenger side Art.
-
Page 6: Set Mirroreye Layout
System manual Ocular Reference Point A Pillar A Pillar A Pillar Seat rails 2.2. Set MirrorEye Layout See Figure 3 1. Camera MirrorEye Left Side; Article No. 0106040 2. MirrorEye 12.3” Monitor unit, Driver; Article No. 0212000 3. Camera MirrorEye Right Side; Article No. 0106050 4. -
Page 7: Mirroreye Installation
System manual 2.4. MirrorEye installation Advise: We strongly advise to contact your Stoneridge⎮Orlaco dealer for detailed instructions regarding the installation. The MirrorEye system is developed as a mirror replacement as mentioned in UNECE R46 regulation. In order to use the MirrorEye system as a mirror replacement the installation needs to be approved by the authorized body. -
Page 8: Cabin Wire Harness
System manual 3. Cabin Wire Harness electrical connections The Set MirrorEye MP must be connected by trained electricians. Under no circumstances should you make connections that are not described in this manual. Cabin Wire Harness ME 2.4m; Art. No. 1002332 3 = Power (KL30) 3 = Power (KL30) 1 = CAN 1H... -
Page 9: Dimensions
System manual 4. Dimensions 45,2 149,5 30,2 70,5 Class II 190 x 110mm Class IV 95 x 110mm Monitor 12,3” MirrorEye Camera MirrorEye MP Left side/Right side 5p Molded male Connector 37,5 M5 (8x) 13,5 Class V Units in mm Monitor 10”... -
Page 10: Drilling Template
System manual 5. Drilling template Bracket Drilling template MirrorEye MP Left, SCALE 1:1 ∅9 Mounting holes for bolts M8 Units in mm Figure 6 SM0974203 A 02... - Page 11 System manual 6. Technical specifications 6.1. Set MirrorEye MP; Art. No. 0415000 Camera Units Camera MirrorEye MP Left Camera Mirror Eye MP Right Camera Mirror Eye MP Left+V Camera Mirr Article numbers 0106040 0106050 0106060 0106070 Camera module Two image sensors for Class II/IV view, 1.4MP. Video sensor Uncompressed over Coax cable (3Gbps).
-
Page 12: Specifications
System manual 6.2. Set MirrorEye MP RHD (Class V Left); Art. No. 0415010 Camera Units Camera MirrorEye MP Left + V Camera Mirror Eye MP Right Article numbers 0106060 0106050 Camera module Two image sensors for Class II/IV view, 1.4MP. Video sensor Uncompressed over Coax cable (3Gbps). - Page 13 System manual 6.3. Set MirrorEye MP LHD (Class V Right); Art. No. 0415020 Camera Units Camera MirrorEye MP Left Camera Mirror Eye MP Right + V Article numbers 0106040 0106070 Camera module Two image sensors for Class II/IV view, 1.4MP. Video sensor Uncompressed over Coax cable (3Gbps).
-
Page 14: Possible Faillures
System manual 7. Possible failures: Symptom Action driver 1. Black screen 1. Driver should stop the vehicle in a safe manner, as soon as possible. 2. Blue screen 2. Driver should stop the vehicle in a safe manner, as soon as possible. 3. -
Page 15: Diagnostic Information Needed
10. General terms and conditions Stoneridge⎮Orlaco Products BV is not liable for damage resulting from inadequate servicing, incorrect usage or alterations made to the equipment without informing the manufacturer in writing. - Page 16 System manual For information regarding repairs that is not covered in this manual, please contact the Stoneridge⎮Orlaco Products BV service department. This manual has been prepared with all due care and attention. However, Stoneridge⎮Orlaco cannot be held responsible for any errors in this manual or any consequences thereof.
- Page 17 System manual SM0974203 A 02...
- Page 18 System manual SM0974203 A 02...
- Page 19 System manual SM0974203 A 02...
- Page 20 Our systems give the end user a view on each blind spot and will create comfort and improved working conditions. Our active approach will support market demands and innovations and will lead to enthusiastic ambassadors in the market; our customers. For more information: www.Stoneridge.com and www.orlaco.com www.stoneridge.com www.orlaco.com...
