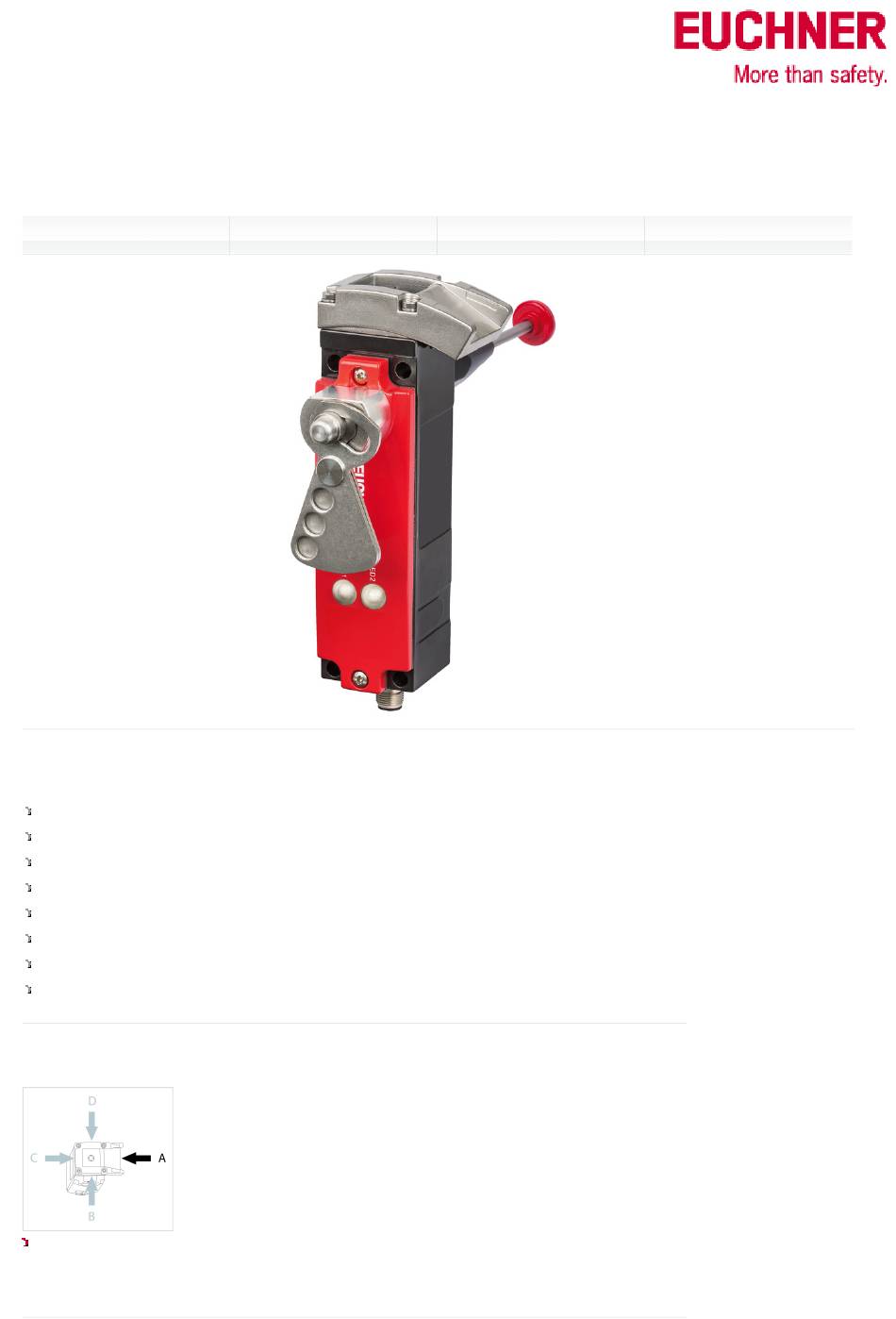

ITEM 111918 CET1-AX-LRA-00-50F-SA-C2333-111918
Description
Features
Read head with guard locking
Locking force up to 6500 N
Up to category 4/PL e according to EN ISO 13849-1
With plug connector M12
With escape release, 75 mm long
With lockout bar
2 LEDs (1 freely configurable)
Approach direction A (default setting on delivery)
Approach direction
Figure
Horizontal
Can be adjusted in 90° steps
Technical data
Accessories
Downloads
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for EUCHNER CET1-AX-LRA-00-50F-SA-C2333-111918
Summary of Contents for EUCHNER CET1-AX-LRA-00-50F-SA-C2333-111918
- Page 1 ITEM 111918 CET1-AX-LRA-00-50F-SA-C2333-111918 Description Technical data Accessories Downloads Features Read head with guard locking Locking force up to 6500 N Up to category 4/PL e according to EN ISO 13849-1 With plug connector M12 With escape release, 75 mm long...
- Page 2 Figure Notes Special connection cables from EUCHNER are required for the connection. Please take into account in the order! The read head CET may be operated only in conjunction with the actuator CET-A-BWK-50X.
- Page 3 Mechanical values and environment Housing material Slide Stainless steel Safety switch Die-cast aluminum Weight Net 1 kg Ambient temperature At U = 24V DC -20 ... 55 °C Degree of protection IP67 Mechanical life 1 x 10 Installation position Degree of freedom X ±5 mm Y ±5 mm Z ±4 mm...
- Page 4 With screwed tight plug connector Preferably head downward This value can vary depending on the evaluation unit used. See system documentation of the related evaluation unit. Dimension drawing...
- Page 5 Block diagram Function expansion Cover for read head and actuator CET 098808 CET ABDECKUNG RECHTS Features Cover for read heads / safety switches CET and actuators CET For approach direction A 098807 CET ABDECKUNG LINKS Features Cover for read heads / safety switches CET and actuators CET For approach direction C Double ramp for safety switch/read head CET 114091...
- Page 6 Features Prevents unintentional closing of the door Can be secured with padlocks Not suitable in combination with cover AM-C for actuator CET Extension of the escape release CET 127377 AF-E-80-127377 Features Extension of the CET escape release by 30, 50 or 80 mm Actuator Actuator CET-A-BWK-50X 096327...
- Page 7 Connection cable with plug connector M12, 8-pin, 25m 103115 C-M12F08-07X025PV25,0-MA-103115 Features M12 female plug, 8-pin Straight plug connector PVC cable Cable length 25 m With flying lead 103782 C-M12F08-07X025PU25,0-MA-103782 Features M12 female plug, 8-pin Straight plug connector PUR cable Cable length 25 m With flying lead Connection cable with angled plug connector M12, 8-pin, 10m 100456...
- Page 8 106350 RIEGEL CET-A-C/F-C2282 Features Steel bolt Stainless steel guide strip For left or right hinged doors In combination with CET with escape release Detent knob in open position Can be locked in open position with padlocks Mounting accessories Mounting plate EMP-L-… for CET read head/switches 106695 EMP-L-CET Features...
- Page 9 Instructions Manual de instrucciones Cabeza de lectura CET-AX con bloqueo y monitorización de bloqueo Doc. no. Version Language Download Betriebsanleitung Lesekopf CET-AX mit 2098069 18-07/17 2.0 MB Zuhaltung und Zuhaltungsüberwachung Operating Instructions Read Head CET-AX with Guard Locking and Guard Lock Monitoring Mode d'emploi Tête de lecture CET-AX avec 2098069 18-07/17...
