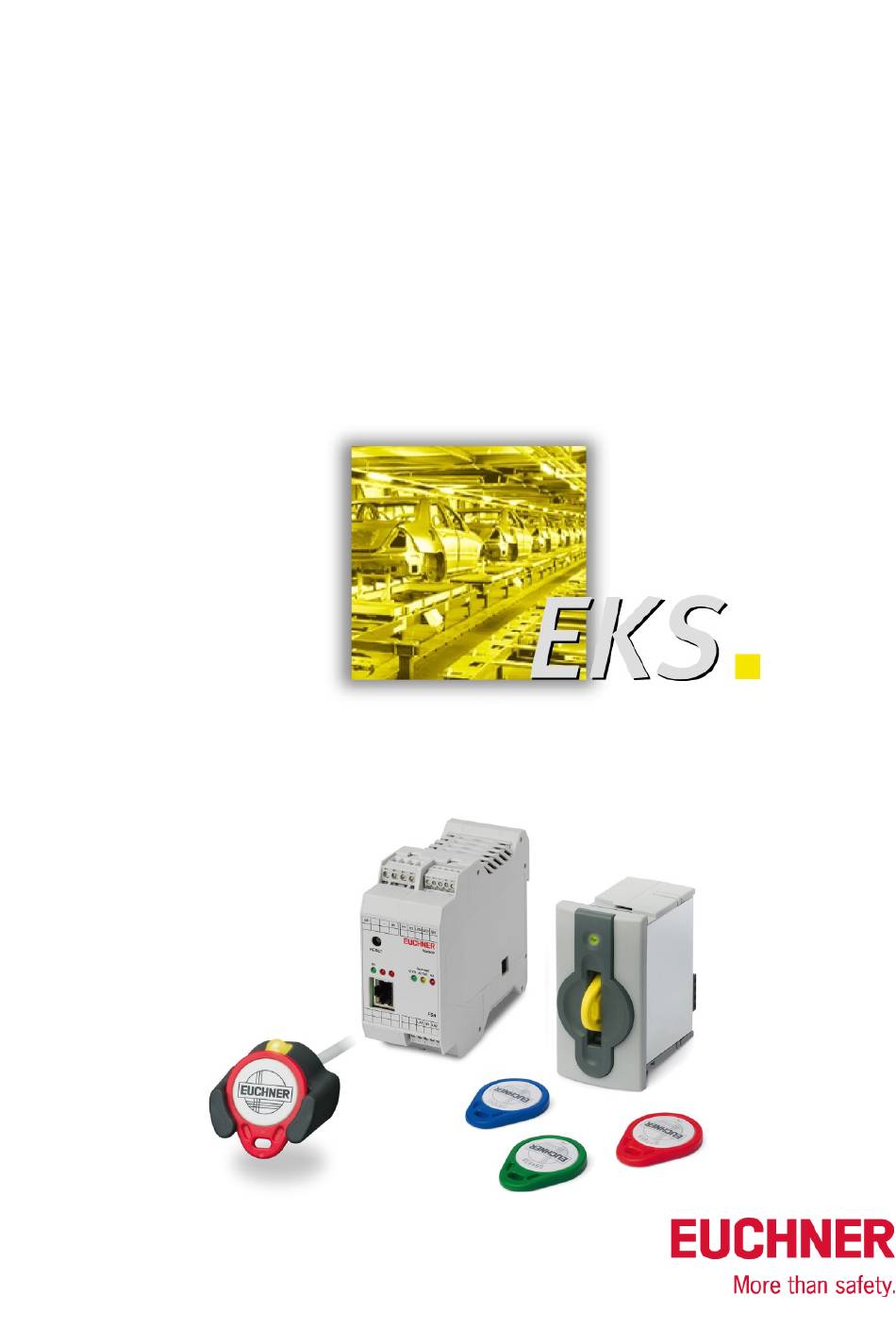

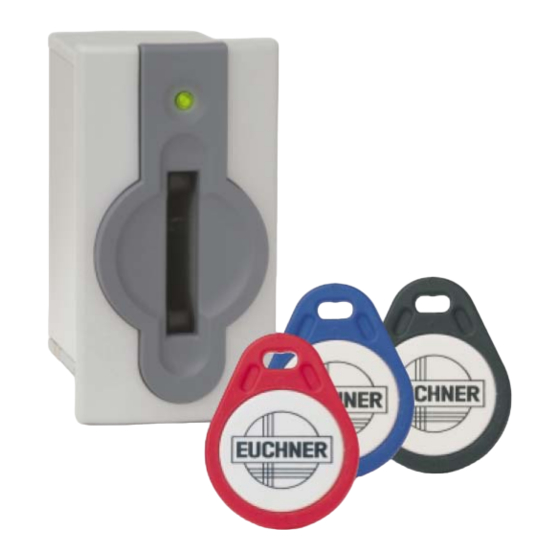

- Page 1 Electronic-Key-System Manual EKS and EKS FSA with Ethernet TCP/IP interface Compact V3.X.X Modular V1.X.X Order no. 2547185 Ethernet...
- Page 2 2 Safety precautions............................8 3 Function ................................ 9 3.1 Functional description ..........................9 3.1.1 Common functions of EKS Standard and version EKS FSA ............. 9 3.1.2 Additional functions of the version EKS FSA ................10 4 Technical data ............................11 4.1 Dimension drawing of Electronic-Key adapter compact ..............11 4.1.1...
- Page 3 Ethernet configuration ......................23 6.2 Connection of power supply ........................ 25 6.3 Connection of functional earth ......................25 6.4 Connection of the semiconductor switching contacts (for EKS FSA only) .......... 25 7 Setup ................................26 7.1 Network settings ..........................26 7.1.1...
-
Page 4: General Notes
Manual EKS Ethernet TCP/IP General notes Use of the manual This manual describes the technical features and the function of the EKS Ethernet TCP/IP read/write stations listed below (also referred to as “devices” for short in the rest of the text). With the compact version, the Electronic-Key adapter and the evaluation and interface electronics for data transmission are accommodated completely in one housing: ... - Page 5 Dual Inline Package DNS Domain Name Service E²PROM Electrically Erasable Programmable Read-Only Memory EKS Electronic-Key-System EKS FSA Electronic-Key-System For Safety Applications FHM Front Hook Modular LED Light Emitting Diode LSB Least Significant Bit ...
-
Page 6: Correct Use
Manual EKS Ethernet TCP/IP 1.3.2 Radio frequency approvals for USA and Canada Product description: Electronic-Key-System Compact FCC ID: 2AJ58-15 IC ID: 22052-15 Product description: Electronic-Key-System Modular FCC ID: 2AJ58-16 IC ID: 22052-16 FCC/IC-Requirements This device complies with part 15 of the FCC Rules and with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. - Page 7 Manual EKS Ethernet TCP/IP The read/write station must be employed and used only in accordance with this manual and other documentation referred to in this manual. The EKS read/write station is not a safety component in the sense of the Machinery Directive. Without additional precautions the EKS read/write station must not be used to provide a safety function, particularly if failure or malfunction of the device could endanger the safety or health of people in the operating area of a machine.
-
Page 8: Safety Precautions
Mounting and electrical connection are allowed to be performed only by authorized personnel who are familiar with the applicable regulations on accident prevention and have read and understood this manual. Furthermore, mounting and electrical connection of the version EKS FSA must be performed only by personnel familiar with handling safety components. Caution! Modifications to the electronics of the read/write station and any other changes, especially mechanical modifications and reworking, are not permissible and will result in the loss of the warranty. -
Page 9: Functional Description
Electronic-Key. Information! For easier organization and management of your Electronic-Keys and the data they contain, EUCHNER also offers the Electronic-Key-Manager EKM software. To enter data in the EKM software, an Electronic-Key adapter with serial interface or USB interface must be in operation on the PC. - Page 10 Figure 3: Block diagram EKS FSA Due to separate evaluation of channel LA and channel LB, the EKS FSA device can be used in conjunction with a safe evaluation device in safety-related applications. Integrated voltage monitoring switches off the switching contacts LA and LB if the power supply is outside the permitted tolerance (see chapters 4.4 and 4.5).
-
Page 11: Technical Data
For installation in a control panel, you must provide a cut-out measuring 33 mm x 68 mm according to DIN IEC 61554. 4.1.1 Version EKS-A-IEX-G01-ST02/03 with Ethernet interface 4.1.2 Version EKS-A-IEXA-G01-ST02/03/04 (EKS FSA) with Ethernet interface 2547185-01-10/22 Subject to technical modifications... - Page 12 Manual EKS Ethernet TCP/IP Dimension drawing of FHM Electronic-Key adapter modular Dimension drawing of Ethernet TCP/IP modular interface adapter Page 12/38 Subject to technical modifications 2547185-01-10/22...
- Page 13 Manual EKS Ethernet TCP/IP Technical data for compact version Attention! All the electrical connections must either be isolated from the mains supply by a safety transformer according to EN IEC 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent isolation measures.
- Page 14 Manual EKS Ethernet TCP/IP Technical data for modular version Attention! All the electrical connections must either be isolated from the mains supply by a safety transformer according to EN IEC 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent isolation measures.
-
Page 15: Connector Assignment
Power supply DC 0 V Plug-in connection terminal, 3-pin, Functional with screw terminal Electrically connected to the housing earth 4.6.2.2 Plug-in screw terminals for outputs LA1/LA2 and LB1/LB2 (EKS FSA only) Channel Function NO contact, channel LA Plug-in connection terminal, 2 x 2-pin,... - Page 16 Manual EKS Ethernet TCP/IP 4.6.3 Connection terminal assignment for modular version Information! The plug-in connection terminals are not included with the interface adapter 4.6.3.1 Connection to Electronic-Key adapter Conductor Designation Function coloring Shield of FHM Electronic-Key adapter LED of FHM Electronic-Key LED1 adapter LED of FHM Electronic-Key...
- Page 17 Manual EKS Ethernet TCP/IP 4.6.3.3 Connection of switching contact LA1/LA2 (EKS FSA only) Designation Function Plug-in connection terminal, 5-pin, with screw terminal or spring NO contact, channel LA terminal 2547185-01-10/22 Subject to technical modifications Page 17/38...
-
Page 18: Dip Switch Settings
Manual EKS Ethernet TCP/IP DIP switch settings The device has three DIP switches (S1, S2, S3). Compact device DIP switch Function S1.1 … S1.4; write and read settings (4-fold) S2.1 … S2.8; setting of a fixed DNS name (required only for special applications) (8-fold) S3.1 …... -
Page 19: Dip Switch S2
Manual EKS Ethernet TCP/IP 4.7.2 DIP switch S2 name S2.1 S2.2 S2.3 S2.4 S2.5 S2.6 S2.7 S2.8 S2.9* S2.10* EKS000 EKS001 EKS002 EKS003 … … … … … … … … … … … EKS254 EKS255 * Only if modular interface adapter fitted. Internal function. Retain default setting. Information! Using the DIP switch S2, it is possible to set an EKS name that is used for addressing the device in the network in conjunction with a DHCP server. - Page 20 Manual EKS Ethernet TCP/IP Indicator LED of compact version The Electronic-Key adapter operating states are indicated using a three-color LED on the front. The illumination of the LED in any color indicates the presence of the operating voltage. Operating state Description Color After the application of the power supply, the LED is constantly illuminated red...
- Page 21 Manual EKS Ethernet TCP/IP 5 Mounting Warning! Mounting must be performed only by authorized personnel. After mounting, again check the Electronic-Key adapter for firm seating and correct sealing on the front panel. Electronic-Key adapter compact Attention! To achieve the degree of protection IP67, it is necessary to install the key adapter in a clean, flat metal plate at least 2 mm thick and to tighten the screws with a tightening torque of 0.25 ...
-
Page 22: Electrical Connection
Manual EKS Ethernet TCP/IP 6 Electrical connection Danger! Electrical connection may be performed only by authorized personnel trained in EMC and with the device and wiring isolated. Warning! requirements, a power supply with the feature “for use in For use and operation as per the class 2 circuits”... -
Page 23: Ethernet Connection
Manual EKS Ethernet TCP/IP Ethernet connection The interface for the read/write station is compatible with the standards ISO/IEC 61754-24 and IEC 61158. The device is operated in full-duplex mode with 10 Mbit/s or 100 Mbit/s. Information! Only a screened 100 BaseTX cable, twisted pair, Cat 5 or higher, is permitted for use as the connecting cable. - Page 24 Manual EKS Ethernet TCP/IP After the application of the power supply, the device now powers up again with the default IP address. A new, fixed, self-defined IP address can now be set again using the web interface (see above). Information! With the modular interface adapter, the RESET button on the front can be used to disconnect the power supply and restart the device.
-
Page 25: Connection Of Power Supply
Warning! Incorrect connection or errors in the safety-related integration of the EKS FSA can lead to fatal injury. For this reason, observe the following safety aspects: It is not possible to generate a safe signal by using only the switching contacts LA1/LA2 and LB1/LB2. -
Page 26: Network Settings
4. Place the Electronic-Key in the Electronic-Key adapter. The LED on the front of the compact Electronic-Key adapter or the ACTIVE LED on the interface adapter changes to yellow. 5. Important: for the version EKS FSA, all safety functions must also be thoroughly tested. Network settings You need the following information to integrate the device into the network: ... - Page 27 Manual EKS Ethernet TCP/IP Adapting network settings 1. Select Network & Internet in your operating system and click Change adapter options. 2. Right-click Ethernet and then click Properties. 2547185-01-10/22 Subject to technical modifications Page 27/38...
- Page 28 Manual EKS Ethernet TCP/IP 3. Open the Properties for Internet Protocol Version 4 (TCP/IPV4). 4. In order to ensure that the EKS read/write station and the configuration computer are in the same network, you must assign your configuration PC an IP address with the same subnet mask as the device. On delivery, the default IP of the device is 192.168.1.1 and the subnet mask is 255.255.255.0.
- Page 29 Manual EKS Ethernet TCP/IP Configuring the read/write station via the web interface The device can be configured with a web browser. If you wish to operate the read/write station with a self-defined, fixed IP address, it is recommended to configure the device with a PC.
- Page 30 Manual EKS Ethernet TCP/IP 2. Click Configuration. The Configuration screen for the EKS web interface is now displayed. 3. Enter the desired IP address and the subnet mask. If the network has a gateway, also enter this information. 4. Click the Send button. ...
-
Page 31: Basic Message Structure
module is used as a protocol driver for the TCP/IP data transfer protocols described in the following. Upon request, Euchner will make available a shared library as an interface to a Linux operating system. Information! The shared library only supports the EKS during reading. - Page 32 Manual EKS Ethernet TCP/IP Commands for writing and reading an Electronic-Key read/write Write and read processes are always initiated by the PC/control system using a “command message.” The command message and reply message are also packed as user data in the TCP/IP frame. The Electronic-Key-System then sends a reply message to the PC/control system.
-
Page 33: Write Process
Manual EKS Ethernet TCP/IP 8.3.1 Write process Information! When this command is used, the Electronic-Key must be in the Electronic-Key adapter, and must be removed from within the actuating range only after the reply message has been received. Command message (message core, PC/control system →... -
Page 34: Read Process
Manual EKS Ethernet TCP/IP 8.3.2 Read process Command message (message core, PC/control system → EKS, see Figure 7): TL (device addr.) (start addr. user data) (number of bytes of user data) Reply message (message core, EKS → PC/control system, see Figure 8 or Figure 9): For this command there are two possible replies: ... -
Page 35: Reading The Serial Number
Manual EKS Ethernet TCP/IP 8.3.3 Reading the serial number The Electronic-Key read/write also has a unique 8-byte serial number that is permanently written to the memory during the Electronic-Key production process. The serial number therefore cannot be changed. This serial number is used for secure differentiation of every single Electronic-Key. -
Page 36: Command Overview
Manual EKS Ethernet TCP/IP Command overview Description Command message Reply message Program Electronic-Key TP (see chapter 8.3.1) RF (see chapter 8.3.1) Read Electronic-Key TL (see chapters 8.3.2 and 8.3.3) RL (see chapter 8.3.2) (also read the serial number) RF (see chapter 8.3.2) Read the Electronic-Key status Ek (see chapter 8.3.4) Ek (see chapter 8.3.4) -
Page 37: Exclusion Of Liability
Repairs are to be made only by the manufacturer. On version EKS FSA devices, the safety-related functions must be checked at regular intervals. 11 Guarantee The “General Terms and Conditions” of EUCHNER GmbH + Co. KG apply. - Page 38 Microsoft Windows ® and ActiveX ® are registered trademarks of Microsoft Corporation EUCHNER GmbH + Co. KG Phone +49 711 / 75 97 - 0 Kohlhammerstraße 16 +49 711 / 75 33 16 70771 Leinfelden-Echterdingen www.euchner.com . support@euchner.de...
