- Page 1 OPERATING AND INSTALLATION MANUAL STORAGE TANKS UKV 300 UKV 500 Družstevní závody Dražice-strojírna s.r.o. Dražice 69, 294 71 Benátky nad Jizerou tel.: +420 / 326 370 911 fax: +420 / 326 370 980 e-mail: export@dzd.cz...
-
Page 2: Table Of Contents
CONTENTS DESCRIPTION ............................. 4 THE DESIGN OF SUITABLE VOLUME AND TANK INSTALLATION ..............4 TECHNICAL PARAMETERS .......................... 5 DIMENSIONS AND CONNECTION ......................6 DISPOSAL OF PACKAGING MATERIAL AND NON-FUNCTIONING PRODUCT..........7 - 2 -... - Page 3 CAREFULLY READ THIS MANUAL BEFORE INSTALLING THE TANK! Dear Customer, Družstevní závody Dražice - strojírna s.r.o., would like to thank you for your decision to use a product of our brand. The product is not intended to be controlled by a) people (including children) with reduced physical, sensual or mental capacities, or b) people with insufficient knowledge and experiences unless supervised by responsible person, or unless properly instructed by such responsible person.
-
Page 4: Description

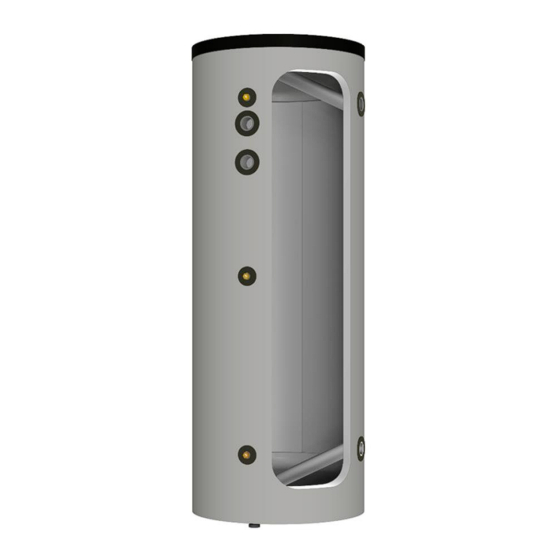

1 DESCRIPTION UKV are storage tanks designed to replenish heating water in heating systems with heat pumps, and also for heat pumps with cooling. Using UKV storage tanks ensures that the heat pump operates completely smoothly, eliminating the number of heat pump compressor starts and extending the service life of the heat pump. -
Page 5: Technical Parameters
3 TECHNICAL PARAMETERS UKV 300 UKV 500 STORAGE TANK CAPACITY OUTSIDE DIAMETER OF THE TANK WITH INSULATION TANK HEIGHT WITHOUT INSULATION 1580 1937 MAX. PRESSURE IN TANK MIN. TEMPERATURE OF WATER IN THE °C TANK MAX. TEMPERATURE OF WATER IN THE °C... -
Page 6: Dimensions And Connection
4 DIMENSIONS AND CONNECTION UKV 300 Figure 1 G 1 1/4" inner G 1 1/2" inner G 1/2" inner G 1" outer 1300 1030 1180 1300 1580 1610 Table 2 - 6 -... -
Page 7: Disposal Of Packaging Material And Non-Functioning Product
UKV 500 Figure 2 1 1/2" inner 1" outer 1/2" inner 1400 1650 1400 1550 1650 1937 1980 Table 3 DISPOSAL OF PACKAGING MATERIAL AND NON-FUNCTIONING PRODUCT A service fee for providing return and recovery of packaging material has been paid for the packaging in which the product was delivered.
