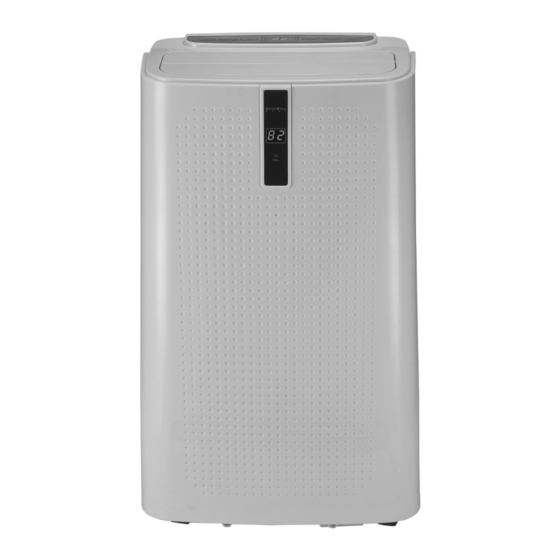

  • Page 1 Portable Air Conditioner 4-in-1 12000 BTU RHPA-18003 User Manual...
  • Page 3: Table Of Contents

    Table of Contents Page Notes ............. 1 Specifications......... 2 III. Features and Components....2-3 IV. Installation and Adjustment....4-5 Control Settings........VI. Drainage Instructions......VII. Maintenance.......... 9 VIII. Safety Features........IX. Troubleshooting........11 X. Appendix..........12...
  • Page 4: Notes

    Portable Air Conditioner RHPA-18003 4-in-1 12000 BTU Thank you for choosing Rosewill’s portable air conditioner. Please read the manual carefully before use and retain for future reference. I. Notes • The air conditioner is suitable for indoor use only. Not suitable for other applications.
  • Page 5: Specifications

    Portable Air Conditioner RHPA-18003 4-in-1 12000 BTU II. Specifications Model RHPA-18003 Voltage 115V - 60Hz Watts 1350W Temperature Range 61°F - 88°F Applications Room 200 sq ft - 300 sq ft Refrigerant R-410A 18.9 x 15.8 x 34.7 in Product Size...
  • Page 6 Portable Air Conditioner RHPA-18003 4-in-1 12000 BTU 2. Components: LED Control Panel Top Cover Swing Leaf LED Display Panel Remote Control Wheel EVA Filter Exhaust Heat Pipe Assembly Handle Continuous Drainage Hole Exhaust Air Vent Power Cord Fixing Board CON Filter Screen...
  • Page 7: Installation And Adjustment

    Portable Air Conditioner RHPA-18003 4-in-1 12000 BTU IV. Installation and Adjustment Before using the portable air conditioner, keep the unit upright for at least two hours. The air conditioner can be easily moved from one room to another. During the moving process, ensure that the unit is upright and placed on a flat surface.
  • Page 8 Portable Air Conditioner RHPA-18003 4-in-1 12000 BTU 3. Install the body • Move air conditioner near the window. Distance between the unit and walls or other objects should be at least 2 feet (Figure 4). Figure • Elongate the heat pipe and snap the flat end of the heat pipe joints into the elliptical hole of the window sealing plate assembly (Figure 5 and Figure 6).
  • Page 9: Control Settings

    Portable Air Conditioner RHPA-18003 4-in-1 12000 BTU V. Control Settings LED Control Panel Operating Instructions: 1 Timer Function 2 Fan Speed Selection 3 Up 4 Display Window 6 Mode Selection 5 Down 7 Power On / Off When the air conditioner is powered on for the first time, the buzzer will play power-on music.
  • Page 10 Portable Air Conditioner RHPA-18003 4-in-1 12000 BTU Front LED Panel 1 LED Display Window 2 Remote Control Receiver 3 Water Full Indicator Remote Control Functions: Power: Press to turn on or turn off the AC unit. Mode: Press to switch between Cool, Heat, Dry and Fan modes.
  • Page 11: Drainage Instructions

    Portable Air Conditioner RHPA-18003 4-in-1 12000 BTU VI. Drainage Instructions 1. Manual Drainage: • When the water tank is full and the air conditioner is off, unplug the unit. • Move the machine carefully, so as not to spill water into the bottom of the body.
  • Page 12: Maintenance

    Portable Air Conditioner RHPA-18003 4-in-1 12000 BTU VII. Maintenance Before maintenance and cleaning, turn off and unplug the air conditioner. • Cleaning the Surface: Clean surface of the machine with a soft, moist cloth. Do not use chemicals including, but not limited to: benzene, alcohol, gasoline.
  • Page 13: Safety Features

    Portable Air Conditioner RHPA-18003 4-in-1 12000 BTU VIII. Safety Features Safety Features: • Frost Protection During Cool, Dry or power-saving Sleep mode, if the temperature of the exhaust pipe is too low, the machine will automatically enter frost protection status; if the temperature of the exhaust pipe rises to a normal temperature, it will automatically revert back to standard operation.
  • Page 14: Troubleshooting

    Displays 'E1' abnormal. related circuitry. The pipe temperature sensor is Check the pipe temperature sensor and Displays 'E2' abnormal. related circuitry. Note: If problems not listed in the table occur or recommended solutions do not work, please contact Rosewill Tech Support.
  • Page 15: Appendix

    2.Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact Rosewill Tech Support. DO NOT USE YOUR PORTABLE AIR CONDITIONER IF THE TEST FAILS.
  • Page 16 Technical Support Information techsupport@rosewill.com 1-800-575-9885 ---------------------------------------------------------------------------------- Thank you for purchasing a quality Rosewill product. Please register your product at www.rosewill.com for complete warranty information and support for your product. For disposal of the air conditioner, consult with RHPA-18003_B your local e-waste recycling program.
