Summary of Contents for Rosewill RHPA-18001
- Page 1 Portable Air Conditioner with Fan & Dehumidifier 3-in-1 8000 BTU RHPA-18001 User Manual...
-
Page 3: Table Of Contents
Table of Contents Page Notes ............. 1 Specifications......... 2 III. Features and Components....2-3 IV. Installation and Adjustment....4-5 Control Panel......... VI. Drainage Instructions......VII. Maintenance.......... 9 VIII. Troubleshooting........11 IX. Appendix..........12... -
Page 4: Notes
Portable Air Conditioner with Fan & Dehumidifier 3-in-1 8000 BTU RHPA-18001 Thank you for choosing Rosewill’s portable air conditioner. Please read the manual carefully before use and retain for future reference. I. Notes The air conditioner is suitable for indoor use only. Not suitable for other applications. -
Page 5: Specifications
Portable Air Conditioner with Fan & Dehumidifier 3-in-1 8000 BTU RHPA-18001 II. Specifications Model: RHPA-18001 Voltage 115V - 60Hz Watts 920W Temperature Range 61°F - 88°F Applications Room 130 sq ft - 200 sq ft Refrigerant R-410A 12 x 13 x 27 in... - Page 6 Portable Air Conditioner with Fan & Dehumidifier 3-in-1 8000 BTU RHPA-18001 2. Components: LED Control Panel Air Outlet / Louver Handle Remote Control Caster EVA Filter Handle Continuous Drainage Hole Exhaust Air Vent Exhaust Heat Pipe Assembly CON Filter Window Sealing...
-
Page 7: Installation And Adjustment
Portable Air Conditioner with Fan & Dehumidifier 3-in-1 8000 BTU RHPA-18001 IV. Installation and Adjustment Before using the portable air conditioner, keep the unit upright for at least two hours. The air conditioner can be easily moved from one room to another. During the moving process, ensure that the unit is upright and placed on a flat surface. - Page 8 Portable Air Conditioner with Fan & Dehumidifier 3-in-1 8000 BTU RHPA-18001 3. Install the Body: • Move air conditioner near the window. Distance between the unit and walls or other objects should be at least 2 feet (Fig. 4) Fig.4 Extend the exhaust pipe and snap the flat end of the exhaust pipe joints into the window •...
-
Page 9: Control Panel
Portable Air Conditioner with Fan & Dehumidifier 3-in-1 8000 BTU RHPA-18001 V. Control Panel LED Control Panel Operating Instructions: 1 Timer 2 Up 3 Down 4 Display Window 5 Fan Speed Selection 6 Mode Selection 7 Power When the air conditioner is powered on for the first time, the buzzer will play power-on music. - Page 10 Portable Air Conditioner with Fan & Dehumidifier 3-in-1 8000 BTU RHPA-18001 Remote Control Functions: Timer Down Fan Speed Selection Mode Selection Sleep Mode Power Safety Features: Frost Protection • During Air Conditioner, Dehumidifier or power-saving Sleep mode, if the temperature of the exhaust pipe is too low, the machine will automatically enter frost protection status;...
-
Page 11: Drainage Instructions
Portable Air Conditioner with Fan & Dehumidifier 3-in-1 8000 BTU RHPA-18001 VI. Drainage Instructions 1. Manual Drainage: • When the water tank is full and the air conditioner is off, unplug the unit. Move the machine carefully, so as not to spill water into the bottom of the body. -
Page 12: Maintenance
Portable Air Conditioner with Fan & Dehumidifier 3-in-1 8000 BTU RHPA-18001 VII. Maintenance Before maintenance and cleaning, turn off and unplug the air conditioner. Cleaning the Surface: Clean surface of the machine with a soft, moist cloth. Do not use chemicals including, but not limited to: benzene, alcohol, gasoline. - Page 13 Portable Air Conditioner with Fan & Dehumidifier 3-in-1 8000 BTU RHPA-18001 Unit Storage: Unscrew the drainage cover, unplug the water plug and empty the water from the water tank • into other water containers, or directly tilt the body to discharge water into a drain.
-
Page 14: Troubleshooting
The room temperature sensor is Check the room temperature sensor Displays 'E2' abnormal. and related circuitry. Note: If problems not listed in the table occur or recommended solutions do not work, please contact Rosewill Tech Support. -
Page 15: Appendix
2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact Rosewill Tech Support. DO NOT USE YOUR PORTABLE AIR CONDITIONER IF THE TEST FAILS. - Page 16 Technical Support Information techsupport@rosewill.com 1-800-575-9885 ---------------------------------------------------------------------------------- Thank you for purchasing a Quality Rosewill Product. Please register your product at http://www.rosewill.com for complete warranty information and support for your product. For disposal of the air conditioner,consult with RHPA-18001_A your local e-waste recycling program.
Need help?
Do you have a question about the RHPA-18001 and is the answer not in the manual?
Questions and answers

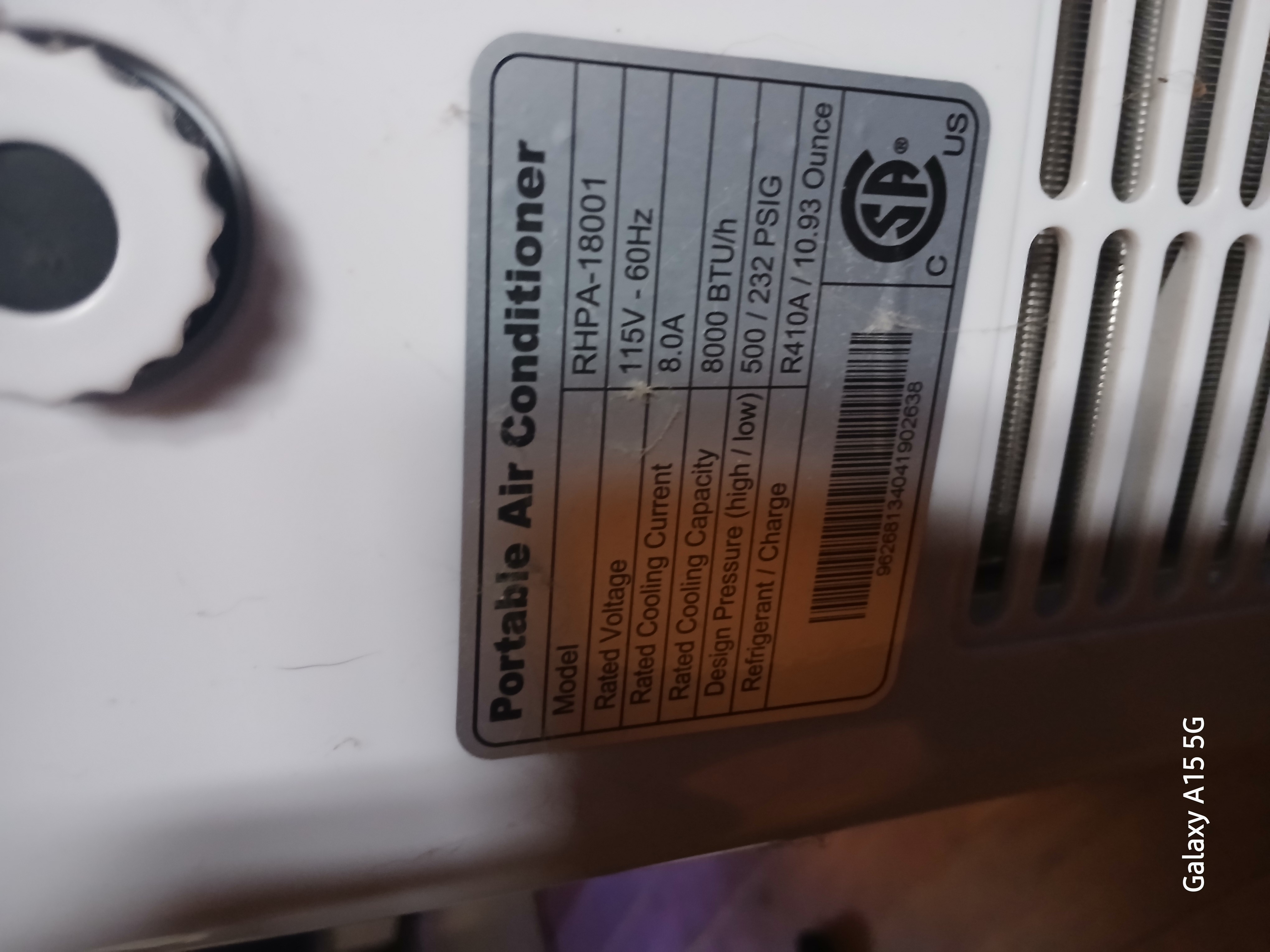

where can we get the drainage hose for our air conditioner Model# RHPA-18001
