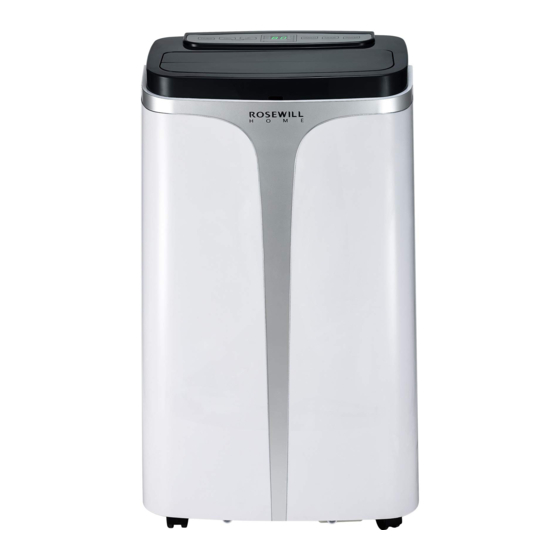

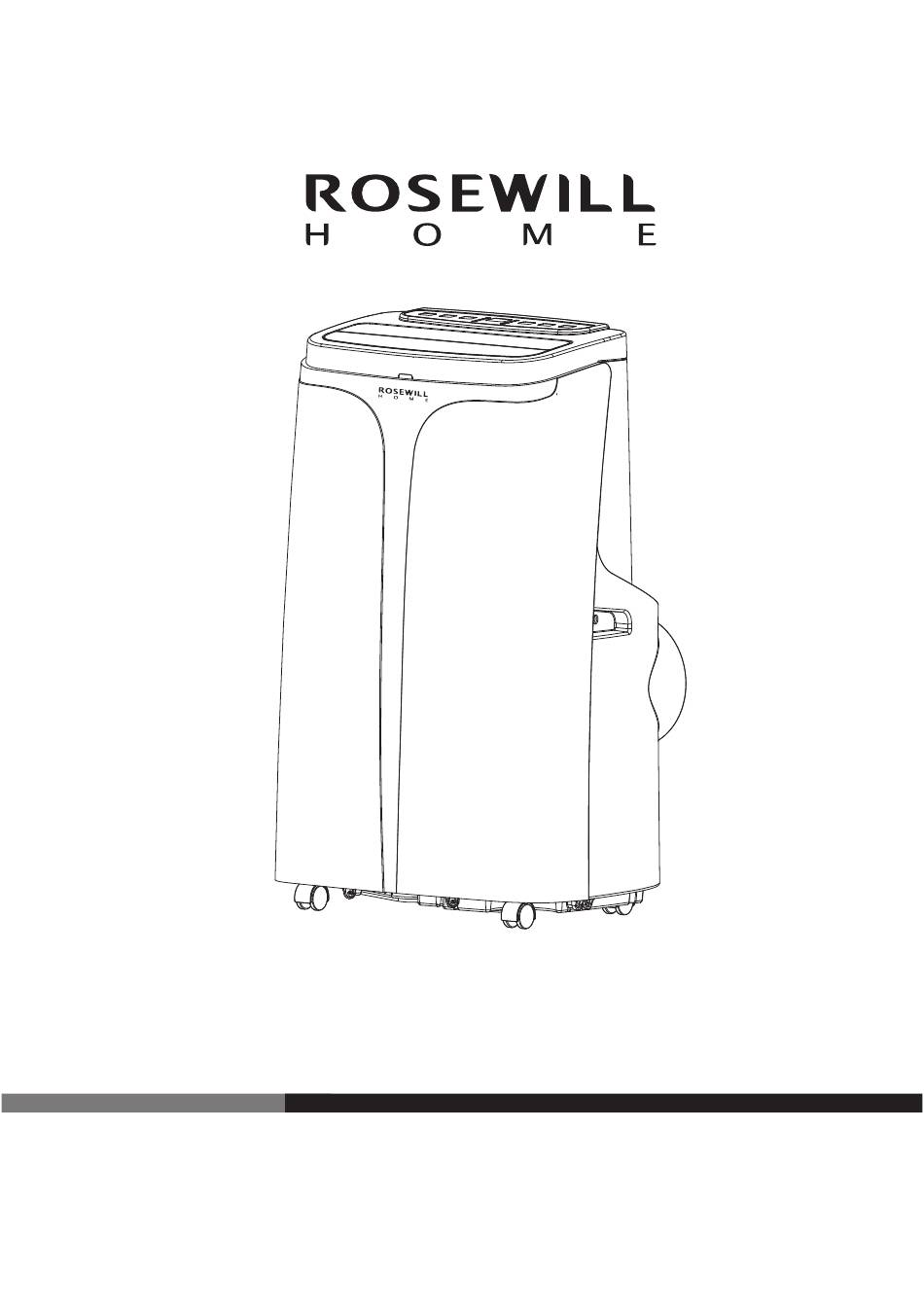

- Page 1 Portable Air Conditioner 3-in-1 12000 BTU RHPA-18002 User Manual...
-
Page 3: Table Of Contents
Table of Contents Page I. Notes ............. 1 II. Specifications ........2 III. Features and Components ....2-3 IV. Installation and Adjustment ....4-5 V. Control Setting ........6-7 VI. Drainage Instructions ......8 VII.Maintenance.......... 9-10 VIII.Troubleshooting ........11 IX. Appendix ..........12... -
Page 4: Notes
Portable Air Conditioner RHPA-18002 3-in-1 12000 BTU Thank you for choosing Rosewill’s portable air conditioner. Please read the manual carefully before use and retain for future reference. I. Notes • The air conditioner is suitable for indoor use only. Not suitable for other applications. -
Page 5: Specifications
Portable Air Conditioner RHPA-18002 3-in-1 12000 BTU II. Specifications Model RHPA-18002 Voltage 115V - 60Hz Watts 1350W Temperature Range 61°F - 88°F Applications Room 200 sq ft - 300 sq ft Refrigerant R-410A 16.5 x 14.2 x 28.4 in Product Size... - Page 6 Portable Air Conditioner RHPA-18002 3-in-1 12000 BTU 2. Components: LED Control Panel Swing Leaf Remote Control Wheel EVA Filter Exhaust Heat Pipe Assembly Handle Continuous Drainage Hole Exhaust Air Vent Power Cord Fixing Board Window Sealing Plate Assembly CON Filter Screen...
-
Page 7: Installation And Adjustment
Portable Air Conditioner RHPA-18002 3-in-1 12000 BTU IV. Installation and Adjustment Before using the portable air conditioner, keep the unit upright for at least two hours. The air conditioner can be easily moved from one room to another. During the moving process, ensure that the unit is upright and placed on a flat surface. - Page 8 Portable Air Conditioner RHPA-18002 3-in-1 12000 BTU 3. Install the body • Move air conditioner near the window. Distance between the unit and walls or other objects should be at least 2 feet (Figure 4). Figur 4 2 ft • Elongate the heat pipe and snap the flat end of the heat pipe joints into the elliptical hole of the window sealing plate assembly (Figure 5 and Figure 6).
-
Page 9: Control Setting
Portable Air Conditioner RHPA-18002 3-in-1 12000 BTU V. Control Setting LED Control Panel Operating Instructions: 1 Timer Function 2 Fan Speed Selection 3 Up 4 Display Window 5 Down 6 Mode Selection 7 Power On/Off When the air conditioner is powered on for the first time, the buzzer will play power-on music. - Page 10 Portable Air Conditioner RHPA-18002 3-in-1 12000 BTU Remote Control Functions: Power: Press to turn on or turn off the AC unit. Mode: Press to switch between Cool, Dry and Fan modes. Right arrow: Press to increase temperature and timer values.
-
Page 11: Drainage Instructions
Portable Air Conditioner RHPA-18002 3-in-1 12000 BTU VI. Drainage Instructions 1. Manual Drainage: • When the water tank is full and the air conditioner is off, unplug the unit. • Move the machine carefully, so as not to spill water into the bottom of the body. -
Page 12: Vii.maintenance
Portable Air Conditioner RHPA-18002 3-in-1 12000 BTU VII. Maintenance Before maintenance and cleaning, turn off and unplug the air conditioner. Cleaning the Surface: • Clean surface of the machine with a soft, moist cloth. Do not use chemicals including, but not limited to: benzene, alcohol, gasoline. - Page 13 Portable Air Conditioner RHPA-18002 3-in-1 12000 BTU Postseason Storage: • Unscrew the drainage cover, unplug the water plug and empty the water from the water tank into other water containers, or directly tilt the body to discharge water into a drain.
-
Page 14: Viii.troubleshooting
The pipe temperature sensor is Check the pipe temperature sensor Displays 'E2' abnormal. and related circuitry. Note: If problems not listed in the table occur or recommended solutions do not work, please contact Rosewill Tech Support. -
Page 15: Appendix
2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact Rosewill Tech Support. DO NOT USE YOUR PORTABLE AIR CONDITIONER IF THE TEST FAILS. - Page 16 Technical Support Information techsupport@rosewill.com 1-800-575-9885 ---------------------------------------------------------------------------------- Thank you for purchasing a quality Rosewill product. Please register your product at www.rosewill.com for complete warranty information and support for your product. For disposal of the air conditioner, consult RHPA-18002_A with your local e-waste recycling program.
