Mast Junction Box Assembly, Quick Disconnect Lights - Magnum MLT5060 Operating & Parts Manual

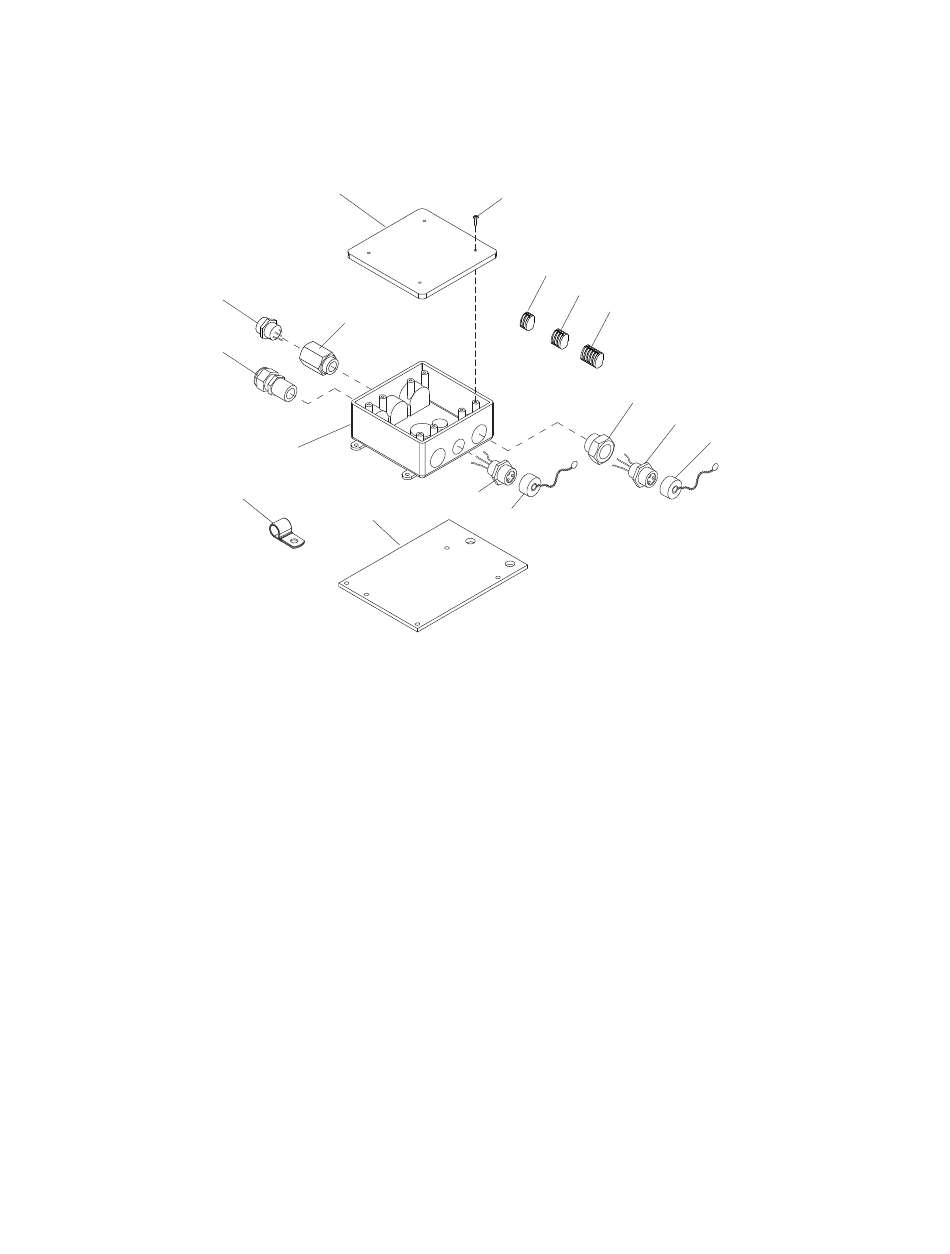

MAST JUNCTION BOX ASSEMBLY - QUICK DISCONNECT LIGHTS
6
11
ITEM NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
-
1
12
10
9
8
PART NO.
12109
66100
66101
66102
60755
15403
15404
12095B
16143
12094
14656
12713
60424
11957
13
2
3
6
7
QTY DESCRIPTION
1 Box cover, 2-gang plastic
4 Connector, 2 pos. Wago
2 Connector, 3 pos. Wago
1 Connector, 5 pos. Wago
2 Fitting, .750MNPT x .500FNPT nylon
4 Connector, quick disconnect (female)
4 Cap, receptacle w/chain
1 Bracket, junction box
1 Clamp, tubing .500
1 Box, junction
1 Strain relief, .750NPT water tight
1 Fitting, adapter-1/2"-14 male to 1/2"-14 female
4 Screw, 6-32X.750 pan phil G2 ZC self threading
- Assembly, mast junction box
4
5
6
7
41
