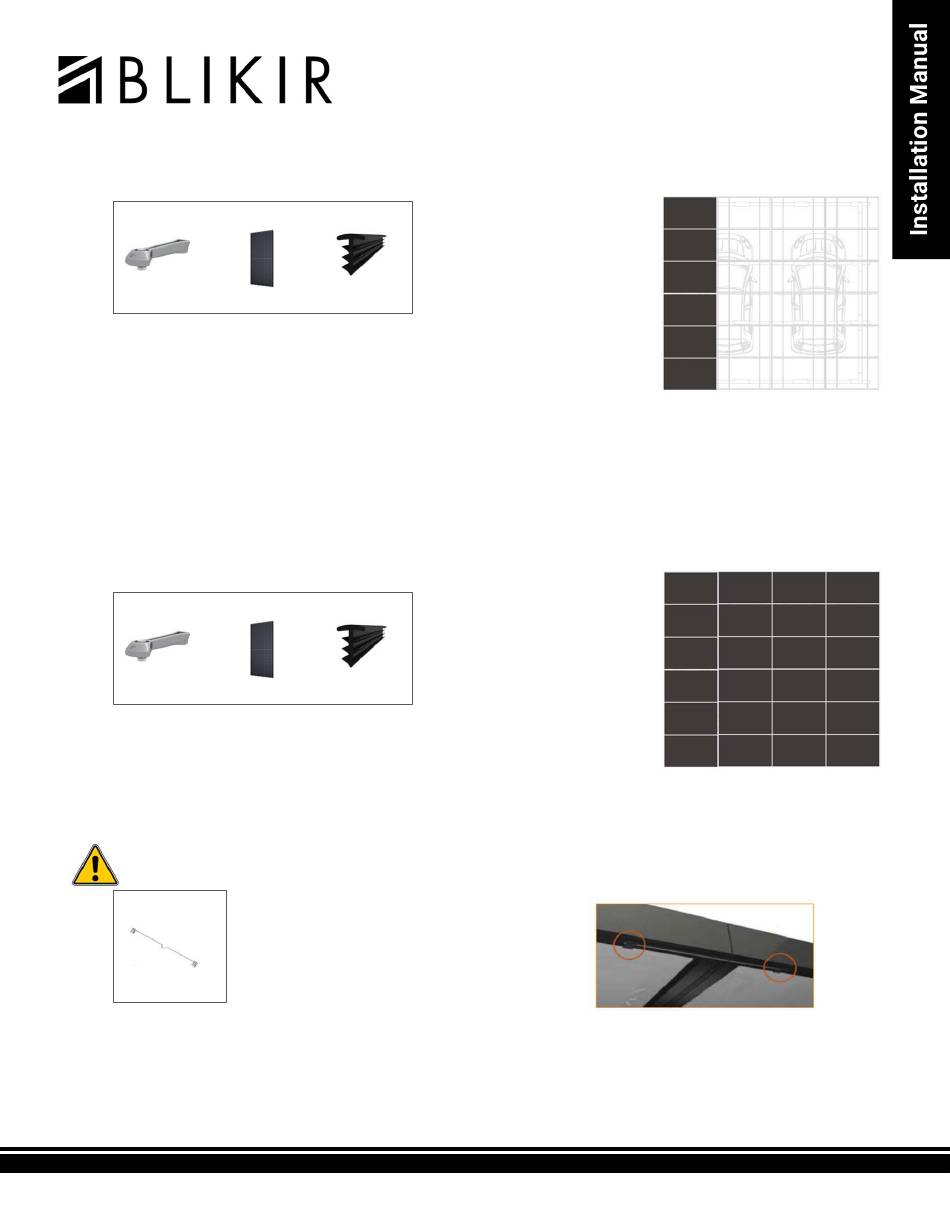

4.2 Connect First Column of Panels

20 X
(21)
NOTE: Please note that the sketch and description in this step are based on
the assumption that you are using 60 cell solar panels (or 120 half cell
panels). If you opt for larger panels, please be aware that the number of
panels that can fit on the RCP-2 carport may be reduced.
Position the second panel (27) in the same column as the first installed panel, following the same method
described in step 4.1. Before securing the second panel, insert a strip of EPDM sealing T-gasket (28)
between the panels, ensuring it is cut to align with the edges of the panels. Press the new panel against the
EPDM gasket and secure it with the CAMO under clamps (21). Trim ¼" from the top of the EPDM sealing T-
gasket (28) to allow the vertical EPDM sealing gasket to rest on the panels when installed in the next step.
Repeat this process to install additional panels up the column, accommodating six 60-cell panels per column.

4.3 Connect Remaining Solar Panels

? X
(21)
Proceed to the next column and repeat the steps. This time, position the
EPDM sealing gasket (28) between the columns, and press the panel of the
second column against the gasket before securing it with the CAMO under
clamps (21). Ensure that the lip of the EPDM sealing gasket (28) rests
flashed on the panel's frame and is not raised to prevent water penetration.

4.4 Connect Bonding Jumpers

Important: Use Ironridge's installation manual when installing your system.
3 X
(22)
The 8" Bonding Jumper serves as an electrical bonding connection used in the Flush Mount System
for row-to-row bonding, utilizing the module frames as the medium for the equipment ground path.
• The Bonding Jumper is simply pushed onto the bottom flange of the module for installation.
• In case of re-installation requirements, it is recommended to use new jumpers.
• It effectively supports bottom flange thicknesses ranging from 1.2mm to 3.1mm.
© BLIKIR.Inc, All rights reserved. BLIKIR and the BLIKIR logo are trademarks or registered trademarks of BLIKIR, Inc.
Date: 08G4/2023/V02/ENG. Subject to change without notice
5 X
(27) (28)
18 X
(27) (28)
RCP-2 G4 |
Solar Carport / Canopy
25
