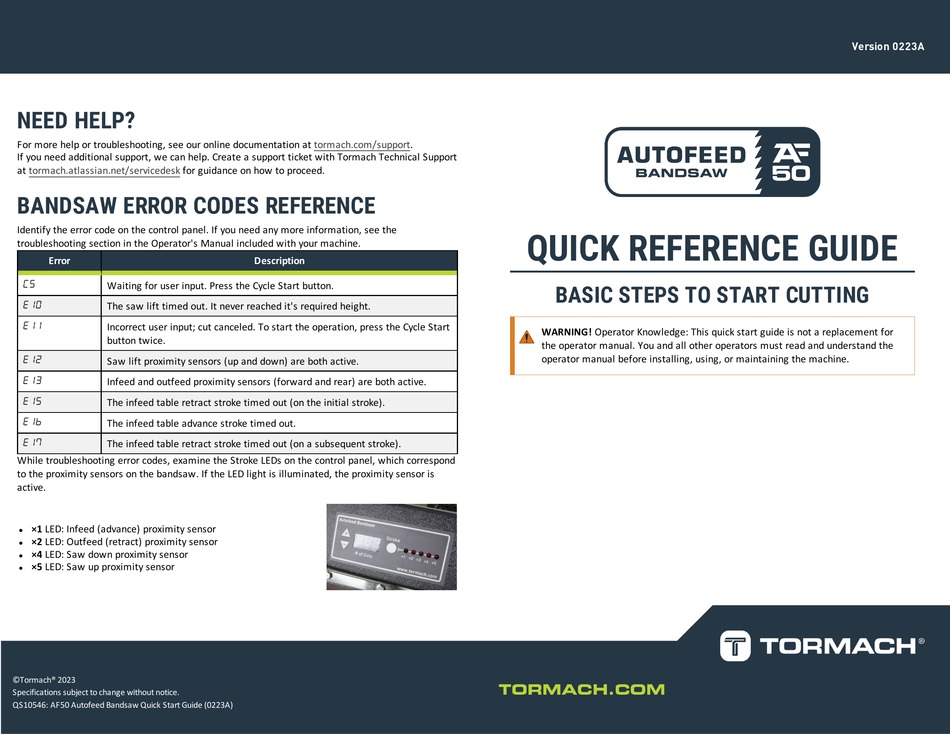

Tormach AF50 Quick Reference Manual

NEED HELP?
For more help or troubleshooting, see our online documentation at tormach.com/support.
If you need additional support, we can help. Create a support ticket with Tormach Technical Support
at tormach.atlassian.net/servicedesk for guidance on how to proceed.

BANDSAW ERROR CODES REFERENCE

Identify the error code on the control panel. If you need any more information, see the
troubleshooting section in the Operator's Manual included with your machine.
Error
CS
Waiting for user input. Press the Cycle Start button.
E10 The saw lift timed out. It never reached it's required height.
E11
Incorrect user input; cut canceled. To start the operation, press the Cycle Start
button twice.
E12
Saw lift proximity sensors (up and down) are both active.
E13
Infeed and outfeed proximity sensors (forward and rear) are both active.
E15
The infeed table retract stroke timed out (on the initial stroke).
E16 The infeed table advance stroke timed out.
E17
The infeed table retract stroke timed out (on a subsequent stroke).
While troubleshooting error codes, examine the Stroke LEDs on the control panel, which correspond
to the proximity sensors on the bandsaw. If the LED light is illuminated, the proximity sensor is
active.
×1 LED: Infeed (advance) proximity sensor
l
×2 LED: Outfeed (retract) proximity sensor
l
×4 LED: Saw down proximity sensor
l
×5 LED: Saw up proximity sensor
l
©Tormach® 2023
Specifications subject to change without notice.
QS10546: AF50 Autofeed Bandsaw Quick Start Guide (0223A)
Description
QUICK REFERENCE GUIDE
BASIC STEPS TO START CUTTING
WARNING! Operator Knowledge: This quick start guide is not a replacement for
the operator manual. You and all other operators must read and understand the
operator manual before installing, using, or maintaining the machine.
Version 0223A
