Dynalabs DYN-PM-250 Product Manual

250 n pm shaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model DYN-PM-250
250 N PM Shaker
Product Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DYN-PM-250 and is the answer not in the manual?

Questions and answers

Related Manuals for Dynalabs DYN-PM-250

Summary of Contents for Dynalabs DYN-PM-250

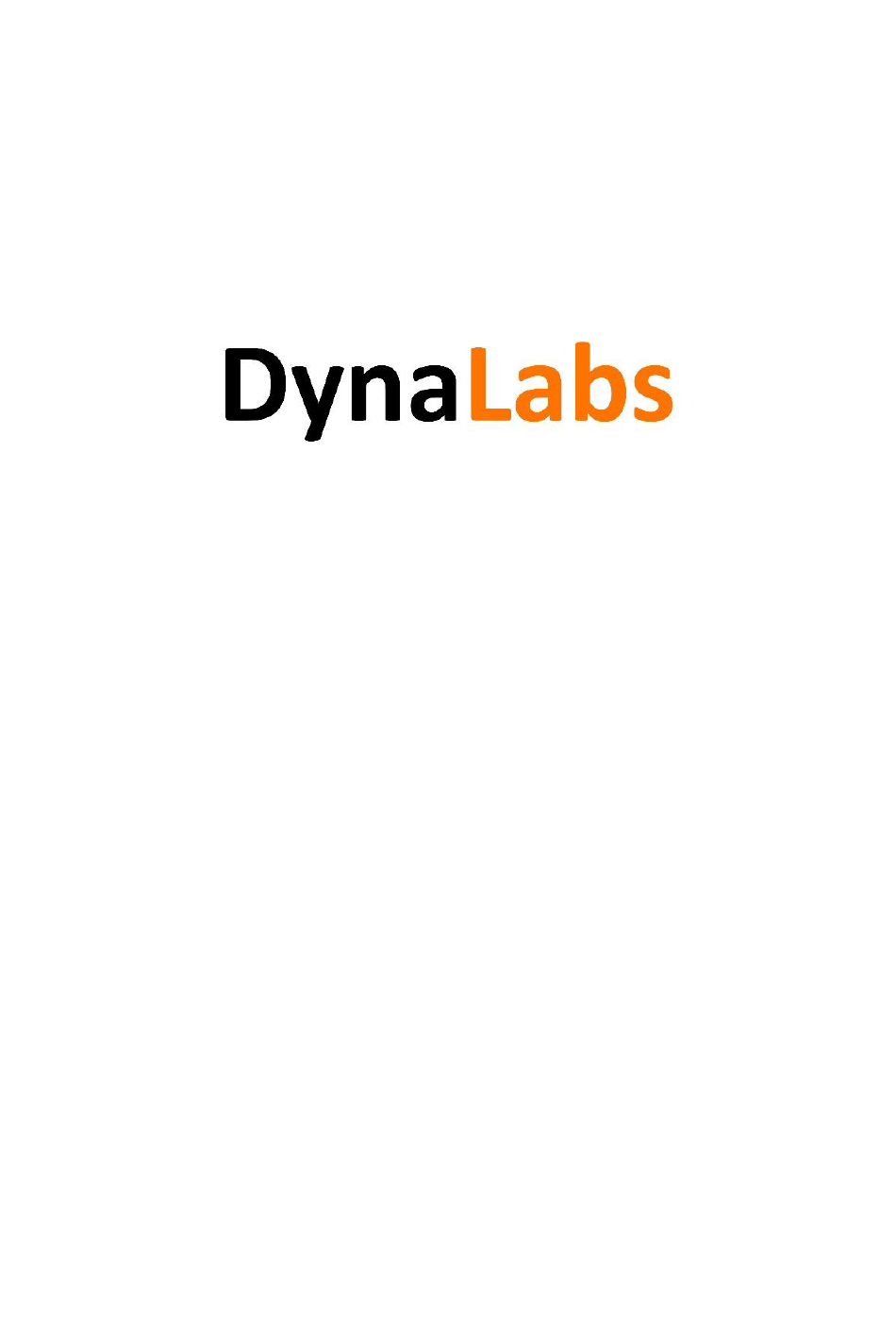

  • Page 1 Model DYN-PM-250 250 N PM Shaker Product Manual...
  • Page 2 All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. Product Support If at any time you have questions or problems with the DYN-PM-250 Shaker, please contact a Dynalabs engineer at: Phone: +90 312 386 21 89 (9 a.m.

  • Page 3: Table Of Contents

    All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. Table of Contents 1) Introduction ............................4 2) General Information ..........................4 2.1) Unpacking and Inspection ......................4 2.2) System Components ........................

  • Page 4: Introduction

    The moving element is usually suspended by an elastic membrane. DYN-PM-250 has a moving coil (driving coil) whose current is controlled for vibration generation. The stationary magnetic field is produced by a permanent magnet.
  • Page 5 All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. Item Description Amplifier Input Cooling Port Trunnion Handle...

  • Page 6: Specifications

    All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. 2.4) Specifications Parameters Specifications Output Force (Sinus) 250 N Output Force (Shock) 500 N Frequency 0-5 kHz Payload (Vertical) 2 kg Displacement (Peak to Peak) 25 mm...

  • Page 7: Outline Drawing

    All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. 2.5) Outline Drawing The dimensional properties of DYN-PM-250 shakers are given below. All dimensions are in mm.

  • Page 8: Operation And Installation

    All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. 3) Operation and Installation 3.1) General Refer to the figure below that shows the shaker connector configuration. Connect the shaker/amplifier cable to the shaker and amplifier.

  • Page 9: Amplifier

    All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. 3.2) Amplifier DYN-PM-250 uses an external power amplifier for drive signal amplification. Please note the wiring of the power amplifier given below.

  • Page 10: 2) Amplifier Internal Signal

    All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. 3.2.2) Amplifier Internal Signal The amplifier can generate sine signal from 1 Hz to 15 kHz with 1 Hz increments that the user can adjust with the Sine Frequency Generator Switch.

  • Page 11: Mounting Interface

    All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. 3.3) Mounting Interface The shaker has 9XM6 threads are for test unit connection. 3.4) Shaker Mounting The shaker is designed to rest on its rubber isolators. However, these isolators can be removed for rigid or semi-rigid mounting.

  • Page 12: Cooling

    All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. 3.5) Cooling DYN-PM-250 does not require forced cooling up to 125N operation. In order to achieve full performance level of 250N use the cooling unit supplied with the shaker.

  • Page 13: Maintenance And Troubleshooting

    All rights reserved. Reproduction or issue to third parties in any form whatsoever is not permitted without written authority from the proprietors. 4) Maintenance and Troubleshooting The DYN-PM-250 shaker is a sealed device requiring no maintenance if the operating instructions described in this manual are followed. Repair of damage to the coil, exciter body or magnet core should not be attempted.

  • Page 14: Declaration Of Conformity

    • MIL-STD-810-H-2019 (Test Methods: 501.7 - High Temperature, 502.7 - Low Temperature, 514.8 - Vibration, 516.8 – Shock) DYNALABS MÜHENDİSLİK SANAYİ TİCARET LİMİTED ŞİRKETİ declares that above mentioned products meet all the requirements of the above mentioned standards and regulations.
