ATOMSTACK X40 Pro User Manual page 13

45

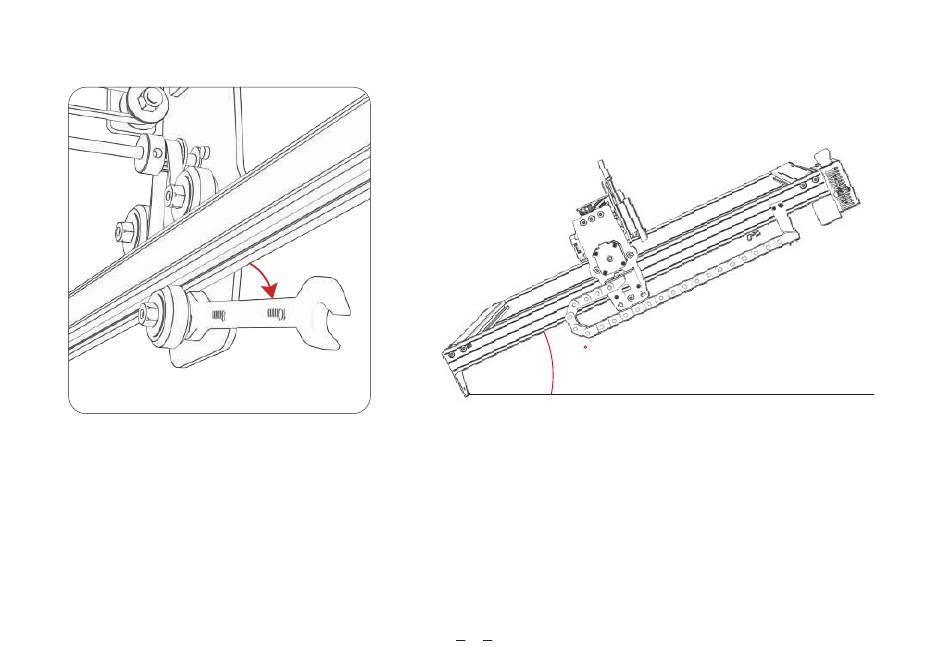

Adjust the eccentric wheel.
Tip: How to determine the tightness of the eccentric nut ?
With the support bracket secured, lift one end of the machine to a 45-degree angle with the horizontal plane, and then release
the X-axis or Y-axis bracket from a high position. If the bracket can slide to the end at a constant speed, the tightness is appro-
priate. If you find that the four feet are not level after assembly, please slightly loosen the eight screws in the first step. After the
If the sliding is not smooth, adjust the eccentric nut to make it slide smoothly
four feet are level, tighten the screws again.
