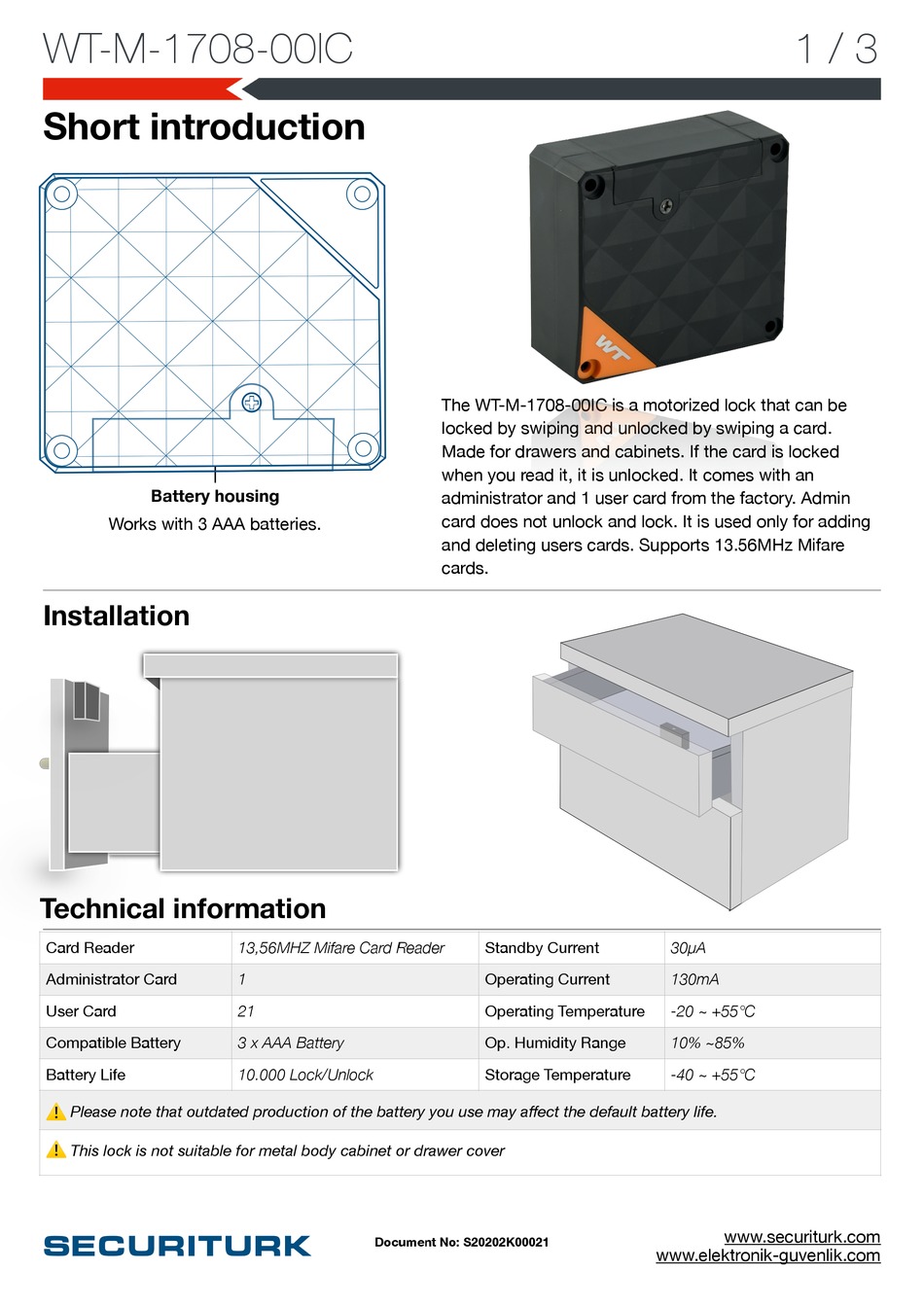

WT-M-1708-00IC
Short introduction
Battery housing
Works with 3 AAA batteries.
Installation
Technical information
Card Reader
Administrator Card
User Card
Compatible Battery
Battery Life
⚠ Please note that outdated production of the battery you use may affect the default battery life.
⚠ This lock is not suitable for metal body cabinet or drawer cover
SECURITURK
13,56MHZ Mifare Card Reader
1
21
3 x AAA Battery
10.000 Lock/Unlock
Document No: S20202K00021
The WT-M-1708-00IC is a motorized lock that can be
locked by swiping and unlocked by swiping a card.
Made for drawers and cabinets. If the card is locked
when you read it, it is unlocked. It comes with an
administrator and 1 user card from the factory. Admin
card does not unlock and lock. It is used only for adding
and deleting users cards. Supports 13.56MHz Mifare
cards.
Standby Current
Operating Current
Operating Temperature
Op. Humidity Range
Storage Temperature
1 3
/
30µA
130mA
-20 ~ +55℃
10% ~85%
-40 ~ +55℃
www.securiturk.com
www.elektronik-guvenlik.com
Advertisement
Table of Contents
Related Manuals for Securiturk WT-M-1708-00IC
Summary of Contents for Securiturk WT-M-1708-00IC
- Page 1 WT-M-1708-00IC Short introduction The WT-M-1708-00IC is a motorized lock that can be locked by swiping and unlocked by swiping a card. Made for drawers and cabinets. If the card is locked when you read it, it is unlocked. It comes with an Battery housing administrator and 1 user card from the factory.
- Page 2 WT-M-1708-00IC How to use The WT-M-1708-00IC comes with an administrator and a user card. Administrator card does not unlock and lock. It is used only for adding and deleting users cards. Supports 13.56MHz Mifare cards. Insert 3 AAA batteries before using them. Try before mounting with the user card. When the card is shown to the reader side of the lock, the latch is pushed out by the motor.
- Page 3 WT-M-1708-00IC Usage: Schematic 5. Unlock & Lock 5.1.Unlock 5.2.Lock Read the Card Open Drawer Push the Drawer Read the Card Dimensions 72mm 81,8mm 35mm 10mm 15mm SECURITURK www.securiturk.com Document No: S20202K00021 www.elektronik-guvenlik.com...
