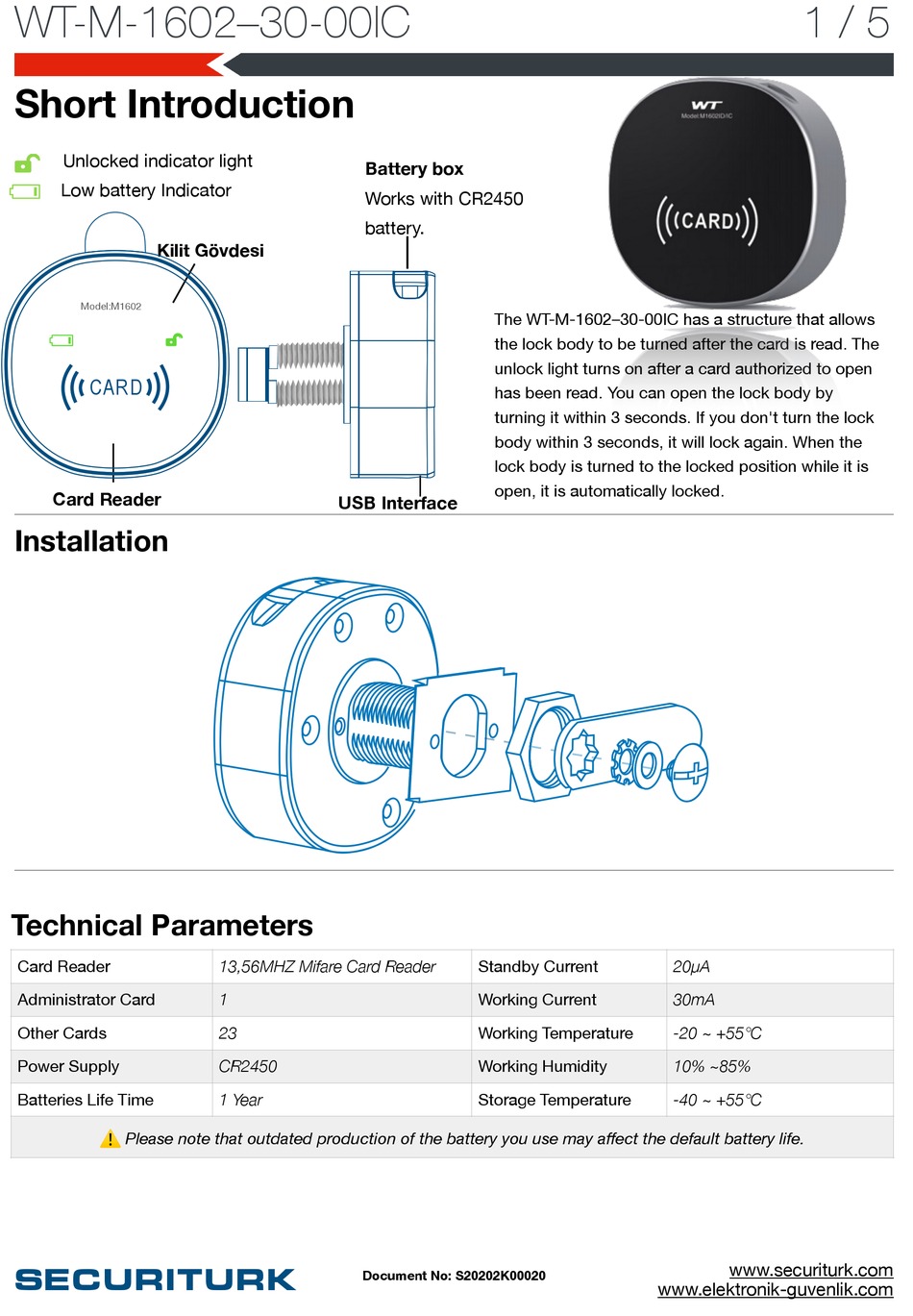

WT-M-1602–30-00IC
Short Introduction
Unlocked indicator light
Low battery Indicator
Kilit Gövdesi
Model:M1602
CARD
Card Reader
Installation
Technical Parameters
Card Reader
Administrator Card
Other Cards
Power Supply
Batteries Life Time
⚠ Please note that outdated production of the battery you use may affect the default battery life.
SECURITURK
Battery box
Works with CR2450
battery.
USB Interface
13,56MHZ Mifare Card Reader
1
23
CR2450
1 Year
Document No: S20202K00020
The WT-M-1602–30-00IC has a structure that allows
the lock body to be turned after the card is read. The
unlock light turns on after a card authorized to open
has been read. You can open the lock body by
turning it within 3 seconds. If you don't turn the lock
body within 3 seconds, it will lock again. When the
Lock body is turned to the locked position while it is
open, it is automatically locked.
Standby Current
Working Current
Working Temperature
Working Humidity
Storage Temperature
1 5
20µA
30mA
-20 ~ +55℃
10% ~85%
-40 ~ +55℃
www.securiturk.com
www.elektronik-guvenlik.com
/
Advertisement
Table of Contents
Related Manuals for Securiturk WT-M-1602-30-00IC
Summary of Contents for Securiturk WT-M-1602-30-00IC
- Page 1 Power Supply CR2450 Working Humidity 10% ~85% Batteries Life Time 1 Year Storage Temperature -40 ~ +55℃ ⚠ Please note that outdated production of the battery you use may affect the default battery life. SECURITURK www.securiturk.com Document No: S20202K00020 www.elektronik-guvenlik.com...
- Page 2 WT-M-1602–30-00IC How to use WT-M-1602-30-00IC It comes from the factory with no card defined. After installing the battery, the first card you have read will be assigned as the administrator card. You have to set the administrator card before using it. 24 cards can be defined to the lock, 1 of which is an administrator.
- Page 3 5.1.1. When you have the administrator card read 5 times in a row, the lock 2 beeps will be heard and all cards in the memory are deleted. ⚠ Remember that when all the cards in memory are deleted, the first card read will be assigned as the administrator card. SECURITURK www.securiturk.com Document No: S20202K00020 www.elektronik-guvenlik.com...
- Page 4 Micro USB output to the Micro USB port at the bottom of the lock. Remember, cards will not be erased even if the battery runs out. 6.2. Lock Rotate counter clockwise the knob to lock. SECURITURK www.securiturk.com Document No: S20202K00020 www.elektronik-guvenlik.com...
- Page 5 WT-M-1602–30-00IC Usage: Schematic 7. Unlocking & Locking 7.1.Unlocking 5.2.Locking Locked Read Card Turn the knob Unlocked Turn the knob Locked clockwise counter clockwise Dimensions (mm) Sabitleme deliği boyutu SECURITURK www.securiturk.com Document No: S20202K00020 www.elektronik-guvenlik.com...
