SVS SB-3000 Quick Start Manual

4
Get Control
Your SVS SB-3000 Subwoofer can be controlled from the new SVS Mobile App
or via the rear panel for maximum flexibility when optimizing performance
based on your room layout, speakers, system set-up and more.
Download The App
The SVS App is the easiest and most convenient
way to access all of the advanced control features
available on your SB-3000, from the comfort of
your favorite seat.
For iOS & Android Devices
On The Subwoofer
The rear panel features an intuitive all-new user interface with controls for adjusting the subwoof-
er's primary settings. The blue LED bar shows settings for Volume, Low Pass Frequency, and Phase.
Simply press the setting you want to change and then use the "+" and "-" buttons to adjust the
settings.
SVS SOUNDPATH WIRELESS + AUTO
ON
AUDIO ADAPTER
30Hz 40Hz 60Hz 90Hz
LINE LEVEL
0° 90°
_
L R
VOL
5
LFE
Please note, some DSP settings can only be accessed using the SVS app.
TRIGGER INPUT
Get Calibrated
3V-12V | AC/DC
For connection to an AV Receiver, set the SB-3000 volume to -10 in the app (on
the rear panel, all but the last two lights illuminated). Set the low pass filter to LFE
and the phase to 0 degrees, then run auto-set-up on the AV Receiver. Always
AUTO EQ - START
MIC INPUT
For additional guidance on recommended crossover or low pass filter settings specific to your system,
100V-120V ~ 50-60Hz 800W
visit our Subwoofer Matching Tool at www.svsound.com/merlin, or contact our Sound Experts.
PARAMETRIC EQ
HOME / VOLUME
-22
PEQ1 PEQ2 PEQ3
ACTIVE ACTIVE DISABLED
0 20 40 50 100 200
6
4
2
0
-2
-4
-6
-8
-10
PRESET MOVIE
-12
FREQ: 200 Hz
OPTIONS LOW PASS FILTER
BOOST: 0 dB
Q FACTOR: 1.2
UP (+)
AUTO / ON
[amber]
[blue]
LOW LOW PASS FREQUENCY
PASS
140Hz LFE LOW PASS
180° PHASE
PHASE
PHASE
VOLUME
DOWN (-)
S T A - 8 0 0 D | 2
re-run set-up if you move the subwoofer to
another location.
For connection to a Stereo Receiver or
Preamplifier without auto-set-up, adjust the
SB-3000 volume to match the output of your
main speakers, and adjust the low pass filter
to blend the bass between the SB-3000 and
your speakers. If needed, consult with our
Sound Experts on the best phase setting.
Quick Start Guide
Congratulations on choosing the SVS SB-3000, one of the most powerful and advanced
subwoofers in the world. We know you're anxious to get it cranking so the following steps will
guide you through the quick and easy installation process.
We strongly recommend reading the SB-3000 Owner's Manual to get the best possible
performance out of your new subwoofer. You'll find useful information about subwoofer
1
placement, connections, DSP functions and more. The full SVS SB-3000 Owner's Manual can be
found here: www.svsound.com/sb-3000-manual
Unbox It
If you followed the SB-3000 Subwoofer unboxing instructions properly you will
have the following items in front of you. Please confirm all pieces are available
before continuing.

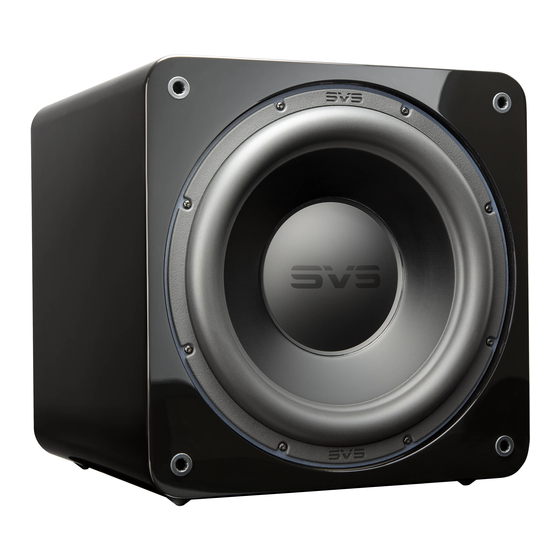

[SB-3000 Subwoofer]
[Detachable Power Cord]
SB-3000
[Removable Metal Grille]
