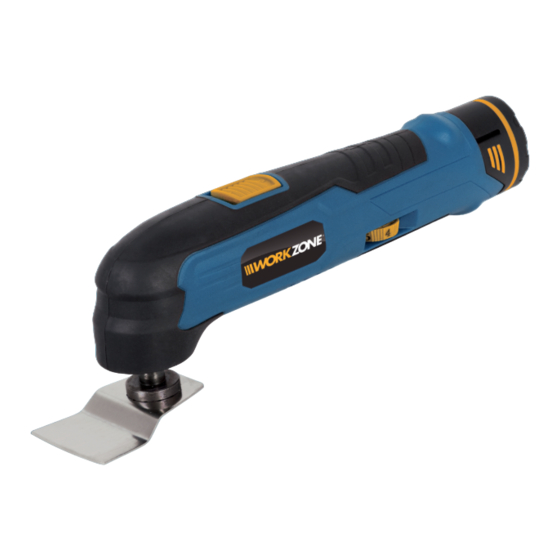

10.8V Multi Function tool
Original manual
Now you have purchased a Workzone® product
you can rest assured in the knowledge that as
well as your 3 year parts and labour guarantee
you have the added peace of mind of dedicated
helplines and web support.
AFTER SALES SUPPORT
ENTS
on tool
blade
0203-5142281
GB
1800-719901
IRL
w blade
nted blade
te
MODEL: WOC-1013, 05/2012, 50612
paper
www.servotool.eu
YEAR WARRANTY
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WOC-1013 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Workzone WOC-1013

  • Page 1 10.8V Multi Function tool Original manual Now you have purchased a Workzone® product you can rest assured in the knowledge that as well as your 3 year parts and labour guarantee you have the added peace of mind of dedicated helplines and web support.
  • Page 2: Table Of Contents

    Introduction General Information and safety instructions Assembly and parts list Instructions Other useful information CE Declaration Warranty card aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 3: Introduction

    Congratulations! You have made an excellent choice with the purchase of this quality Workzone® product. By doing so you now have the assurance and peace of mind which comes from purchasing a product that has been manufactured to the highest standards of performance and safety, supported by the high quality standards of ALDI.
  • Page 4: General Information And Safety Instructions

    Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 2) Electrical safety a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 5 Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 6 Caution! The use of any accessories or additional tools other than those recommended in this manual may lead to an increased risk of injury and may invalidate your warranty. Only use original replacement parts. aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 7 • Children should be supervised to ensure that they do not play with the appliance. aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 8 The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. • The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 9: Assembly And Parts List

    Assembly and parts list Fig. 1 1. On/Off switch 2. Speed control 3. Sanding sole 4. Diamond saw blade 5. Sandpaper 6. Scraper 7. E-cut saw blade 8. Segmented HSS saw blade aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 10 13 + 14 102907 Scraper 102908 Ring + Screw 28 + 29 102909 Half round cutting blade 102910 Plunge cutting blade 102911 Sanding pad 102912 Charger complete 36 + 37 102913 Diamond saw blade aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 11 SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 12 If the sandpaper is worn in a particular spot, you can remove it, turn it 120° and refit it or replace it. Warning! Switch the machine off and unplug the machine before mounting the accessories. aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 13 Insert the battery into the base of the appliance, as shown on the illustration. Push the battery until it latches in. • Press the locking buttons on both sides before removing the battery, and disengage the battery from the base of the appliance. aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 14: Instructions

    As soon as the red light turns off, charging has been completed and the device is ready for operation. Only the green light is now illuminated. Only use the charger in a dry environment at temperatures between 5˚C and 40˚C. aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 15 Environment To prevent damage during transport, the appliance is delivered in packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging. aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 16 Li-ION batteries can be recycled. Drop them off at a disposal center for chemical wastes, so that they can be recycled or disposed of in environmentally manner. Do not dispose of batteries into domestic waste. aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 17: Faq

    4. Excessive sparking or electric motor • There’s dirt inside the motor or the runs irregular. carbon brushes are worn. • Replace the carbon brushes or bring the machine to a specialized repair centre. aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 18: Other Useful Information

    Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 19 1 HSS segment saw blade 1 Allen key 1 Sanding plate 1 Instruction manual 1 Quick start quide 1 After Sales support card Check the appliance, any loose parts and accessories for damage caused during transport. aFTEr SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 20 SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 21 SalES SuPPOrT 0203-5142281 1800-719901 www.servotool.eu WOC-1013...
  • Page 22: Ce Declaration

    DEclARAtion oF conFoRMitY We declare under our sole responsibility that this product WOC-1013, 10.8V Multifunction tool is in conformity and accordance with the following standards and regulations: EN60745-1, EN60745-2-4, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3, EN60335-1, EN60335-2-29 2006/42/EC, 2006/95/EC, 2004/108/EC, 2002/95/EC, 2002/96/EC...
  • Page 23 SalES SuPPOrT return your completed warranty card to: 0203-5142281 Circuit Tech ltd. www.servotool.eu 1800-719901 Units 1/9 Stanley Mill • Kirkebrok Road • Deane, MODEL: WOC-1013, 05/2012, 50612 Bolton Lancs, England • BL3 4JE Contact and internet: www.servotool.eu Fax: (+44)(0)1204-659607 YEar WarranTY...
