INSTALLATION INSTRUCTIONS

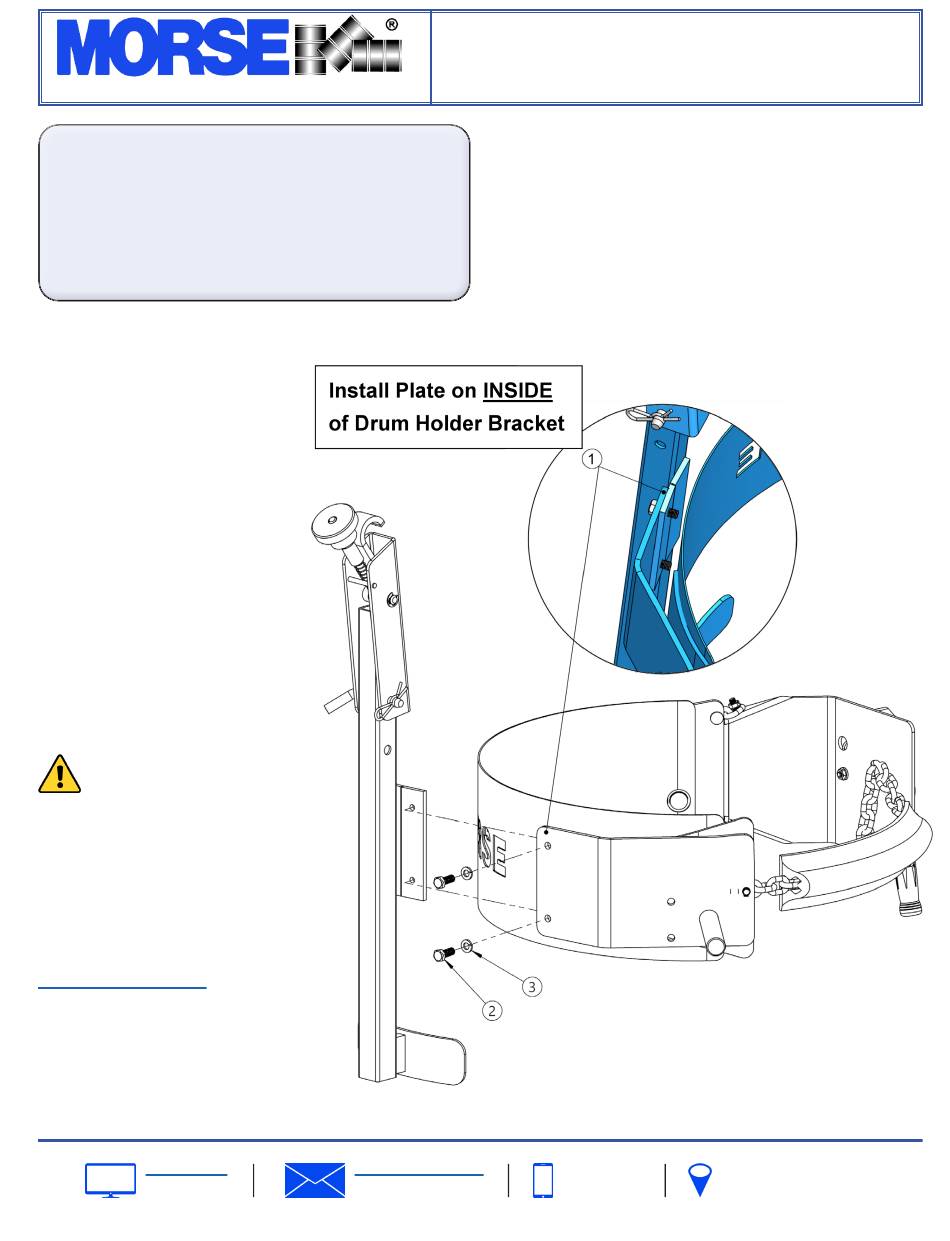

1.
Position Rim Clamp Assembly
on INSIDE of drum holder bracket
(item 1) with holes aligned
2.
Bolt in place with
2 bolts (item 2) and
2 washers (item 3)
using 9/16" wrench
WARNING:
This product can expose you to
chemicals including barium sulfate,
cobalt, titanium dioxide, and
2-methylimidazole, which are known
to the State of California to cause
cancer, and bisphenol-A, which is
known to the State of California
to cause birth defects or other
reproductive harm.
For more information go to
www.P65Warnings.ca.gov
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc.
Kit: Adjustable Rim Clamp
Operator's Manual
for Morse Adjustable Rim Clamp Kit
Page
1 - 2
Kit # 4560BM-P
2
Serial number 0322 to ____ (MMYY)
2 - 3
4
service@morsedrum.com
Form PL4560BM-P (0322-____)
Kit # 4560BM-P
(315) 437-8475
103 Kuhn Rd.
Syracuse, NY, 13208 U.S.A.
(Updated 1 Mar, 2022)
