morse 4560-P Operator's Manual

The Specialist In Drum Handling Equipment
CONTENTS
Parts List and Diagram. . . . . . . . . . . . . . . . . . .
Installation Instructions. . . . . . . . . . . . . . . . . . . .
Operating Instructions. . . . . . . . . . . . . . . . . . . .
Assembly Instructions for Replacement Parts. . . . . . 3
INSTALLATION INSTRUCTIONS
for MORCINCH Drum Holder
TM

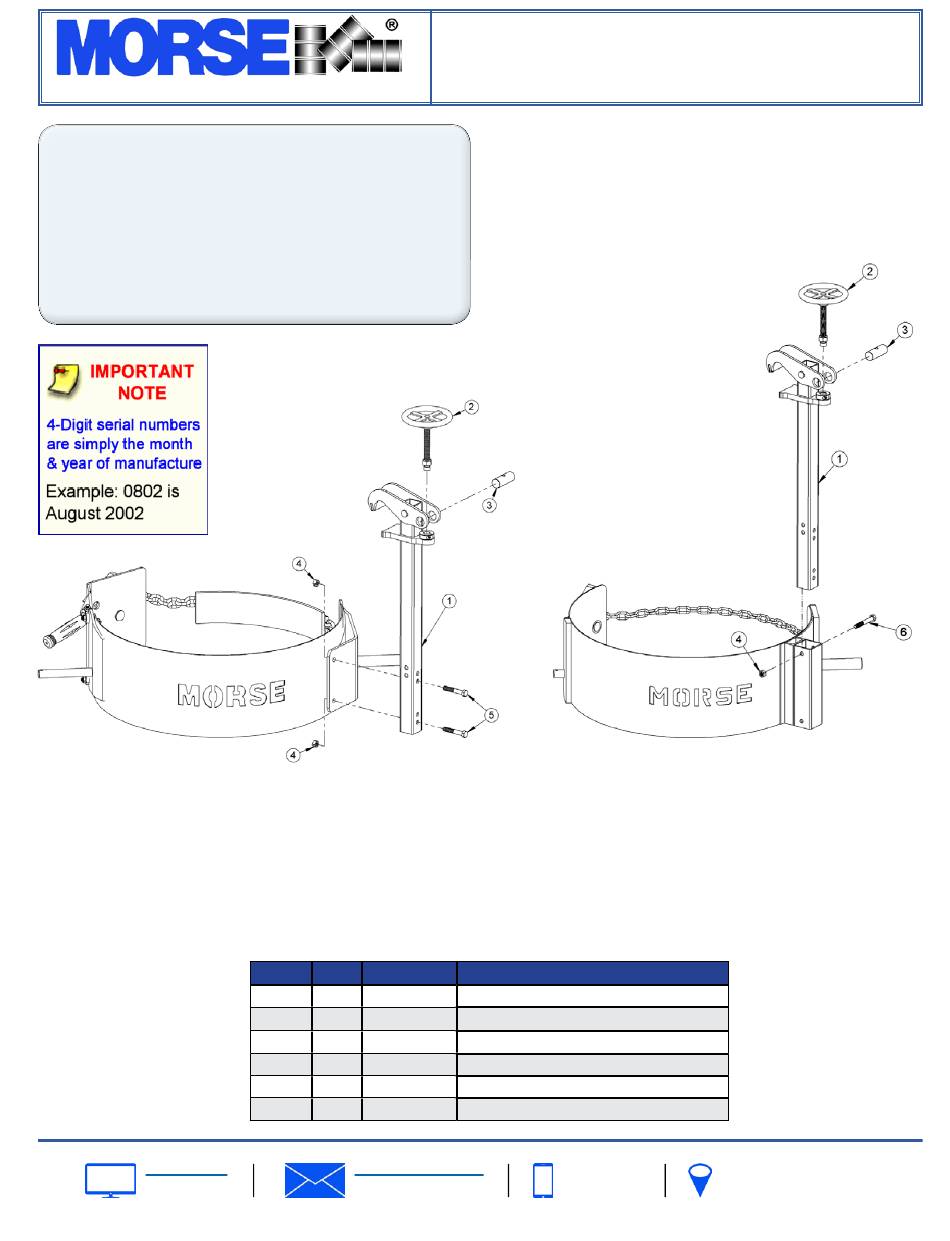

1. Position Rim Clamp Assembly (item 1) on drum holder bracket
with holes aligned.
2. Bolt in place using 2 bolts (item 5) and 2 nuts (item 4).
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc.
Page
ITEM QTY Kit #
1 1 5806-P
2 1 3616-P
3 1 3510-P
4 2 1169-P
5 2 82-P
6 1 1315-P
service@morsedrum.com
Form PL4560 (0615-____)
Kit # 4560-P
Kit, Rim Clamp Assembly
Operator's Manual
for Morse Rim Clamp Assembly Kit
Kit # 4560-P
1
Serial number 0615 to ____ (MMYY)
1
2
INSTALLATION INSTRUCTIONS
for Drum Holder with Socket Tube
1. Slide Rim Clamp Assembly (item 1) down through socket
tube, and line up top holes in Rim Clamp Assembly with top
holes of socket tube.
2. Use bolt (item 6) and nut (item 4) to bolt in place through the
top holes of the socket tube and the Rim Clamp Assembly.
DESCRIPTION
WELD, RIM CLAMP
HANDWHEEL ASM, 4", 3540-P 185R
THREADED BARREL, RIM CLAMP
NUT, 3/8-16 REV HEX LOCK
HHCS, 3/8-16 X 2-1/4 GR2
HHCS, 3/8-16 X 2-3/4 GR2
