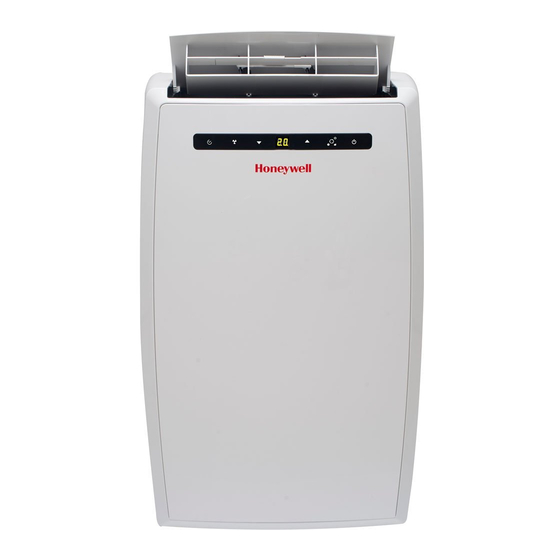

Portable Air Conditioner
User Manual
Read and save these instructions before use
Customer Support:
Web: www.jmatek.com
USA: 1-800-474-2147 | usinfo@jmatek.com
CANADA^: 1-888-209-0999 | canadainfo@jmatek.com
^ Canada Customer Support service available for models sold in Canada only.
Model:
MN10CCS / MN10CHCS
MN12CCS / MN12CHCS
MN14CCS / MN14CHCS
Series
Advertisement
Table of Contents
Related Manuals for Honeywell MN10CCS
Summary of Contents for Honeywell MN10CCS
- Page 1 Portable Air Conditioner User Manual Read and save these instructions before use Model: MN10CCS / MN10CHCS MN12CCS / MN12CHCS MN14CCS / MN14CHCS Series Customer Support: Web: www.jmatek.com USA: 1-800-474-2147 | usinfo@jmatek.com CANADA^: 1-888-209-0999 | canadainfo@jmatek.com ^ Canada Customer Support service available for models sold in Canada only.
- Page 2 SAFETY READ AND SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. IN CASE THERE IS ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL PREVAIL.
- Page 3 SAFETY (CONTINUED) • This appliance has been manufactured for use in domestic environments and should not be used for other purposes. • Only use the installation kit provided to install this unit. DO NOT attempt to extend the Exhaust Hose or install this unit using other methods other than that shown in this manual.
- Page 4 THANK YOU Congratulations on your purchase of this Honeywell Portable Air Conditioner. Regarding the information pertaining to the installation, handling, servicing, cleaning and disposal of the appliance, please refer to the below paragraph of the manual. USER TIPS Portable Air Conditioners are ideal for spot cooling. The compressor, condenser and evaporator are housed in a compact unit.
-
Page 5: Parts Description
PARTS DESCRIPTION 1) Control Panel Power Supply Cord (Incl. Signal Receptor) 2) Air Outlet Remote Control 3) Handle 10) Lower Drain Plug with Plastic Cap (Air Conditioning Mode) 4) Casters 11) Upper Drain Plug (De-humidifier Mode) 5) Upper Dust Filter 12) Lower Dust Filter 6) Upper Grill 13) Lower Grill... -
Page 6: Installation
INSTALLATION It is important that the installation instructions below are followed for successful installation of this Portable Air Conditioner. Please call Customer Support if you have any difficulties or queries regarding these installation procedures. Installation Kit: 1. Window Bracket Kit (1 Set) 4. - Page 7 INSTALLATION (CONTINUED) 2. The Window Brackets allow you to install to windows and balcony doors of different heights or width. 19.7" (50 cm) 1 part 19.7" (50 cm) to 38.2" (97 cm) 2 parts Adjustable Knobs 47.2" (1.2 m) 3 parts To install the window bracket to the window frame, you need to adjust the height or width of the window bracket by extending the length according to the height or width of the window.
- Page 8 INSTALLATION (CONTINUED) 4. Connect the window bracket to the window bracket panel adapter. Slide-in the window bracket panel adapter then rotate clockwise until it is locked in place. 5. Connect the window bracket to the window. 6. The Portable Air Conditioner is now ready to use.
- Page 9 INSTALLATION (CONTINUED) IMPORTANT: Do not replace or lengthen the Exhaust Hose as this could cause the unit to malfunction. 20" (50 cm) NOT RECOMMENDED RECOMMENDED WARNING: Any warranties included with this product will be voided if an extra extension hose is added to the originally provided installation kit or if the installation is performed differently than the manufacturer's instructions, without proper consultation.
-
Page 10: Use And Operation
USE & OPERATION CONTROL PANEL (1),(2) STOP 1) Power Control / Standby Mode 4) Timer / Temperature Set Controls 2) Warning Light (when flashing) 5) Fan Speed Control 3) Mode Control FUNCTION BUTTONS POWER CONTROL The Power Control turns the unit on and off. When the unit is plugged in, this button lights up indicating it is in a Standby Mode ready to be switched on anytime. - Page 11 USE & OPERATION (CONTINUED) FUNCTION BUTTONS (CONTINUED) • Dehumidifying Mode Air is dehumidified as it passes through the unit, without being in full cooling mode. If room temperature is higher than 25°C (77°F) fan speed can be adjusted; otherwise fan speed is preset to LOW.
- Page 12 USE & OPERATION (CONTINUED) FUNCTION BUTTONS (CONTINUED) TEMPERATURE / TIMER SET CONTROLS • Used for adjusting the timer and thermostat. • The default display is setting temperature. In cooling mode, when button is pressed, the set temperature is displayed and may be ▼...
- Page 13 USE & OPERATION (CONTINUED) REMOTE CONTROL The functions work the same as the Portable Air Conditioner's Control Panel. All key functions can be accessed from the remote control. Power Control ON / OFF Temperature / Timer Set • Used for adjusting the timer and temperature.
-
Page 14: Cleaning And Maintenance
CLEANING & MAINTENANCE Appliance Maintenance: Turn off the appliance before disconnecting the power supply. Only clean the appliance with a soft dry cloth. Dust Filter Maintenance: The dust filter is to be cleaned every two weeks to maintain air cooling efficiency. Please follow the below instructions for Upper cleaning the dust filter: Dust Filter... - Page 15 CLEANING & MAINTENANCE (CONTINUED) Disconnecting the Window Installation Kit: • Remove the Exhaust Hose from the unit by rotating anti-clockwise to unlock the knob mechanism then sliding out. • Remove the window bracket panel adapter from the window bracket by rotating anti-clockwise then pulling away.
-
Page 16: Water Condensation Drainage
WATER CONDENSATION DRAINAGE When there is excess water condensation inside the unit, the air conditioner stops running and shows a warning light (the Power Control button flashes with a red light). This warning light indicates that the water condensation needs to be drained using the following procedures: Manual Draining in Cooling, Dehumidifying and Heating* Modes Water may need to be drained in high humidity areas. - Page 17 WATER CONDENSATION DRAINAGE (CONTINUED) Continuous Draining for Dehumidifier Mode While using the unit in dehumidifier mode, continuous drainage is recommended. Unplug the unit from power source. Remove the upper rubber drain plug. Some residual water may spill so please have a pan to Upper Rubber Drain Plug collect the water.
-
Page 18: Troubleshooting Guide
TROUBLESHOOTING GUIDE The following troubleshooting guide addresses the most common problems. If problems persist, call customer support. Unplug and disconnect the appliance from the power source before attempting to troubleshoot. PROBLEM POSSIBLE CAUSE SOLUTION No electricity. Check for power. Batteries in the remote control need to be Change remote control batteries. - Page 19 TROUBLESHOOTING GUIDE (CONTINUED) PROBLEM POSSIBLE CAUSE SOLUTION A door or window is open. Make sure the window or door is closed. The dust filter is dirty. Clean the dust filter. The Exhaust Hose is Reinstall Exhaust Hose properly detached. (refer to Installation section). Runs but not Temperature setting is Reduce temperature setting on control panel.
- Page 20 TROUBLESHOOTING GUIDE (CONTINUED) PROBLEM POSSIBLE CAUSE SOLUTION Heating function not Check that the Heating function has been activated. activated yet. will be illuminated when the The ambient temperature Heater is switched ON. is too high. Heater* is not switching ON. Heating is activated only when the ambient Switch on the Heating function when the ambient...
- Page 21 Made in China © 2019 JMATEK Limited. All rights reserved. The Honeywell Trademark is used under license JMATEK North America LLC from Honeywell International Inc. Honeywell International Inc. makes no Mahwah, New Jersey 07495 USA representations or warranties with respect to this product.
