XOCECO LC27U7D Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LCD TELEVISION
LC27U7D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC27U7D and is the answer not in the manual?

Questions and answers

Related Manuals for XOCECO LC27U7D

Summary of Contents for XOCECO LC27U7D

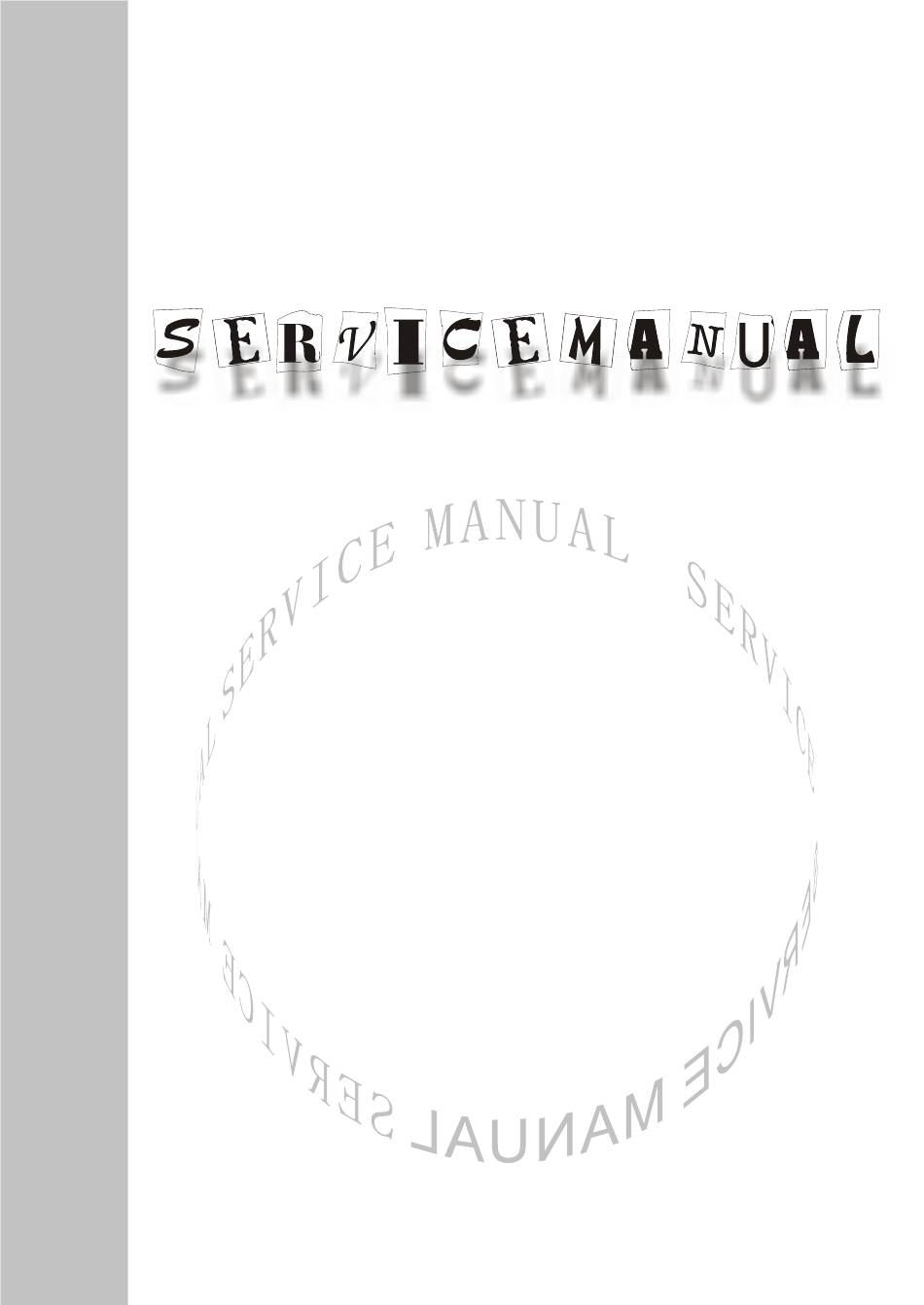

  • Page 1 LCD TELEVISION LC27U7D...

  • Page 2: Table Of Contents

    CONTENTS Safety instructions………………………………………………………………………..… Adjustment instructions …………………………….…….…………………………….… Trouble shooting ……………………………………………………….…………………… Working principle analysis……………………………………………………….…………. Block diagram…………………………………..……………….……………….………… IC block diagram………………………………………………………………………..…… Main assembly……………………………………………………………………………..… Identification criteria for the bright spot and dark spot of the LCD screen………..…. Wiring diagram ……………………………………………………………..……………... Troubleshooting charts………………………………………………………………..…… Schematic diagram (CPU and TV board) ……………………………………………..…… Schematic diagram ( power supply board)………………….…........

  • Page 3: Safety Instructions

    Attention: This service manual is only for service personnel to take reference with. Before servicing please read the following points carefully. Safety instructions 1. Instructions Be sure to switch off the power supply before replacing or welding any components inserting/plugging in connection wire Anti static measures to be taken (throughout the entire production process!): a) Do not touch here and there by hand at will;...
  • Page 4 would be unable to work and no way to get it repaired. 2.11 Special care must be taken in transporting or handling it. Exquisite shock vibration may lead to breakage of screen glass or damage to driving circuit. Therefore it must be packed in a strong case before the transportation or handling.

  • Page 5: Adjustment Instructions

    Alignment instruction 1 Alignment equipment PM5518 (video signal generator) K-7253 (VGA signal generator) CA210 (white balancer) 2 Alignment flow-chart The alignment flow-chart is shown as fig-1 Check DDC, HDCP KEY and CPU Factory initialization setup IF channel voltage of TV and AGC voltage adjustment Support format of VGA pre-set Adjustment for sub-brightness and white balance of VGA/HDMI (color temperature 6500k, 9300k and 12000k)
  • Page 6 Table1 sub-menu adjustment Items Range Introduce PW on LOGO ON/OFF Display 5s LOGO of turn on the TV NO Sig LOGO ON/OFF If display LOGO in no signal Black Screen BLUE/BLACK If display blue screen and white noise wave in no signal, setting “BLUE”...
  • Page 7 f. Input PROG852(640*480/75Hz) and the eighth level gray-scale of PATTERN signal of VG-849 to HDMI, repeatedly the b-e course. In the HDMI channel, preset value of offset_R, offset_G and offset_B to 15, preset value of gain_R, gain_G and gain_B to 25. 3.4 Adjustment for sub-brightness and white balance of YPbPr channel a.

  • Page 8: Trouble Shooting

    Item Setting Item Setting Item Setting Picture mode NATURE OSD language English Sound mode NORMAL HALFTONE STEREO WEAK DURATION VGA/HDMI NORMAL SCREEN FULL MAG.C ANTENNA CATV Trouble shooting Before servicing please check to find the possible causes of the troubles according to the table below.
  • Page 9 Deterioration of color phase or color Check if all the picture setups have been corrected. tone Screen position or size is not proper Check is the screen position and size is correctly set Picture is twisted and deformed Check to see if the picture-frame ratio is properly set Picture color changed or colorless Check the “Component”...

  • Page 10: Working Principle Analysis

    control so as to enable the liquid crystal TV set to recheck the signal and then to display correct picture signal Working principle analysis RF signal from the antenna to tuner, via high frequency amplifier and mix frequency to obtain IF signal, and then via pre-IF amplifier in V104, then it send to processed IF filter of SAW (Z103), obtain more idea IF speciality, it processed to IF amplifier, phase locked logic VCO and sync detection of N101 (M52760E) in the TV board to obtain VIDEO;...

  • Page 11: Block Diagram

    BLOCK DIAGRAM AV1-A AV2/S-A YPbPr-A AUDIO VGA/DVI-A HDMI-A NA02 AUDIO SIF DEC AUDIO AMP HEF4052 PROCESSOR N201 N401 N301 LA72700 TPA3008D2 R2S15900SP AV OUT Z102 IF AMP TUNER SPEAKER N101(TV) M52760E Z103 HEADPHONE VIDEO VIDEO1 SCALER DECORDER Y/VIDEO2 CCIR656 A/D D/A N601 8bit DEINTERLACER...

  • Page 12: Ic Block Diagram

    IC block diagram TVP5147 Copy CVBS/Y Data Protection Detector Processor Analog Front End VI_1_A Composite and S-Video Processor CVBS/ VI_1_B C/Pb VI_1_C Luma Y[9:0] CVBS/Y Separation Processing Output YCbCr 5-line Formatter VI_2_A Chroma C/CbCr Clamping Adaptive CVBS/ Processing C[9:0] VI_2_B Comb VI_2_C 11-Bit...
  • Page 13 M52760 2: AFT 3: AGC 4, 5: picture If input 7: sound IF input 13: SIF output 10: mono sound output 18: TV- VIDEO output 14, 17: +5V-1 power supply...
  • Page 14 LA72700 5: SIF input 25: TV sound -R output 26: TV sound- L output 11: SDA 12: SCL 31: +9Vpower supply...
  • Page 15 MST6151 207, 208: HDMI-R input 2, 3: HDMI-G input 5, 6: HDMI-B input 8, 9: HDMI-CLK input 14: HDMI-SDA 15: HDMI-SCL 20, 21: VGA-B input 22: VGA-G input 23, 24: VGA-G input 25, 26: VGA-R input 18: VGA H-sync input 19: VGA V-sync input 27, 28: PB input 29, 30: Y input...
  • Page 16 PIN DIAGRAM (MST5151A) VDDC DVI_G+ DVI_G- VDDM Pin 1 AVDD_DVI DQS[0] DVI_B+ MDATA[0] DVI_B- MDATA[1] MDATA[2] DVI_CK+ MDATA[3] DVI_CK- MDATA[4] AVDD_DVI MDATA[5] REXT MDATA[6] MDATA[7] AVDD_PLL MDATA[8] DDCD_DA MDATA[9] DDCD_CK MDATA[10] MDATA[11] AVDD_ADC HSYNC1 VDDM MDATA[12] VYSNC1 BIN1P MDATA[13] BIN1M MDATA[14] MDATA[15] SOGIN1...
  • Page 17 PIN DESCRIPTION MCU Interface Pin Name Pin Type Function HWRESET Schmitt Trigger Input Hardware Reset, active high w/ 5V-tolerant DBUS[3:0] I/O w/ 5V-tolerant MCU 4-bit DDR Direct bus; 4mA driving strength 75-72 I w/ 5V-tolerant MCU Bus ALE, active high I w/ 5V-tolerant MCU Bus RDZ, active high I w/ 5V-tolerant...
  • Page 18 DVI Interface Pin Name Pin Type Function DVI_R+ Input DVI Input Channel Red + DVI_R- Input DVI Input Channel Red - DVI_G+ Input DVI Input Channel Green + DVI_G- Input DVI Input Channel Green - DVI_B+ Input DVI Input Channel Blue + DVI_B- Input DVI Input Channel Blue -...
  • Page 19 Pin Name Pin Type Function LVA2M Output A-Link Negative LVDS Differential Data Output LVA2P Output A-Link Positive LVDS Differential Data Output LVA3M Output A-Link Negative LVDS Differential Data Output LVA3P Output A-Link Positive LVDS Differential Data Output LVACKM Output A-Link Negative LVDS Differential Data Output LVACKP Output A-Link Positive LVDS Differential Data Output...
  • Page 20 Pin Name Pin Type Function (for differential clocks) MCLK Output DRAM Memory Clock RASZ Output Row Address Strobe, active low CASZ Output Column Address Strobe, active low Output Write Enable, active low DQM[1:0] Output Data Mask Byte Enable 101, 133 DQS[3:0] Output Data Strobe...
  • Page 21 Pin Name Pin Type Function Ground Ground 1, 7, 13, 16, 35, 50, 64, 65, 80, 87, 103, 108, 114, 126, 132, 140, 155, 157, 159, 163, 172, 183, 184, 194, 205, 206...
  • Page 22 R2S15900 2: input L of AV1 27: input R of AV1 3: input L of AV2/S 26: input R of AV2/S 4: input L of YPBPR/VGA/HDMI 25: input R of YPBPR/VGA/HDMI...
  • Page 23 5: input L of TV 24: input R of TV 6: output L of AVOUT 23: output R of AVOUT 11: L output 19: R output 18: SCL 17: SDA 28: +9Vpower supply TPA3008 1: MUTE 3: R input 5: L input 20, 17: L input 41, 44: R input 15, 23, 33, 39, and 47: +18V power supply...

  • Page 24: Main Assembly

    Main assembly NAME MAIN COMPONENT AND it’S NO. TV board 667-L27U6-40 N101 M52760 (352-52760-10) N201 LA72700 (353-72700-10) N301 R2S15900 (353-15900-10) N401 TPA3008D2 (353-30080-10) CPU board 667-L27U6-56 N101 MST6151DA (353-61510-10) N601 TVP5147 (353-51470-10) NA01 CS4340 (353-43400-30) N801 MTV412 (353-04120-10) Keypad board 667-L27U6-05 Remote control 301-RL27U6-27M (RC-R27M)

  • Page 25: Identification Criteria For The Bright Spot And Dark Spot Of The Lcd Screen

    Identification criteria for the bright spot and dark spot of the LCD screen Q’ty allowed Distance between two spots Category criteria 15" 20" 22" 30" 40" 15" 20" 22" 30" 40" One single ≤5 ≤2 ≤5 ≤2 ≤3 spot Bright 2 neighboring ≥15mm ≤2...

  • Page 26: Wiring Diagram

    Wiring diagram...

  • Page 27: Troubleshooting Charts

    Troubleshooting guide 1. No raster Turn-on power supply, check if the red indicator is light in the STANDBY? blue Check if PIN8(5V) of CPU Press POWER button in the board is normal? unit button and sensor control, check the indicator. Check if the PIN12 of X503 in Check STANDBY circuit of CPU board is high-level?
  • Page 28 2. Raster, but no picture Check if the unit button Does display sensor control menu in screen when operation? press submenu? Check channels have signal? HDMI/VGA/YPRP Enter factory-menu, Which is no initialization EEPROM, signal Replacing then turn off the TV, channels CPU board turn on again, display...
  • Page 29 3.no sound Check if PIN15, PIN30 Check PIN11 and PIN38 voltage of PIN19 output wave of Replacing N401 N401 is normal? N301 Check power supply Check PIN25 PIN26 output wave of Replacing N301 N201 Check PIN5 wave of Replacing N201 N201 Check PIN11 wave of TUNER1...

  • Page 41: Schematic Diagram ( Power Supply Board)

    LC-23U7 AND LC-27U7 POWER SUPPLY BOARD...
  • Page 43 LC27U7 PART LIST OF EXPLODED VIEW DESCRIPTION PART# TRANSFER AXIS COVER 808-10688-AF0 HOLDER ASSY 615-10429-AR0 REAR CABINET COVER(RIGHT) 808-10687-AF0A IR RECEIVER BOARD 667-L27U6-09 LED COLUMN 700-60215-100 POWER BOARD ASSY 667-L27U6-20 POWER SOCKET BRACKET 870-20955-AF0 VIDEO PROCESSING BOARD 667-L27U6-40 DISPLAY SCREEN 335-27001-00 SPEAKER ASSY 615-20453-00...

  • Page 44: Part List

    PART LIST PART# DESCRIPTION LOCA.NO. KEY1 HDCP N803 SL27U70-10B10 SOFTWARE VGA DDC ND01 SL27U70-10C10 SOFTWARE HDMI DDC NH01 SL27U70-12A10 SOFTWARE CMO27" N801 100-L27U70-13 LC-27U7D 100-L27U70-01 LC-27U7 15 335-27001-00 DISPLAY SCREEN V270W1-L04 364-41207-00 ANTENNA SOCKET HR-F 485-10157-00 POWER CORD LAP-31+730 BLACK 2m ! 488-10012-00 BATTERY 7#( made in china 604-L27U77-00A...
  • Page 45 851-53008-31 SCREW SJ2825 ST3X8FT D.Zn 851-53008-31 SCREW SJ2825 ST3X8FT D.Zn 851-53008-31 SCREW SJ2825 ST3X8FT D.Zn 851-53008-31 SCREW SJ2825 ST3X8FT D.Zn 852-43006-85 SCREW F(+)M3X6- BLACK 852-43006-85 SCREW F(+)M3X6- BLACK 852-43006-85 SCREW F(+)M3X6- BLACK 852-43006-85 SCREW F(+)M3X6- BLACK 852-43008-85 SCREW F(+)M3X8- BLACK 852-53006-81 SCREW SJ2830 M3X6-D.Zn 852-53006-81...
  • Page 46 881-62875-94 BACK PLATE LABEL (LC-27U7D,DIGISTAR 881-63329-00 LABEL (FPE2000,AUDIOVOX) 881-63840-00 POWER SYMBOL LABEL 881-64038-00 TRANSPORTATION LABEL (LC-27U7D,DIGISTAR) 881-80776-00 OPERATION CARD (Digistar, L27U7) 881-80788-00 REGISTER CARD (DIGISTAR) 881-80792-00 EXTENDED CARD (DIGISTAR,27-32LCD) 881-80811-00 ACKNOWLEDGEMENT CARD ((DIGISTAR) 886-31021-00 ACCESSORY BOX (15L) 886-31492-480W CARTON BOX (LC-27U7D,DIGISTAR) 887-20047-04A ACCESSORY PALSTIC BAG (ENGLISH FRENCH SPANISH ) 887-21163-P4...
  • Page 47 852-44008-82 SCREW F(+)M4X8-D.Ni 852-44008-82 SCREW F(+)M4X8-D.Ni 615-20453-00 SPEAKER ASS'Y 384-41916-B0 SPEAKER Y10-1601 655-4E301-37 (4-PINS) LEAD WITH HOUSING 808-70240-00 EVA GLUE 75X30X1 851-53008-31 SCREW SJ2825 ST3X8FT D.Zn 868-20453-00 RUBBER WASHER 870-20954-00A SPEAKER BRACKET 667-L27U6-05 KEY BOARD ASS'Y 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 360-10001-00...
  • Page 48 852-43006-81 SCREW F(+) M3*6-DZn 852-43006-81 SCREW F(+) M3*6-DZn 803-10198-00 POWER BOARD TOP COVER 803-10199-00 POWER BOARD BOTTOM COVER 808-7A287-00 INSULATOR (PC) 808-7A288-00 INSULATOR (PC) 852-53006-81 SCREW SJ2830 M3X6-D.Zn 852-53006-81 SCREW SJ2830 M3X6-D.Zn 822-10197-00 D903 INSULATING CAP 　 TO-220A 822-10197-00 INSULATING CAP 　 TO-220A V906 822-10197-00 INSULATING CAP 　...
  • Page 49 459-6310R-00 CERAMIC CAPACITOR DE1510E103Z1K C934 462-2B422-M0V POLYESTER CAPACITOR 250VAC-0.22uF-M C905 462-2B433-K0V POLYESTER CAPACITOR MKP62-275V-0.33uF-K ! C902 462-25447-H1 POLYESTER CAPACITOR CL21-400V-474J-P15(II C918 462-25447-H1 POLYESTER CAPACITOR CL21-400V-474J-P15(II C924 464-DE647-M0 ELECTROLYTIC CAPACITOR CD110H-25V-47uF-M C932 464-DE647-M0 ELECTROLYTIC CAPACITOR CD110H-25V-47uF-M C928 464-DE647-M0 ELECTROLYTIC CAPACITOR CD110H-25V-47uF-M C909 464-DE647-M0 ELECTROLYTIC CAPACITOR CD110H-25V-47uF-M...
  • Page 50 342-39060-30 SMD TRANSISTOR MMBT3906LT1 V904 342-39060-30 SMD TRANSISTOR MMBT3906LT1 V903 353-04310-30 SMD IC LM431ACDR N908 353-12070-10 SMD IC NCP1207DR2 N904 353-27010-10 SMD IC PS2701-1-V N905 353-27010-10 SMD IC PS2701-1-V N907 353-33260-50 SMD IC MC33260D N901 455-22000-H0 SMD RESISTOR RC11-1/8W-0-J R915 455-22000-H0 SMD RESISTOR RC11-1/8W-0-J R944...
  • Page 51 455-31510-H0 SMD RESISTOR RC06J105 R918 456-2468R-C2 SMD CAPACITOR 08052E684Z250BA C904 456-3022H-12 SMD CAPACITOR C2012CH1H220JT C931 456-3039H-12 SMD CAPACITOR C2012CH1H390JT C921 456-3147H-12 SMD CAPACITOR C2012CH1H471JT C926 456-3210H-12 SMD CAPACITOR C2012CH1H102JT C925 456-3222K-B2 SMD CAPACITOR C2012X7R1H222KT C923 456-3310K-B2 SMD CAPACITOR C2012X7R1H103KT C901 456-3310K-B2 SMD CAPACITOR C2012X7R1H103KT C906...
  • Page 52 364-34101-00 4-PINS CONNECTORS TJC3-04A 364-34101-00 4-PINS CONNECTORS TJC3-04A XA10 364-3B1AY-00 12-PINS CONNECTORS TJC10-12A 364-3D1AY-00 10-PINS CONNECTORS TJC10-10A 364-91202-00 S-VIDEO TERMINAL CKX5-2K-2 364-93219-00 AV JACK AV3-14WKD 364-93219-00 AV JACK AV3-14WKD 364-93219-00 AV JACK AV3-14WKD 364-341AY-00 4-PINS CONNECTORS JC10-4A 458-0F001-00 SAW FILTER M9352M Z102 458-07014-00 SAW FILTER M3951M...
  • Page 53 859-11394-00 TV BOARD SHIELD COVER (TOP ) 859-11395-00 TV BOARD SHIELD COVER (BOTTOM ) 742-30005-09 LINE TIE 667-L27U6-40* VIDEO PROCESSING BOARD ASS'Y (SMD AUTOMATIC INSERTION ) 340-00001-0S SMD DIODE LL4148 D401 340-00001-0S SMD DIODE LL4148 D402 340-00001-0S SMD DIODE LL4148 D406 340-00001-0S SMD DIODE LL4148...
  • Page 54 455-12110-H0 SMD RESISTOR FTR0603101JR R402 455-12115-H0 SMD RESISTOR FTR0603151JR R101 455-12133-H0 SMD RESISTOR FTR0603331JR R107 455-12133-H0 SMD RESISTOR FTR0603331JR R553 455-12133-H0 SMD RESISTOR FTR0603331JR R554 455-12133-H0 SMD RESISTOR FTR0603331JR R126 455-12133-H0 SMD RESISTOR FTR0603331JR R405 455-12147-H0 SMD RESISTOR FTR0603471JR R143 455-12168-H0 SMD RESISTOR FTR0603681JR R140...
  • Page 55 455-12310-H0 SMD RESISTOR FTR0603103JR R161 455-12312-H0 SMD RESISTOR FTR0603123JR R144 455-12322-H0 SMD RESISTOR FTR0603223JR R122 455-12339-H0 SMD RESISTOR FTR0603393JR R114 455-12347-H0 SMD RESISTOR FTR0603473JR R302 455-12347-H0 SMD RESISTOR FTR0603473JR R307 455-12347-H0 SMD RESISTOR FTR0603473JR R203 455-12347-H0 SMD RESISTOR FTR0603473JR R206 455-12347-H0 SMD RESISTOR FTR0603473JR R215...
  • Page 56 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C109 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C114 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C122 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C129 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C131 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C205 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C219 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C222 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C225...
  • Page 57 456-3210H-11 SMD CAPACITOR 0603CG102J500BA C604 456-3210H-11 SMD CAPACITOR 0603CG102J500BA C607 456-3210H-11 SMD CAPACITOR 0603CG102J500BA C610 456-3210H-11 SMD CAPACITOR 0603CG102J500BA C426 456-3210H-11 SMD CAPACITOR 0603CG102J500BA C427 456-3210H-11 SMD CAPACITOR 0603CG102J500BA C428 456-3210H-11 SMD CAPACITOR 0603CG102J500BA C429 456-3227H-11 SMD CAPACITOR 0603CG272J500BA C132 477-40211-00 SMD FIXED INDUCTANCE SLF12575T-330M3R2 L403...
  • Page 58 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C302 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C303 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C304 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C312 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C313 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C314 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C220 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C125 464-60510-M02 ELECTROLYTIC CAPACITOR CD110-50V-1uF-M C226...
  • Page 59 464-60447-M02 ELECTROLYTIC CAPACITOR CD110-50V-0.47uF-M C105 464-60447-M02 ELECTROLYTIC CAPACITOR CD110-50V-0.47uF-M C115 462-00215-K02 POLYESTER CAPACITOR CL11-100V-1500PF-K C128 464-6E610-M02 *ELECTROLYTIC CAPACITOR CD110-25V-10uF-M C443 667-L27U6-56A CPU BOARD ASS'Y 667-L27U6-56A* CPU BOARD ASS'Y (SMD ,AUTOMATIC INSERTION ) 340-00001-0S SMD DIODE LL4148 D801 340-00001-0S SMD DIODE LL4148 DD09 340-00289-00 SMD DIODE BAV99LT1...
  • Page 60 353-24320-50 SMD IC24LC32A/SN N802 353-40520-80 SMD IC HEF4052BT NA02 353-43400-30 SMD IC CS4340-KS NA01 353-51600-10 *SMD ICTVP5160-PNP N601 353-61510-10 SMD IC MST6151DA N101 353-64322-60 SMD ICHY57V643220CT-6 (D) N201 353-99330-00 SMD IC SI9933ADY N503 364-T1904-00 SMD 19-PINSHDMI 1775245-2 XH01 364-T3001-00 SMD 30-PINSFF-A1255-WRS XP01 455-10033-H9 SMD RESISTOR NCA4R330JR...
  • Page 61 455-12075-H0 SMD RESISTOR FTR0603750JR RV02 455-12075-H0 SMD RESISTOR FTR0603750JR RV03 455-12075-H0 SMD RESISTOR FTR0603750JR RV01 455-12075-H0 SMD RESISTOR FTR0603750JR RD07 455-12075-H0 SMD RESISTOR FTR0603750JR RD06 455-12075-H0 SMD RESISTOR FTR0603750JR RD05 455-12110-H0 SMD RESISTOR FTR0603101JR R807 455-12110-H0 SMD RESISTOR FTR0603101JR RB03 455-12110-H0 SMD RESISTOR FTR0603101JR R606...
  • Page 62 455-12247-H0 SMD RESISTOR FTR0603472JR RB05 455-12247-H0 SMD RESISTOR FTR0603472JR RB02 455-12268-H0 SMD RESISTOR FTR0603682JR R617 455-12268-H0 SMD RESISTOR FTR0603682JR RD22 455-12310-H0 SMD RESISTOR FTR0603103JR R820 455-12310-H0 SMD RESISTOR FTR0603103JR R815 455-12310-H0 SMD RESISTOR FTR0603103JR R816 455-12310-H0 SMD RESISTOR FTR0603103JR R819 455-12310-H0 SMD RESISTOR FTR0603103JR R821...
  • Page 63 455-12410-H0 SMD RESISTOR FTR0603104JR R615 455-12410-H0 SMD RESISTOR FTR0603104JR RA12 455-12410-H0 SMD RESISTOR FTR0603104JR RA13 455-12410-H0 SMD RESISTOR FTR0603104JR RA14 455-12410-H0 SMD RESISTOR FTR0603104JR RA15 455-12418-H0 SMD RESISTOR FTR0603184JR R801 455-12510-H0 SMD RESISTOR FTR0603105JR R103 455-12510-H0 SMD RESISTOR FTR0603105JR RD24 455-30022-H9 SMD RESISTOR NCA4R220JR RP02...
  • Page 64 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C147 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C146 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C145 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C144 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C149 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C143 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C148 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C121 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C120...
  • Page 65 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C640 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C601 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C609 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C606 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C603 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C608 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C605 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C611 456-2410M-C1 SMD CAPACITOR 06032E104M250BA C607...
  • Page 66 456-2510R-C2 *SMD CAPACITOR 08052E105Z250BA C620 456-2510R-C2 *SMD CAPACITOR 08052E105Z250BA C624 456-2510R-C2 *SMD CAPACITOR 08052E105Z250BA C630 456-2510R-C2 *SMD CAPACITOR 08052E105Z250BA C635 456-3015H-11 SMD CAPACITOR 0603CG150J500BA C215 456-3015H-11 SMD CAPACITOR 0603CG150J500BA C614 456-3030H-11 SMD CAPACITOR 0603CG300J500BA C806 456-3030H-11 SMD CAPACITOR 0603CG300J500BA C807 456-3033H-11 SMD CAPACITOR C1608CH1H330JT C107...
  • Page 67 477-90006-00 SMD FILTER LFA20-2A1E474M ZD02 666-12008-00 SMD FERRITE BEAD STBH2012-501PT L805 666-12008-00 SMD FERRITE BEAD STBH2012-501PT L804 666-12008-00 SMD FERRITE BEAD STBH2012-501PT L803 666-12008-00 SMD FERRITE BEAD STBH2012-501PT L806 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L802 666-13207-00 SMD FERRITE BEAD STPB3216-380PT L801 666-13207-00 SMD FERRITE BEAD STPB3216-380PT...
  • Page 68 464-6D710-M02 ELECTROLYTIC CAPACITOR CD110-16V-100uF-M C521 464-6D710-M02 ELECTROLYTIC CAPACITOR CD110-16V-100uF-M C523 464-6D710-M02 ELECTROLYTIC CAPACITOR CD110-16V-100uF-M C532 464-6D722-M02 ELECTROLYTIC CAPACITOR CD110-16V-220uF-M C525 464-6D722-M02 ELECTROLYTIC CAPACITOR CD110-16V-220uF-M C650 464-6D722-M02 ELECTROLYTIC CAPACITOR CD110-16V-220uF-M C652 464-6D747-M02 ELECTROLYTIC CAPACITOR CD110-16V-470uF-M C112 464-6D747-M02 ELECTROLYTIC CAPACITOR CD110-16V-470uF-M C801 464-6D747-M02 ELECTROLYTIC CAPACITOR CD110-16V-470uF-M C110...
  • Page 69 859-11396-00 DIGITAL BOARD SHIELD COVER ( TOP ) 859-11397-00A DIGITAL BOARD SHIELD COVER ( BOTTOM ) 855-A0053 HEXAGONAL SCREW M3X7 301-RL27U6-32MA RC-R32M-0AREMOTE CONTROL UNIT (DIGISTAR)
  • Page 70 LCD-S.M.-U#_Ver.1.0...
