TRINITY 6-TIER NSF WIRE SHELVING RACK W/ WHEELS
MODEL # TBFZ-0945/TBTZ-0945/TBFPBA-0945/TBTPBA-0945
Important / Important / Importante
FOR 3D ASSEMBLY INSTRUCTIONS
Intelligent Instructions
Directives intelligentes
POUR DES DIRECTIVES D'ASSEMBLAGE 3D
Instrucciones Inteligentes
PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGERL'APPLICATION GRATUITE| DESCARGUE LA APLICACIÓN GRATUITA
Advertisement
Table of Contents
Related Manuals for Trinity TBFPBA-0945
Summary of Contents for Trinity TBFPBA-0945

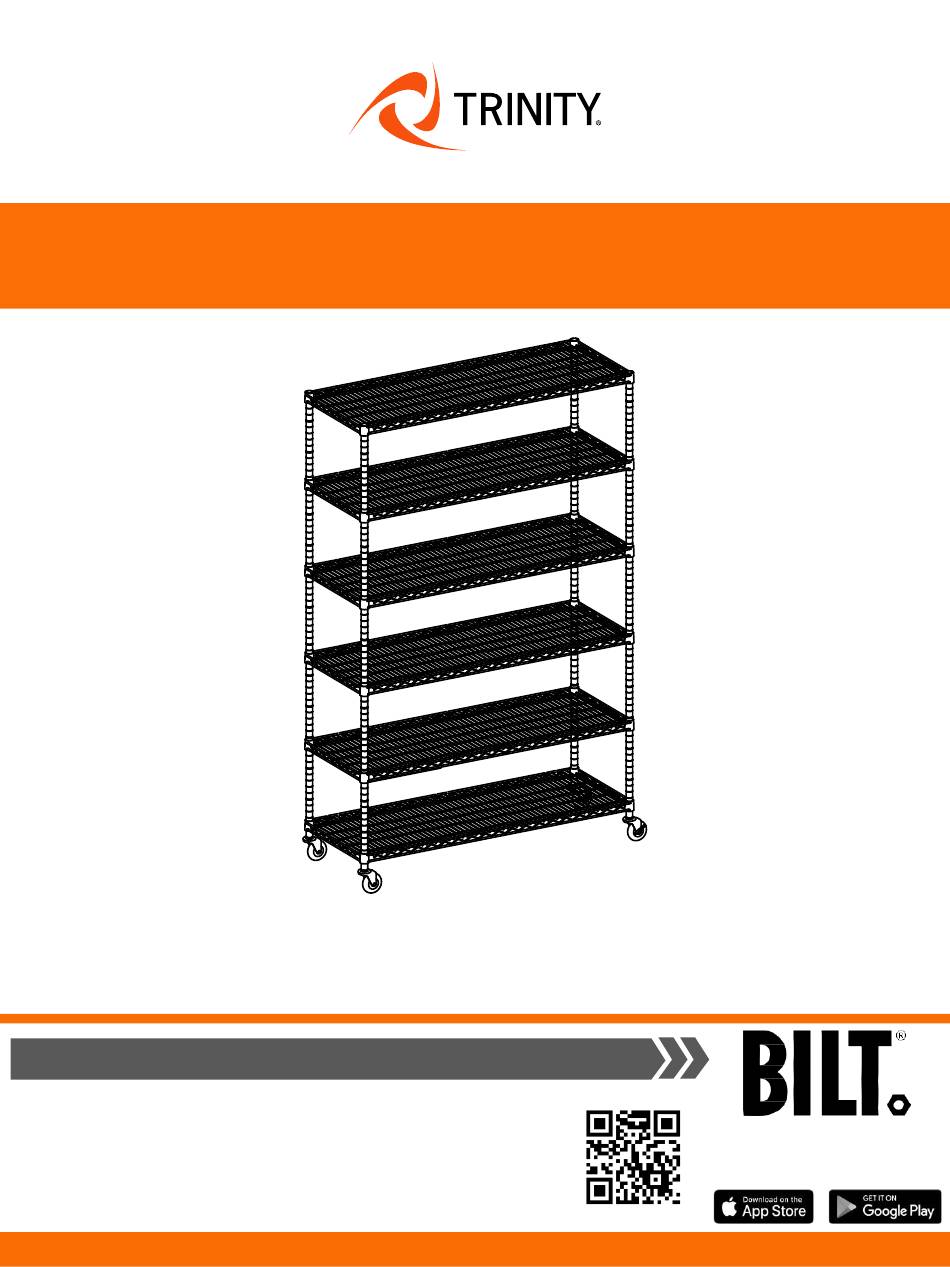

- Page 1 OWNER’S MANUAL TRINITY 6-TIER NSF WIRE SHELVING RACK W/ WHEELS MODEL # TBFZ-0945/TBTZ-0945/TBFPBA-0945/TBTPBA-0945 Important / Important / Importante FOR 3D ASSEMBLY INSTRUCTIONS Intelligent Instructions Directives intelligentes POUR DES DIRECTIVES D’ASSEMBLAGE 3D Instrucciones Inteligentes PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D DOWNLOAD THE FREE APP | TÉLÉCHARGERL’APPLICATION GRATUITE| DESCARGUE LA APLICACIÓN GRATUITA...
-
Page 2: Parts List
PARTS LIST Your TRINITY 6-Tier NSF Wire Shelving Rack w/ Wheels should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. - Page 3 (8) SLIP SLEEVES (D) on BOTTOM POLES (B) are at the same level. Note: For stability, the lowest SLIP SLEEVES (D) should be installed no higher than the 3rd indentation from the caster end of BOTTOM POLES (B). © 2023 TRINITY - 800.985.5506...
- Page 4 POLES (B) and assemble one more SHELF (C). Note: • The level side of SHELF (C) is the TOP side (the TRINITY logo on the corner cylinders should be right-side up.) • Use a rubber mallet, if needed, to secure SHELF (C).
- Page 5 Push in (4) END CAPS (J) into the tops of BOTTOM POLES (B). Place (8) SLIP SLEEVES (D) on the last indentation of (4) BOTTOM POLES (B) and place SHELF (C) corner cylinders onto SLIP SLEEVES (D) to complete one 3-Tier Rack with Casters. © 2023 TRINITY - 800.985.5506...
- Page 6 POLES (A) and screw in THREADED INSERTS (I). Screw (4) FEET LEVELERS (H) into THREADED INSERTS (I). STEP 6 Following STEPS 1 – 3, assemble (3) SHELVES (C) onto TOP POLES (A) to complete another 3-Tier Rack with Feet Levelers. © 2023 TRINITY - 800.985.5506...
-
Page 7: Service Parts List
SERVICE PARTS LIST – TBFZ-0945/TBTZ-0945 (Chrome) TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description XBK-23-004-2517 End Cap XBK-01-011-2543 Slip Sleeve ZSV-04-006-3600 Top Pole XXX-97-002-0001 Wrench ZSV-01-013-2523 Pole Connector ZSV-99-007-4010 Non-locking Caster ZSV-04-042-3600 Bottom Pole... - Page 8 SERVICE PARTS LIST – TBFPBA-0945/TBTPBA-0945 (Black Anthracite) TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description XBK-23-004-2517 End Cap XBK-01-011-2543 Slip Sleeve ZSV-04-006-3600 Top Pole XXX-97-002-0001 Wrench ZSV-01-013-2523 Pole Connector ZSV-99-007-4010 Non-locking Caster ZSV-04-042-3600 Bottom Pole...
-
Page 9: Care And Maintenance
Ensure your flooring can bear the weight of the rack before rolling the rack across your flooring. CARE AND MAINTENANCE • Avoid harsh, abrasive cleaners, and other corrosive chemicals. • The chrome color version (TBFZ-0945/TBTZ-0945) is not recommended for outdoor use. © 2023 TRINITY - 800.985.5506... -
Page 10: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a TRINITY 6-Tier NSF Wire Shelving Rack w/ Wheels. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com. -
Page 11: Year Limited Warranty
Product which shall not be greater than the amount of the purchase price of the Product, at the option of Trinity, during the warranty period. All replaced parts and Products become the property of Trinity and must be returned to Trinity. - Page 12 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 5:00 AM –...
