RIVI EV35 Quick Setup Manual

EV35 Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how to
field-install the EV35 access point (AP). For detailed information on
planning the installation, performing a site survey, and operating the
EV35.
WARNING! Only trained and qualified personnel should be allowed to
install, replace, or service this equipment.
WARNING! Installation of this equipment must comply with local and
national electrical codes.
CAUTION! Form a 80-mm to 130-mm (3-in. to 5-in.) drip loop in any
cable that is attached to the AP or the building. This will prevent water
from running along the cable and entering the AP or the building where
the cable terminates.
CAUTION! Be sure that grounding is available and that it meets local
and national electrical codes. For additional lightning protection,
use lightning rods and lightning arrestors.
CAUTION! Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
CAUTION! RIVI strongly recommends that you wear eye
protection before mounting the EV35.
Required Hardware and Tools
• No. 2 Phillips screwdriver
• Small flat-blade screwdriver
• Wide flat-blade screwdriver
• Torque wrench or torque screwdriver with sockets
• Long-nose pliers
• Electrical wire stripping and terminal crimping pliers
• Pipe or pole, or a sturdy flat surface
• Electric drill with drill bits and customer-supplied wall anchors,
flat washers, and hex nuts for flat-surface mount
© 2022 RIVI Networks Ltd. All rights reserved. Trade
Mark No: UK00003636458 Published Jan 2022,
Part Number 800-72972-301 Rev A

Package Contents

A complete EV35 field installation package includes all of the following
items:
• EV35 Access Point
• M25 data cable gland
• Ground wire with lug
• Pole/Wall Mount Bracket Kit
• Two steel pipe clamps
• Declaration of Conformity/Regulatory
Statement

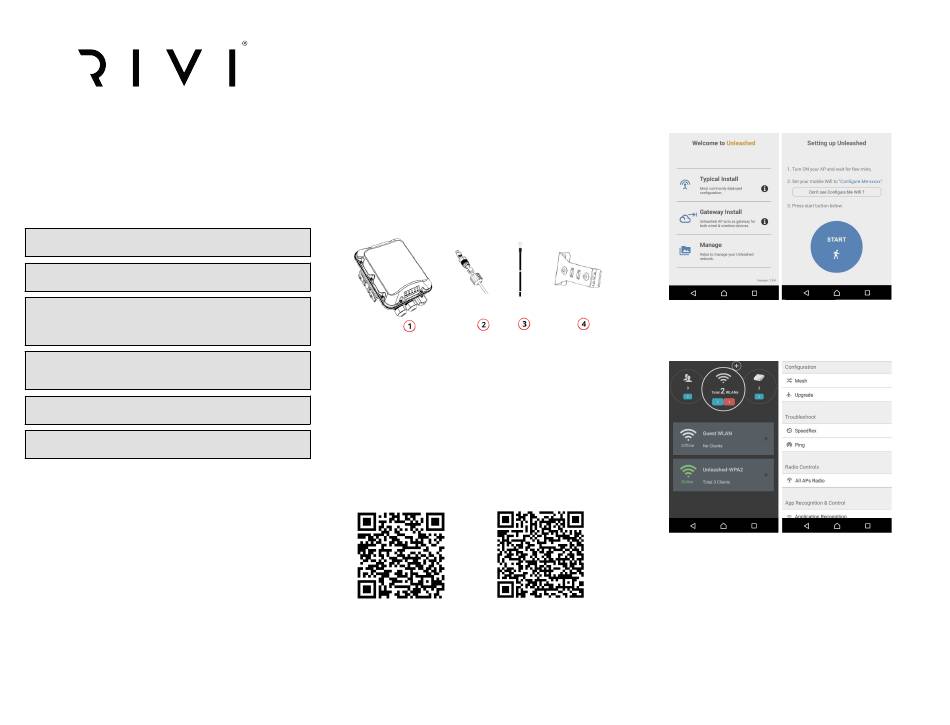

FIGURE 1 EV35 Package Contents
1. EV35 Access Point 3. Ground wire with lug
2. M25 data cable gland 4. Pole/Wall Mount Bracket Kit

Unleashed Network Configuration

Setup Using the Unleashed Mobile App

To perform setup using the Unleashed Mobile App, download the iOS
or Android app from the app store.
Scan here for IOS app Scan here for Android app
1. As soon as the Unleashed AP is powered on and connected to the
local network, it boots up and begins broadcasting a temporary
unencrypted WLAN named "Configure.Me-[xxxxxx]" from both
radios.
2. Using your client's Wi-Fi connection settings, select and associate
to the "Configure.Me-[xxxxxx]" WLAN.
3. Launch the app, and follow the on-screen instructions to configure
your Unleashed network(s).
FIGURE 2 Unleashed Mobile App for iOS and Android
FIGURE 3 Configuring Unleashed from the Mobile App

Setup Using a Web Browser

1. As soon as the Unleashed AP is powered on and connected to the
local network, it boots up and begins broadcasting a temporary
unencrypted WLAN named "Configure.Me-[xxxxxx]" from both
radios.
2. Using your client's Wi-Fi connection settings, select and associate
to the "Configure.Me-[xxxxxx]" WLAN.
3. Launch a web browser and enter the following into the browser's
URL bar: unleashed.rivinetworks.com, and press Enter.
4. You will be redirected to the Setup Wizard. Complete the steps in
the Setup Wizard and click Finish.
Page 1 of 4
