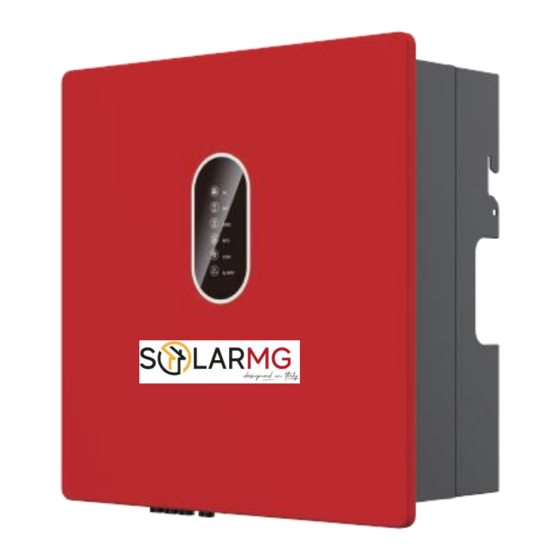

SOLARMG SG-5KWHBT User Manual

Three phase hybrid inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
REV.1 – Preliminary
THREE PHASE HYBRID INVERTER
5KW/6KW/8KW/10KW
User Manual
About This Manual
This manual describes the installation, connection, the use of APP, commissioning and maintenance
etc. of three phase hybrid inverter. Please first read the manual and related documents carefully before
using the product and store it in a place where installation, operation and maintenance personnel can
access it at any time. The illustration in this user manual is for reference only. This user manual is subject
to change without prior notice. (Specific please in kind prevail.)
Target Group
Three phase hybrid inverters must be installed by professional electrical engineers who have obtained
relevant qualifications.
Scope
This manual is applicable to following inverters:
SG-10KWHBT
SG-5KWHBT
SG-6KWHBT
Conventions
The following safety instructions and general information are used within this user manual.
Indicates an imminently hazardous situation which, if not correctly
DANGER
followed, will result in serious injury or death.
Indicates a potentially hazardous situation which, if not correctly
WARNING
followed, will result in serious injury or death.
Indicates a potentially hazardous situation which, if not correctly
CAUTION
followed, could result in moderate or minor injury.
Indicates a potentially hazardous situation which, if not correctly
NOTICE
followed, could result in equipment failure to run, or property
damage.
Call attention to important information, best practices and tips:
NOTE
supplement additional safety instructions for your better use of the
Three phase hybrid inverter to reduce the waste of you resource.
