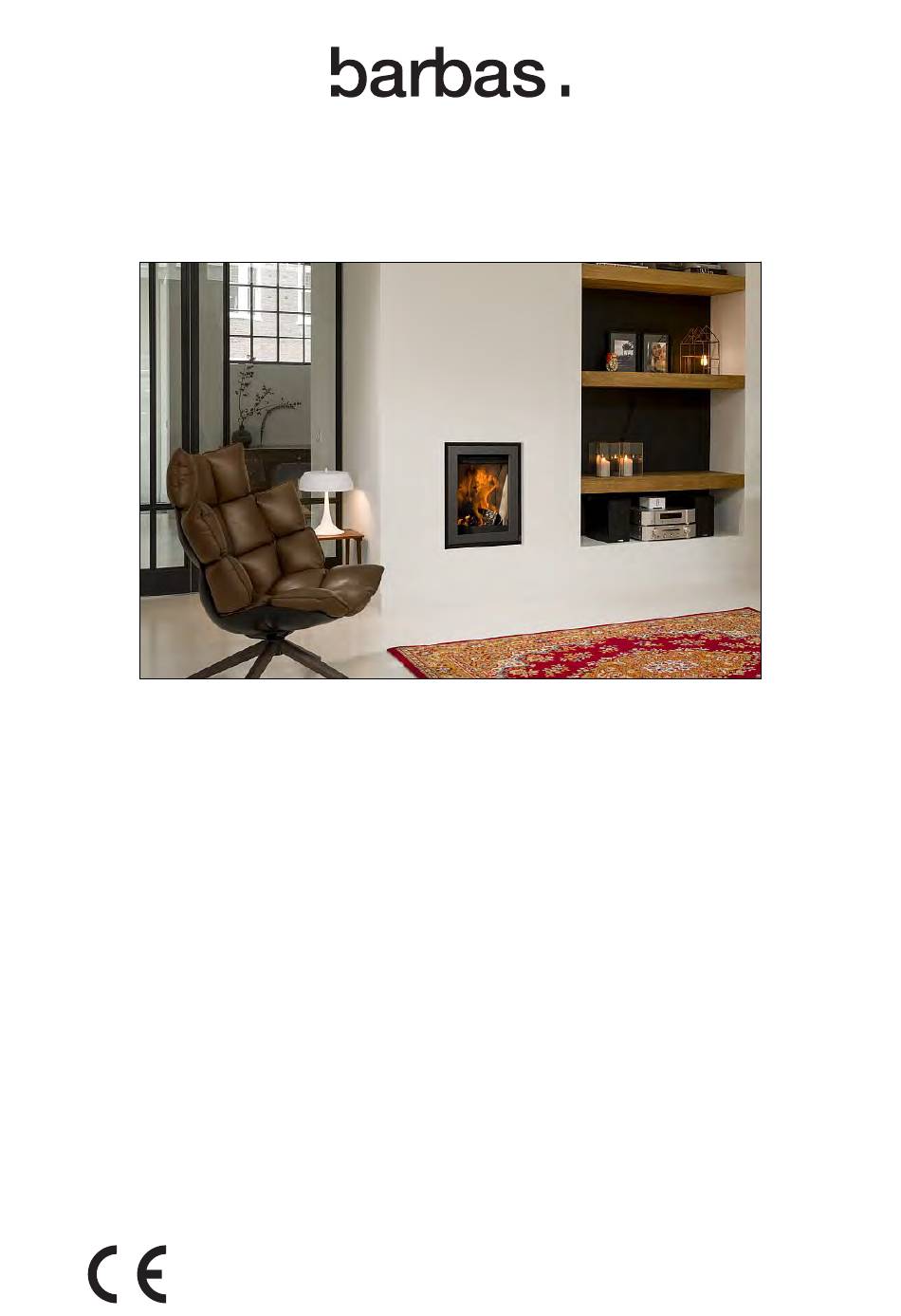

- Page 1 User manual Unilux-7 40 Serial number: Production date:...
- Page 2 Barbas Bellfires BV. This document could contain technical inaccuracies or typographical errors. Barbas Bellfires BV reserves the right to revise this document from time to time in the contents thereof.
-
Page 3: Table Of Contents
How to work with this document....................5 Warnings and cautions used in this document................5 Related documentation........................5 Description....................6 Overview of the Unilux-7 40......................6 Intended use..........................8 Safety.......................9 Safety instructions for operation....................9 Safety instructions with regard to the environment..............10 Fuel...................... -
Page 4: Declaration Of Performance
Name, registered trade name or registered trade mark Barbas Bellfires BV; Hallenstraat 17; 5531 AB Bladel; The Netherlands and contact address of the manufacturer as required pursuant to Article 11(5) -
Page 5: About This Document
Operate the appliance • Do basic maintenance This document refers to the Unilux-7 40 as 'the appliance'. This document is an essential part of your appliance. Read it carefully before you do work on the appliance. Keep it in a safe place. -
Page 6: Description

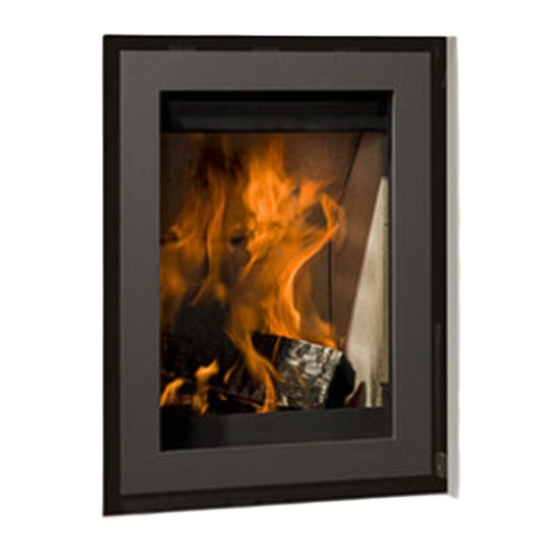

Description Description Overview of the Unilux-7 40 The Unilux-7 40 is available with a screened glass door or with a steel frame door. Door handle Ash tray (under the grate) Glass Ceramic panels Primary air inlet - Top flue connector... - Page 7 Lower baffle (ceramic) Air wash inlet Connection for external combustion Upper baffle (steel) Figure 2. Bottom view of the Unilux-7 40 with screened door Connection for external combustion Rear flue connector Figure 3. Rear view of the Unilux-7 40 Unilux-7 40...
-
Page 8: Intended Use
The appliance is intended for intermittent use and is not intended for continuous use. The appliance is intended to heat the room by direct heating. It is not allowed to connect the appliance to a central-heating installation. Unilux-7 40... -
Page 9: Safety
Note: • Inspect and clean the appliance, the chimney and the external combustion air supply by a Barbas dealer minimum every year. • Do not use the appliance continuously. The intended use is as intermittent appliance. Unilux-7 40... -
Page 10: Safety Instructions With Regard To The Environment
Dispose of ceramic heat-resistant glass as household waste. Do not dispose of ceramic heat-resistant glass in a glass recycling container. • Dispose of an obsolete appliance according to instructions of the authorities or the fitter. • Obey the local regulations. Unilux-7 40... -
Page 11: Fuel
The above listed amount burns for approximately 45 minutes. This time can be different, dependent on the chimney draught and the position of the combustion air valve. The amount of fuel specified here should not be exceeded, overloading can cause excess smoke. Unilux-7 40... -
Page 12: Operation
Remove document and components from the combustion chamber. Make sure that the control lever moves easy. Make sure that the ash tray is empty. Make sure that all package material, stickers, etc, have been removed from the vicinity of the appliance after installation. Unilux-7 40... -
Page 13: First Use Of The Appliance
If applicable, open the valve in the external combustion air supply line. If applicable, open the chimney valve completely. Open the door of the appliance. Put minimum 4 wood logs crosswise on the floor of the combustion chamber. Unilux-7 40... - Page 14 After approximately 20 minutes the wood logs burn. Dependent on the quality of the chimney the wood logs burn for approximately 1 to 1.5 hours. Do not open the door of the appliance before the last flames have almost disappeared. Unilux-7 40...
-
Page 15: Reload With Fuel
Reload the appliance with 2 wood logs, put flat on the combustion chamber floor. Use the recommended amount of fuel. Refer to chapter Close the door. After ignition of the fuel, move the control lever to the left to a position that gives a quiet burning fire. Unilux-7 40... -
Page 16: Control The Burn Process
Continuous firing with the primary air inlet fully open (control lever in the far right position) causes a white-hot fire that can damage the appliance. Use the primary air only during the first fuel load and for ignition of a new fuel load. Unilux-7 40... -
Page 17: Increase The Flue Draught
Unscrew the socket screw. Make sure the nut stays attached to the socket screw. Push up (1) the front of the heat shield and pull it forward (2) and move downward to a vertical position (3). Remove the upper baffle from the appliance. Unilux-7 40... -
Page 18: General Firing Tips
• After the first load, do not overload the appliance with fuel. Refer to for the recommended amount of fuel. Too much fuel leads to incomplete combustion, soot formation and a chance of a chimney fire. Unilux-7 40... -
Page 19: Maintenance
Clean the glass with a soft cloth, a sponge or paper. Use glass cleaner or ceramic hob cleaner. Make sure that the glass is dry. Water droplets can leave a mark on the glass. Note: Damaged or broken glass must be replaced before the appliance can be used again. Unilux-7 40... -
Page 20: Troubleshooting
• Do the recommended ignition when the door of the combus- procedure. Refer to chapter tion chamber is open 6.3.1 • Remove the break out strip from the upper baffle. Refer to 6.3.4 chapter • Contact your installer. Unilux-7 40... - Page 21 The underpressure in the in- Reduce the underpressure, for ex- stallation room is too high ample by opening a ventilation opening in the installation room. Unilux-7 40...
-
Page 22: Technical Data
Technical data Technical data Name Barbas Model Unilux-7 40 Tested in accordance with EN 13229:2001-A2:2004 EN 16510-1 annex D, E, F Energy efficiency index (according EU 2015/1186) Energy efficiency class Fuel • Wood logs • Wood briquettes (without binder) Nominal fuel load 1.3 kg... -
Page 23: Warranty Terms
Complaints will only be accepted if they are reported to the Barbas dealer, together with the serial number of the Barbas appliance which is stated on the front of the manual. In addition, the original receipt (invoice, receipt, cash receipt) showing the date of purchase must also be submitted. - Page 24 Article 5: Warranty period This warranty will only be granted during the warranty period. The body of the Barbas appliance is guaranteed for a period of 10 years against construction and/or material faults, starting from the moment of purchase. For other parts of the Barbas appliance, a similar warranty applies from the moment of purchase for a period of two years.
- Page 25 Warranty Terms Unilux-7 40...
- Page 26 Warranty Terms Unilux-7 40...
- Page 27 Warranty Terms Unilux-7 40...
- Page 28 Your Barbas dealer 001 - 25.03.2021 - 351074...
