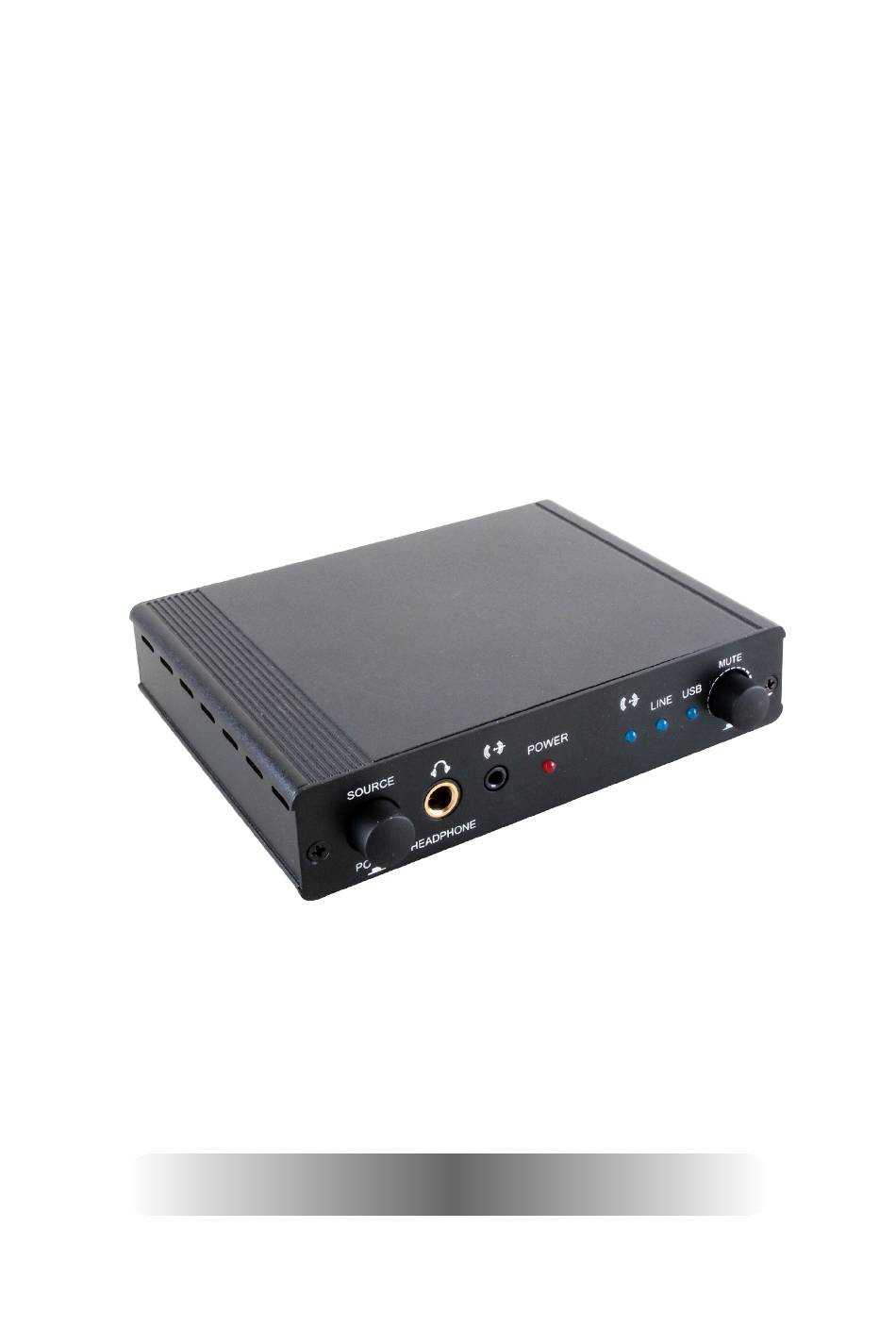

- Page 1 Globalmediapro Fantail HA-U1 USB to Analog Audio Converter Operation Manual Operation Manual...
-
Page 2: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. RS-232 control ........5 7.1 RS-232 Protocol .........5 7.2 RS-232 Command ......6 8. -
Page 3: Introduction
1. INTRODUCTION The Audio Center is designed to allow multiple audio sources to be controlled, switched and output to a variety of audio equipment. With its 3 audio inputs and 2 audio outputs(including a 6.3mm headphone output) you can integrate and convert USB/Line in audio source to LPCM 2CH output synchronously to Line out and 6.3mm headphone. -
Page 4: Features
5. FEATURES • Supports Digital to Analog audio Conversion (DAC) • Supports USB sampling rate up to 192kHz • Synchronous output sound on both Line out and 6.3mm headphone • Supports RS-232 controls • Elegant design and easy to install/using •... -
Page 5: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel SOURCE MUTE POWER LINE USB POWER HEADPHONE POWER/SOURCE Select: Press the wheel to turn on the device or to set it to standby mode. Turn the wheel Left/Right to select input audio source (3.5mm Line- level/ Line in/ USB), the LED will illuminate accordingly with selected input audio source. -
Page 6: Rear Panel
6.2 Rear Panel DC 5V LINE IN LINE OUT SERVICE DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to an AC outlet. RS-232: Connect 3.5mm D-Sub 9 pin adaptor cable to PC/Notebook for RS-232 control. -
Page 7: Rs-232 Control
7. RS-232 CONTROL 7.1 RS-232 Protocol Remote Control HA-U1 Assignment Assignment ► ◄ Baud Rate: 19200 bps Data bit: 8-bits Parity: None Stop Bit: 1... -
Page 8: Rs-232 Command
7.2 RS-232 Command Command Description PORT 00 Switch Front In PORT 01 Switch Line In PORT 02 Switch USB In VOL 00 Volume controller VOL -(01---160) Volume controller POWER 00 Power off POWER 01 Power on MUTE 00 Mute off MUTE 01 Mute on FIX 00... - Page 9 Display all available commands Ext: Support UART commands as list commands : Description PORT 00: Front In PORT 01: Line In PORT 02: USB In POWER 00: POWER OFF POWER 01: POWER ON MUTE 00: MUTE OFF MUTE 01: MUTE ON FIX 00: FIX OFF FIX 01: FIX ON HPR 00: 16_OHM...
-
Page 10: Connection Diagram
8. CONNECTION DIAGRAM Stereo Analog Output Active Speakers DC 5V LINE IN LINE OUT SERVICE CD Player Stereo Analog Input Headphone Output SOURCE MUTE POWER LINE USB POWER HEADPHONE Line-level Input Smartphone or MP3 Player... -
Page 11: Specifications
9. SPECIFICATIONS Input port 1 x 3.5Ø Line in, 1 x R/L RCA, 1 x USB (Type B), 1 x 3.5mm 9pin (RS-232), Output port 1 x L/R (Analog Stereo 2RCA), 1 x 6.3mm Headphone Audio Input/Output LPCM 2CH Stereo Input/Output Level 2 Vrms ±...
