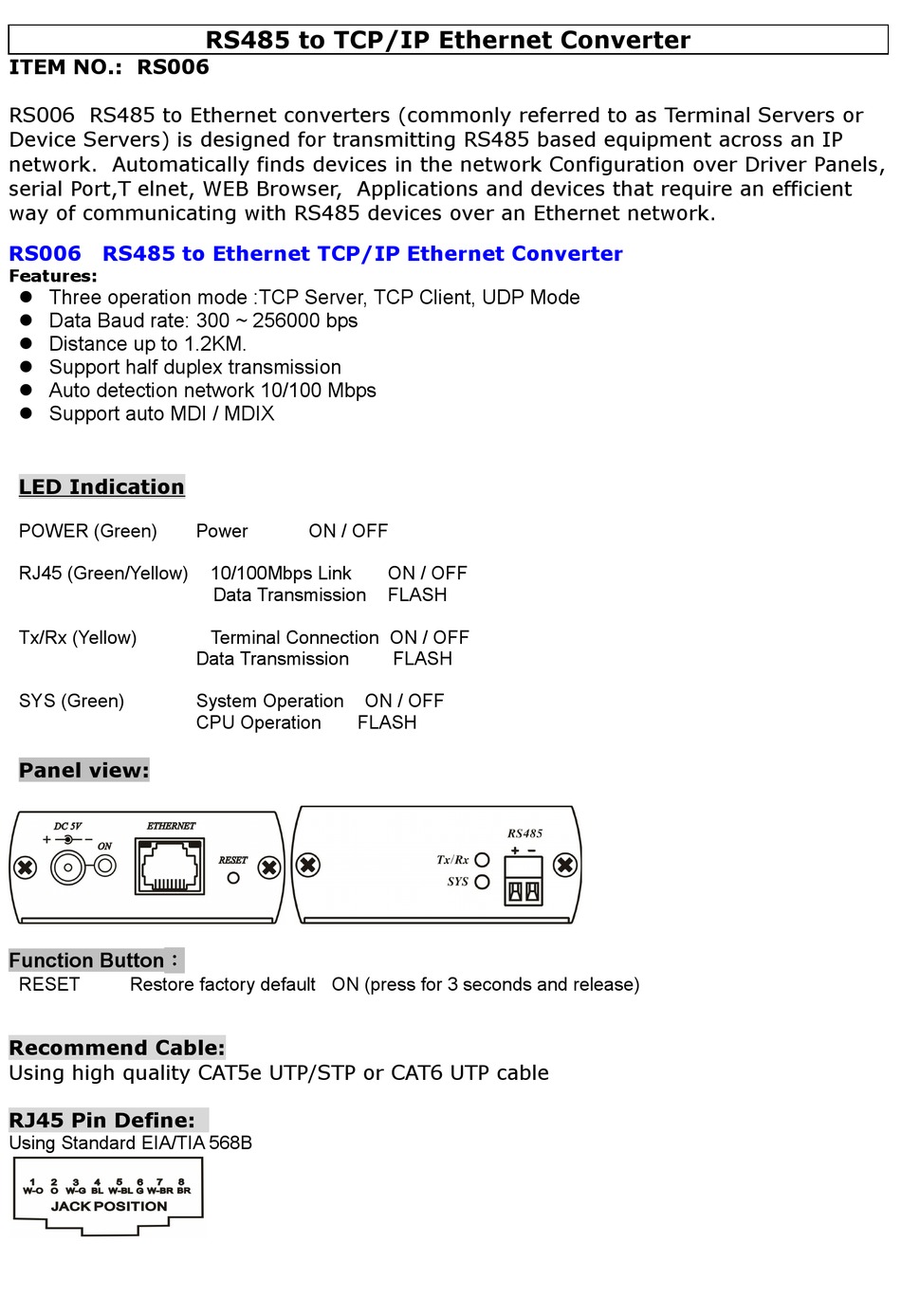

Globalmediapro RS006 Quick Start Manual

ITEM NO.: RS006
RS006 RS485 to Ethernet converters (commonly referred to as Terminal Servers or
Device Servers) is designed for transmitting RS485 based equipment across an IP
network. Automatically finds devices in the network Configuration over Driver Panels,
serial Port,T elnet, WEB Browser, Applications and devices that require an efficient
way of communicating with RS485 devices over an Ethernet network.
RS006 RS485 to Ethernet TCP/IP Ethernet Converter

Features:

 Three operation mode :TCP Server, TCP Client, UDP Mode
 Data Baud rate: 300 ~ 256000 bps
 Distance up to 1.2KM.
 Support half duplex transmission
 Auto detection network 10/100 Mbps
 Support auto MDI / MDIX

LED Indication

POWER (Green)
RJ45 (Green/Yellow)
Tx/Rx (Yellow)
SYS (Green)

Panel view:

Function Button：
RESET Restore factory default ON (press for 3 seconds and release)

Recommend Cable:

Using high quality CAT5e UTP/STP or CAT6 UTP cable

RJ45 Pin Define:

Using Standard EIA/TIA 568B
RS485 to TCP/IP Ethernet Converter
Power ON / OFF
10/100Mbps Link
Data Transmission
Terminal Connection ON / OFF
Data Transmission
System Operation ON / OFF
CPU Operation FLASH
ON / OFF
FLASH
FLASH
