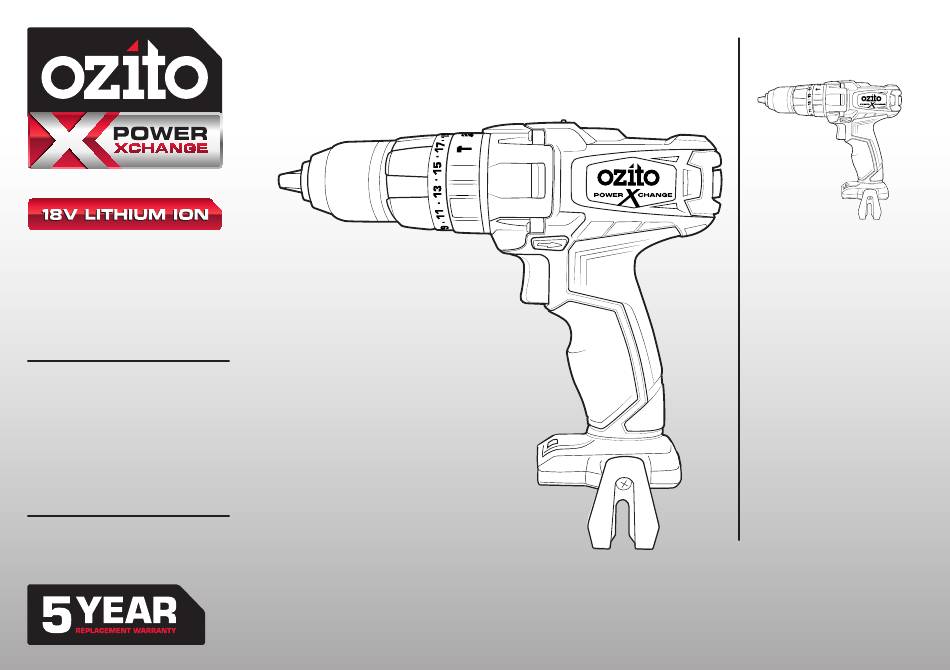

COMPACT
HAMMER DRILL
INSTRUCTION MANUAL
SPECIFICATIONS
Input:
18V
Chuck Size:
13mm Keyless
No Load Speed:
0-350 / 0-1,250/min
Impact Rate:
0-5,250 / 0-18,750bpm
Torque Setting:
18
Max. Torque:
40Nm
Weight:
1.1kg
ozito.com.au
WHAT'S IN THE BOX
Cordless Hammer Drill
Battery & Charger
sold separately
PXHDS-301
