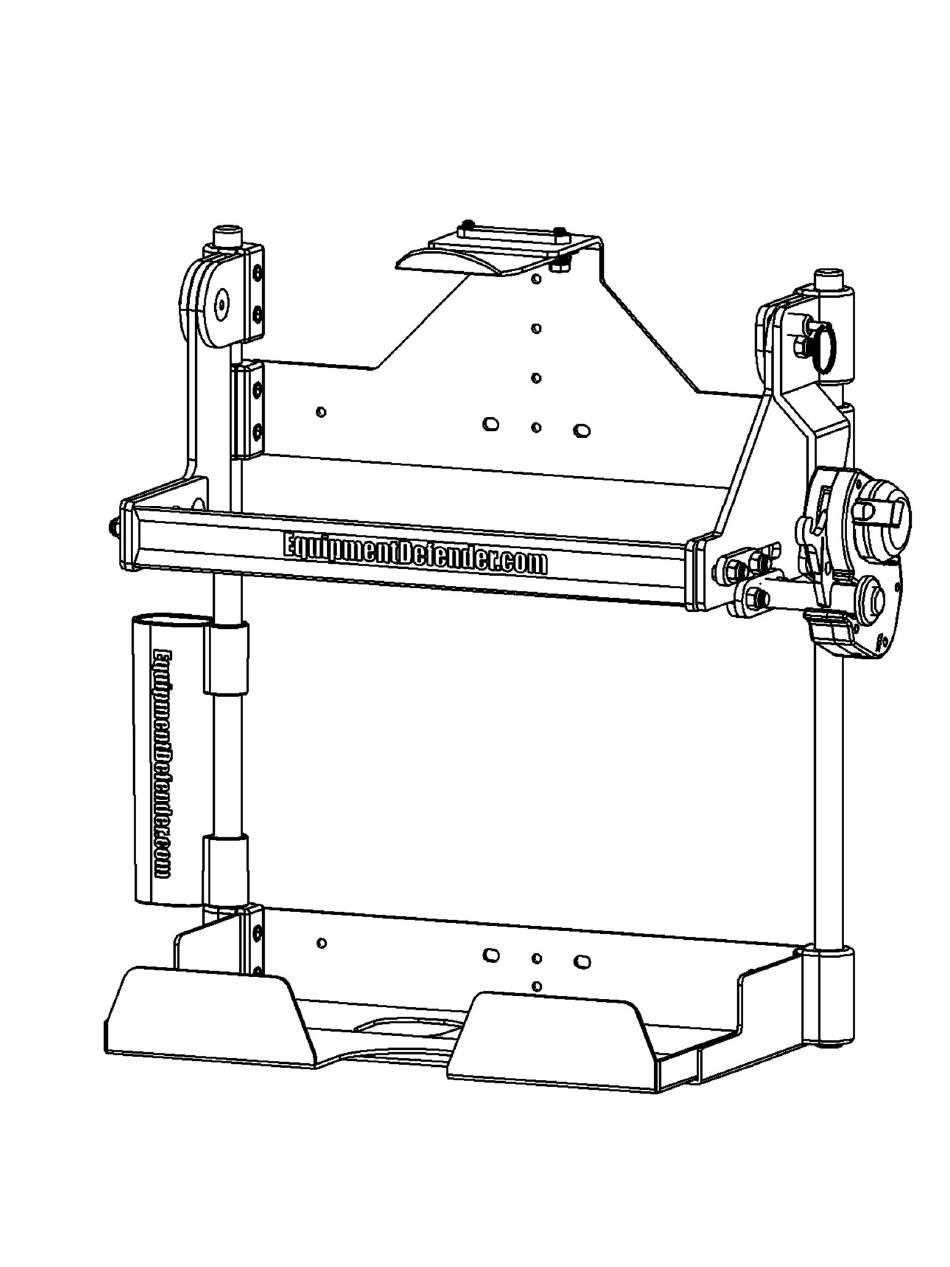

- Page 1 Equipment Defender Backpack Sprayer rack Assembly Instructions Patents Pending EquipmentDefender.com...
- Page 2 Make sure all set screws are VERY tight. • Note: If you wish to achieve maximum security screw heads can be filled with epoxy. • Step One Straight Steel Rods 1. Slide the wand holder onto one of the steel rods. The holder fits tightly onto the rod, dish soap helps Set screws slide it on.
- Page 3 Make sure all set screws are VERY tight. • Note: If you wish to achieve maximum security screw heads can be filled with epoxy. • Step Four Install part D onto part E Part E Tighten the bolts then install the nuts. Latch Rod Use hardware packet “Latch Rod”...
- Page 4 Mounting The Rack On Open Trailers Adjust the rack to fit the sprayer securely AFTER mounting. (See Adjusting the rack to fit the backpack sprayer.) 1. Set the rack onto the trailer rail in the desired location and mark the hole location, drill with a 27/64 drill bit.
- Page 5 Adjusting the rack to fit your backpack sprayer Adjust the rack so the blower fits in as tight as possible. 1. Set the sprayer into the rack to the make adjustments. 2. The rack must be adjusted to fit your sprayer securely.
- Page 6 Pump handle outside of locking assembly Set the sprayer into the rack to make the adjustments. Wand Holder Pump handle inside of locking assembly...
- Page 7 Open Trailer Mounting Post (sold separately) This mounting post is a great option for trailers with weak top rails. Racks bolt on top Bolts through top rail Post can be cut to desired length, but it must stick up above the rail at least 4 inches Bolts to trailer deck Round Rail Brackets (sold separately)
- Page 8 Changing the lock Equipment Defender offers a commination lock (sold separately.) 1. Remove the screws that hold the two sides of the lock housing together. This will require a tamper resistant tip hex wrench (included) 2. Remove the existing lock.
